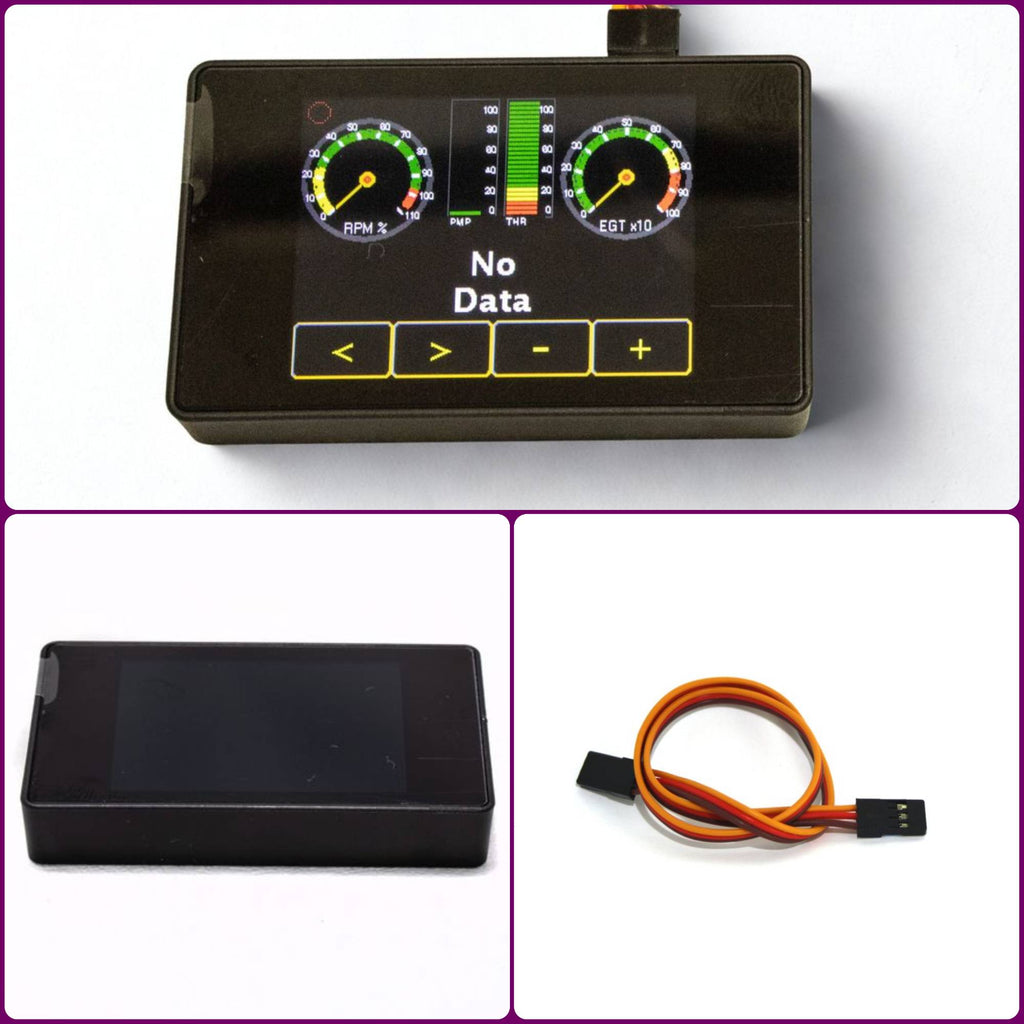

Xicoy Color Data Terminal works with Electron Retracts HDT25
For Xicoy devices including FADEC ecus with servo lead connector.
Can be installed permanently on board.
2" Color capacitive touchscreen for perfect reading from dark to normal day conditions.
USB connector for data recording and firmware upgrade, plus an internal memory to store the last 60 minutes of engine run time.
Besides the usual functions of our current data terminal, it allows an easu reading by presenting the data in full color and using graphic gauges. Also includes dedicated screens for radio checking, last shutdown cause and other special turbine operations.
The most innovative and useful function is the internal recorder/playback function.
The terminal continuously stores all the data received from the ecu, keeping in its permanent memory all the data of last 60 minutes of engine run. After the flight, the terminal can be pulled out of the plane and, without connecting to the ecu, just using an 5-10V battery, the data stored can be played back in real time, same presentation as if the engine was running.
Playback mode can be still, forward or reverse, speed x1, x 10 and x100 in both directions, so that would be easy to investigate any issue at the field without the need of a computer or any other type of reader.
This data, including all engine parameters, can be downloaded to a computer through USB-C cable, where it can be read using a text editor.
Also can be sent to engine manufacturer to be studied, and changes uploaded back to the ecu.
It is compatible with all xicoy ecus that use the 3 wire servo lead (Kingtech, Wren, JetsMunt, JetCentral Powerpac, etc). Firmware can be upgraded trough the USB, so the compatibility with new ecus and future functions is assured.
- Weight: 24 g
- Size 65 x 39.5 x 11mm
Please Note: This Terminal is also able to be used to program Electron Retact Controllers
