Description

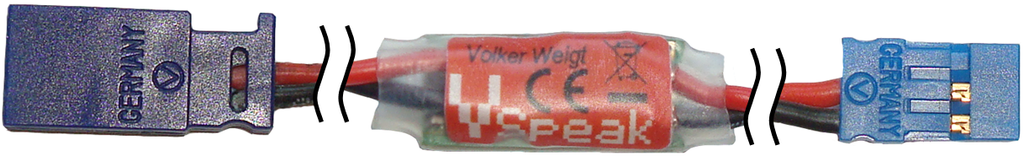

Vspeak Magnet Switch 25A-UNI-Blue-Line
The Magnetswitch is a replacement for mechanical switches. Since there are no moving parts, It is suitable for all kinds of models and immune to vibrations.
Since the switch is operated by a magnet, it can be placed hidden inside the model.
Due to the small size and the light weight, the Magnetswitch is suitable for planes, especially sleek models.
You can not only switch the RX battery, but also the flight pack of brushless ESCs or single BECs with max. 3S LiPo and a maximum permanent current of 25A.
The positive terminal is switched.
The "ON" position condition is displayed with a LED.
The magnetic switch is available in two types of connection, these differ in the current carrying capacity:
-
-
with silicone-cable for direct soldering
-
max. switching current: 25A permanent / 60A burst
-
-
-
Plug and Play (UNI/Futaba male - UNI/female)
-
max. switching current - only limited by the connectors: 3A permanent / 5A for 2min/ 8A burst
-
Please Note: A optional external Blue LED is available.
Please see the Download and Video for more information
Supplied with Magnet
