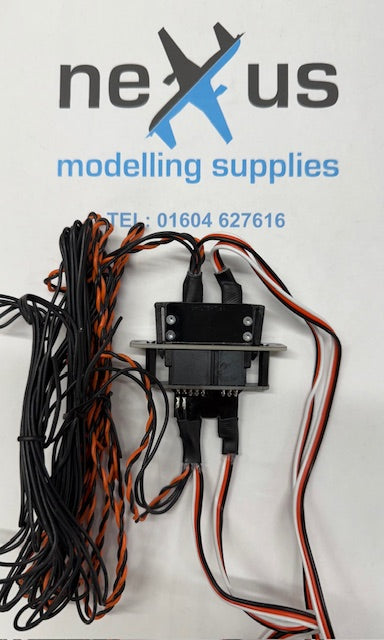

UniLight Locking Cable Connection, 6 Primary (2 Servos) 4 Secondary Pins (Gear & Brake) Assembled With Cable 1 Pair (Side), M/F CABLE-6P4S
Ideal for Jets as this offers 2 servos with redundancy Plus Gear & Brakes per wing.
The new uniCONNECT plug-in system uses massive blades and high-capacity sockets. Thanks to the new design, it is now finally possible to realize high numbers of poles in one connector with a small overall size - currently up to 22 pins. Over 3000 cycles are possible with loads up to 10A. Optimally designed for use in modelling.
The blades offer the advantage that all cables can be reliably and easily soldered without a plastic support being able to melt. There are also strain relief, detent, handle and anti-kink protection. The contacts of the blades are always visible, whereby damage and contamination can be recognized immediately.
The biggest advantage of the system is that, even in the plug, a double redundancy for important control functions is provided. For this reason, the system not only specifies conventional pin numbers, but also differentiates between primary pins (double, for main functions) and secondary pins (single, for light, landing gear, brake, ...).
Locking CABLE is a classic connection in which a socket is permanently installed in the fuselage, for example, and the cables are routed from the wing to a plug. This connector is inserted into the
Socket out and locked there. The rest of the cable is pushed back into the wing after plugging in.
RTR as ready assembled and soldered unit with 2 / 3m cable connected directly 1 to 1. This is installed on one side, the length defined to the servo and assembled with crimp contacts. The remaining cable is laid on the other side to the receiver and assembled there. This finished unit is always delivered in one piece. 1xM and 1xF
Assembled with cable:
- 6 Primary contacts (redundant; for main-functions like servo), 4 secondary contacts (for minor-functions like light, gear,..)
- 3000 Cycles, 10A for primary contacts, 5A for secondary contacts
- Strain and bend relief
- Primary and secondary contacts
- Double redundancy in socket
- Free accessible contacts and solder points
- Ready assembled with 3m cable (0,35mm²)
- DIY Kit with all pieces and screwes
- Cover measurement 13x63mm
- Weight without cable 19g
Ready assembled:
- Plug in system with 3 redundant pins for one primary servo (main functions)
- Ready assembled with 2m of each cable connected directly to each plug so that you can cut to your own wing joint.
- 1 x Pre soldered and assembled plug set with cable (m/f)
-
Please Note. 2 sets are needed per model
