UniLight Locking Cable Connection, 6 Primary (2 Servos) 4 Secondary Pins (Fully Wired (1 Pair, M/F) CABLE-6P4S-RTR
Ideal for Jets as this offers 2 servos with redundancy Plus Gear & Brakes per wing.
The uniCONNECT connector system uses solid blade contacts and highly durable base strips. With this new design, high pin counts in a compact connector can now finally be realized – up to 28 pins. It allows for more than 3000 cycles with load capacities of up to 10A, making it optimal for use in model making.
The blade strips have the advantage that all cables can be reliably and easily soldered without the risk of melting a plastic carrier. Additionally, they include strain relief, locking mechanisms, grips, and kink protection. The contacts on the blade strips are always visible, making it easy to detect any damage or contamination immediately.
The greatest advantage of the system is that it provides double redundancy for important control functions within the connector itself. Therefore, the system distinguishes between primary pins (doubled, for main functions) and secondary pins (single, for lights, landing gear, brakes, etc.), unlike traditional systems that only specify pin counts.
Locking CABLE is a classic connection type where a socket is permanently installed in the fuselage, and the cables from the wing are connected to a plug. This plug is inserted into the socket during assembly and locks in place. The remaining cable is then pushed back into the wing after the plug is connected.
RTR
Fully assembled and soldered unit with 3m cable, directly connected 1:1. It is installed on one side, the length defined to the servo, and assembled with crimp contacts. The remaining cable is routed to the receiver side and then assembled. This completed unit is always delivered as a single piece, i.e., 1xM and 1xF
Technical Data
- 6 primary contacts for main functions, 10A
- 4 secondary contacts for additional functions, 5A
- 3000 cycles,
- strain relief, handle and bend protection
- Easily accessible contacts and soldering points
- Classic connector with secure locking
- Pre-assembled with 3m cable (0.35mm²)

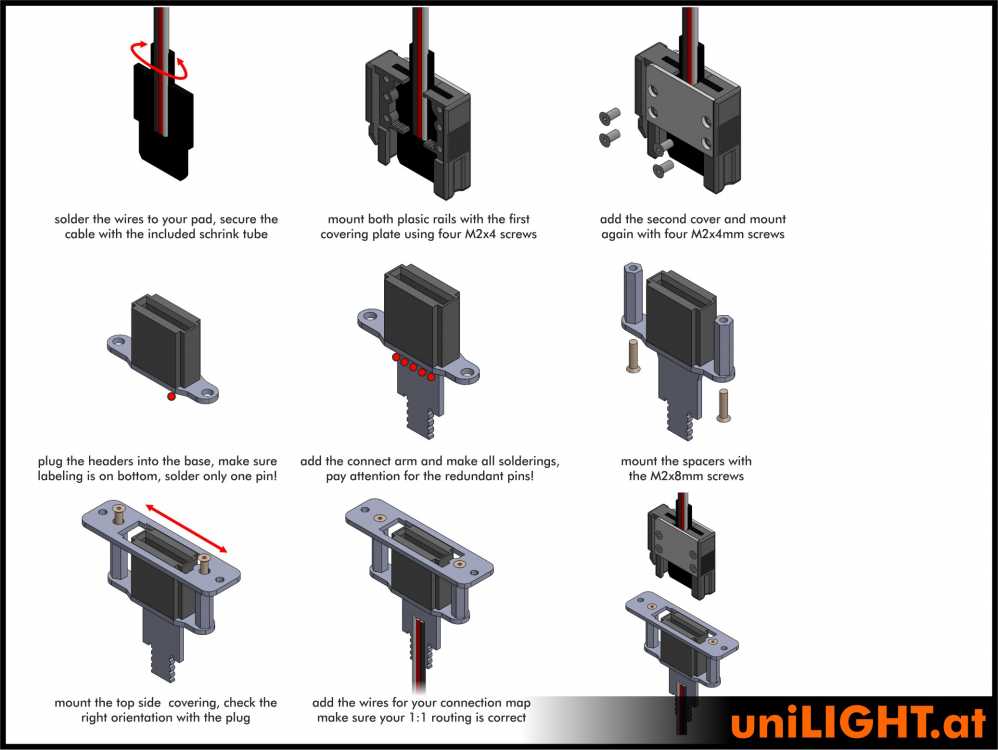

- Available as a kit with all parts and screws
- Dimensions socket plate: 13x63mm
- Connector weight: 19g without cable
Delivery Content
Fully wired connector with 3m straight-through cable for a primary servo connection (main functions like ailerons, flaps, etc.). 1 pair (1xM / 1xF).
Please Note - 2 sets are needed per model
