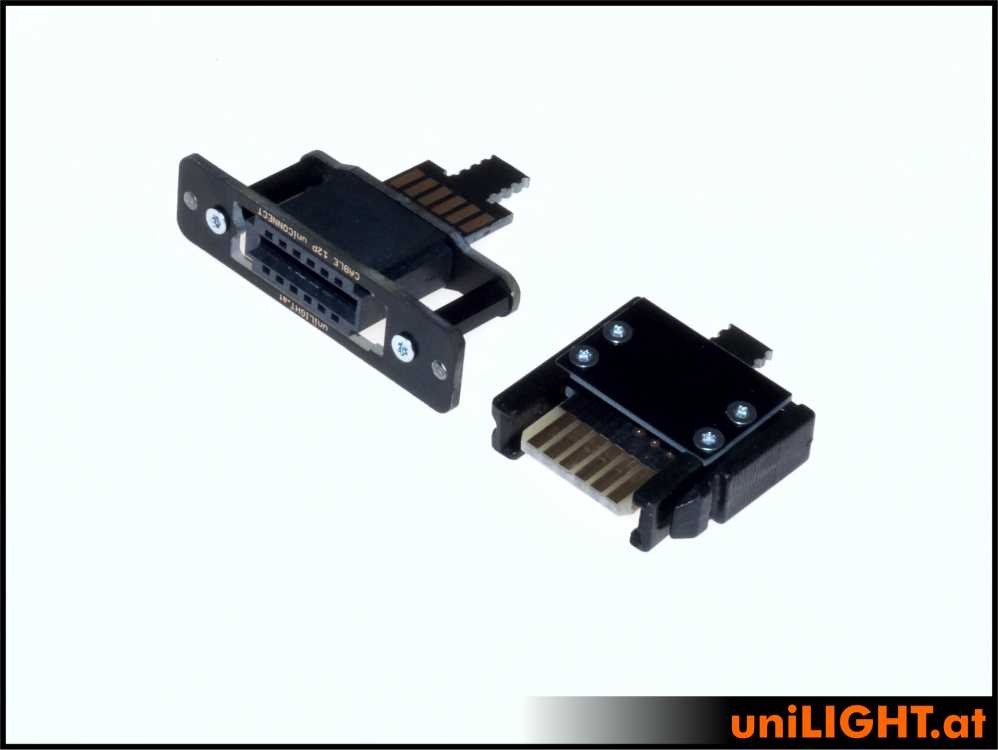

UniLight Locking Cable Connection, 3 Primary 6 Secondary Pins (Assembled (2 Pair, M/F) CABLE-3P6S-RTW
uniLIGHT.at UNICONNECT
The new uniCONNECT plug-in system uses massive blades and high-capacity sockets. Thanks to the new design, it is now finally possible to realize high numbers of poles in one connector with a small overall size - currently up to 22 pins. Over 3000 cycles are possible with loads up to 10A. Optimally designed for use in modelling.
The blades offer the advantage that all cables can be reliably and easily soldered without a plastic support being able to melt. There are also strain relief, detent, handle and anti-kink protection. The contacts of the blades are always visible, whereby damage and contamination can be recognized immediately.
The biggest advantage of the system is that, even in the plug, a double redundancy for important control functions is provided. For this reason, the system not only specifies conventional pin numbers, but also differentiates between primary pins (double, for main functions) and secondary pins (single, for light, landing gear, brake, ...).

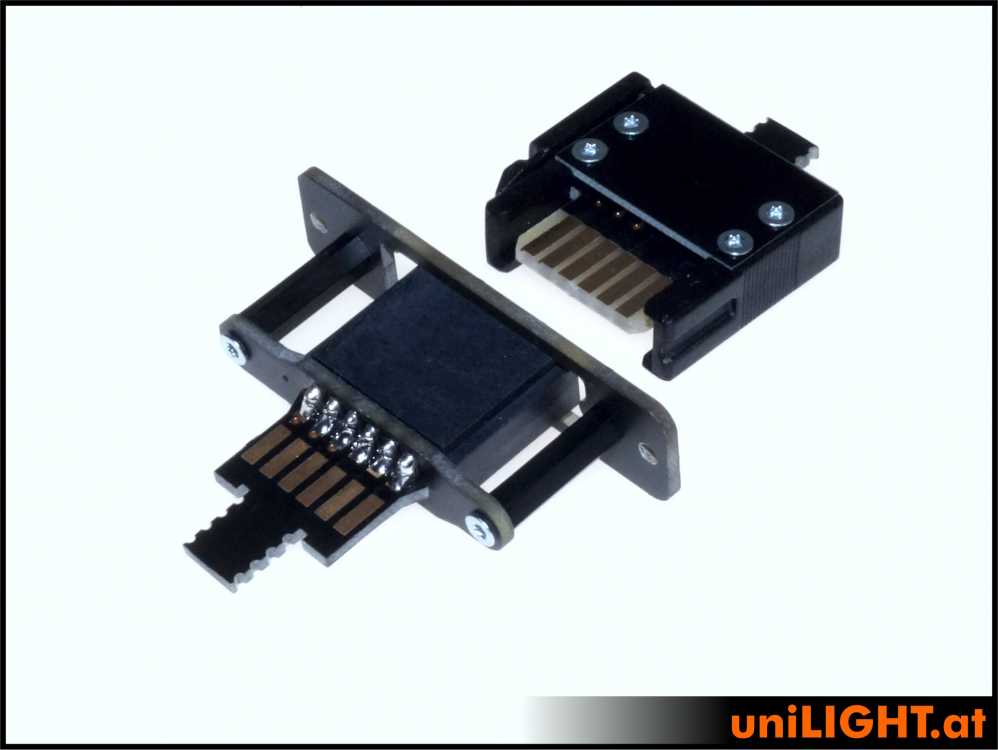

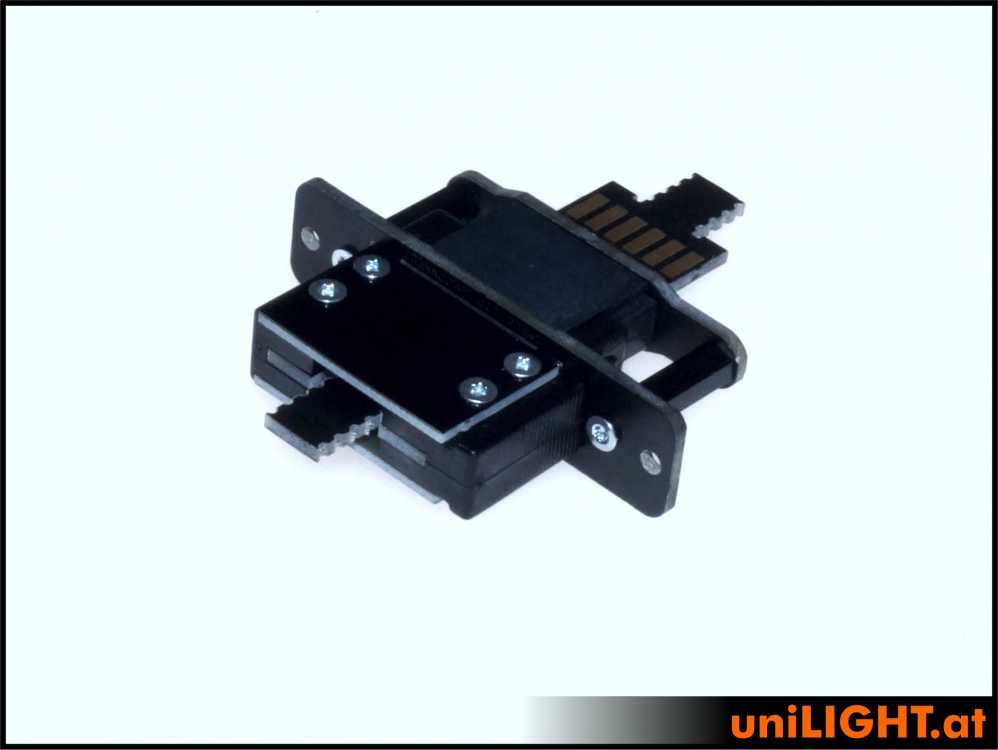

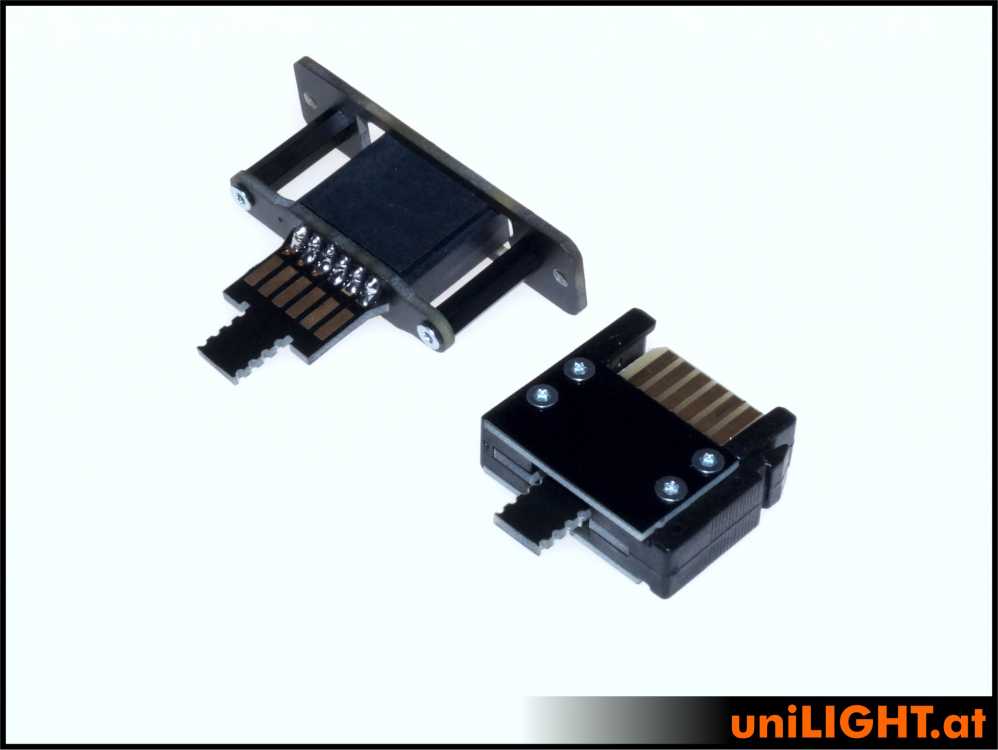

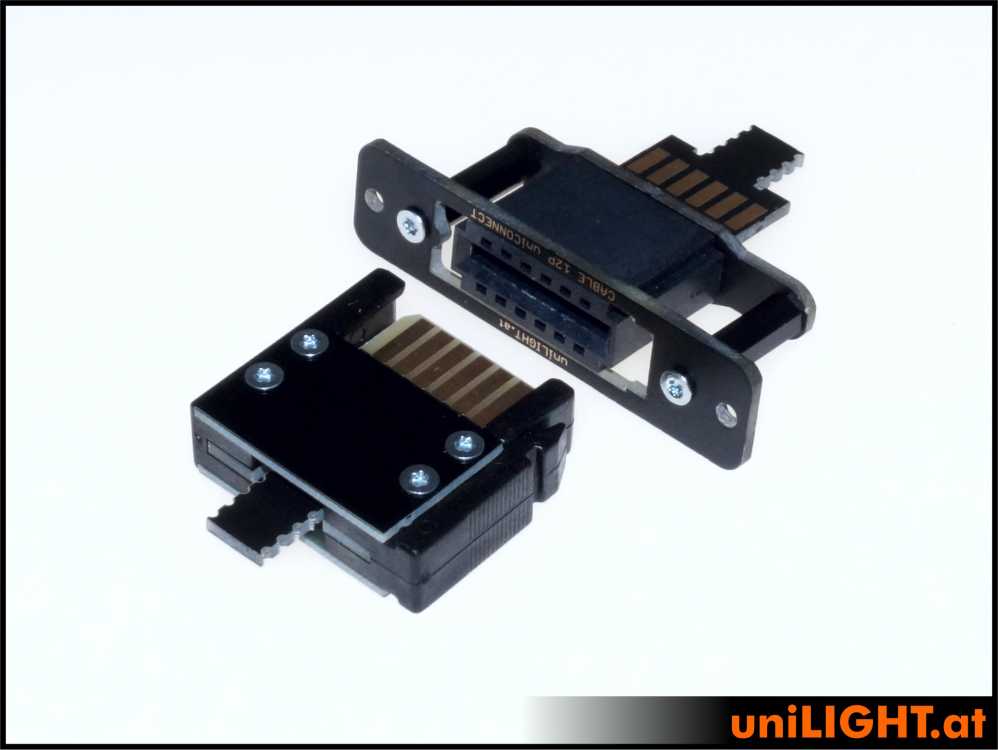

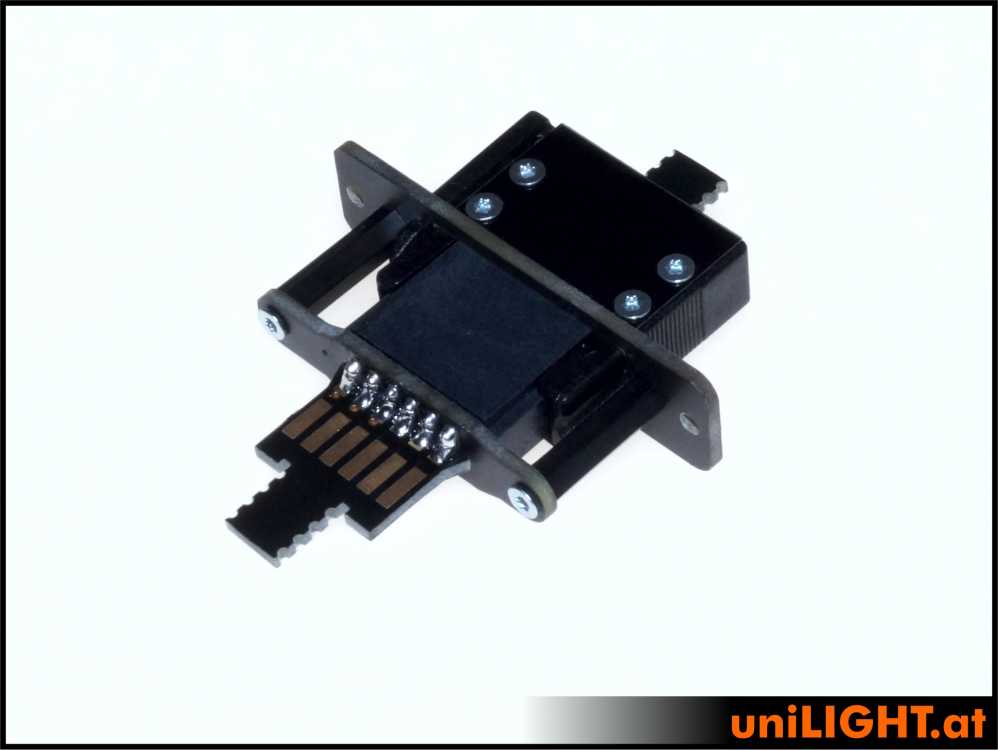

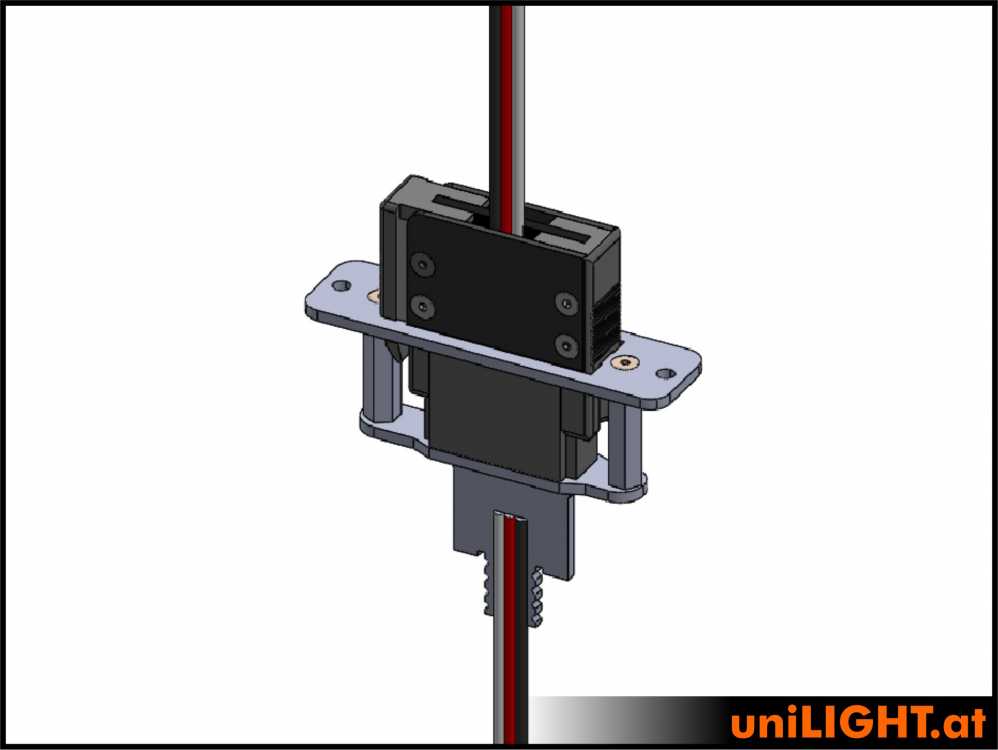

Locking CABLE is a classic connection in which a socket is permanently installed in the fuselage, for example, and the cables are routed from the wing to a plug. This connector is inserted into the
Socket out and locked there. The rest of the cable is pushed back into the wing after plugging in.

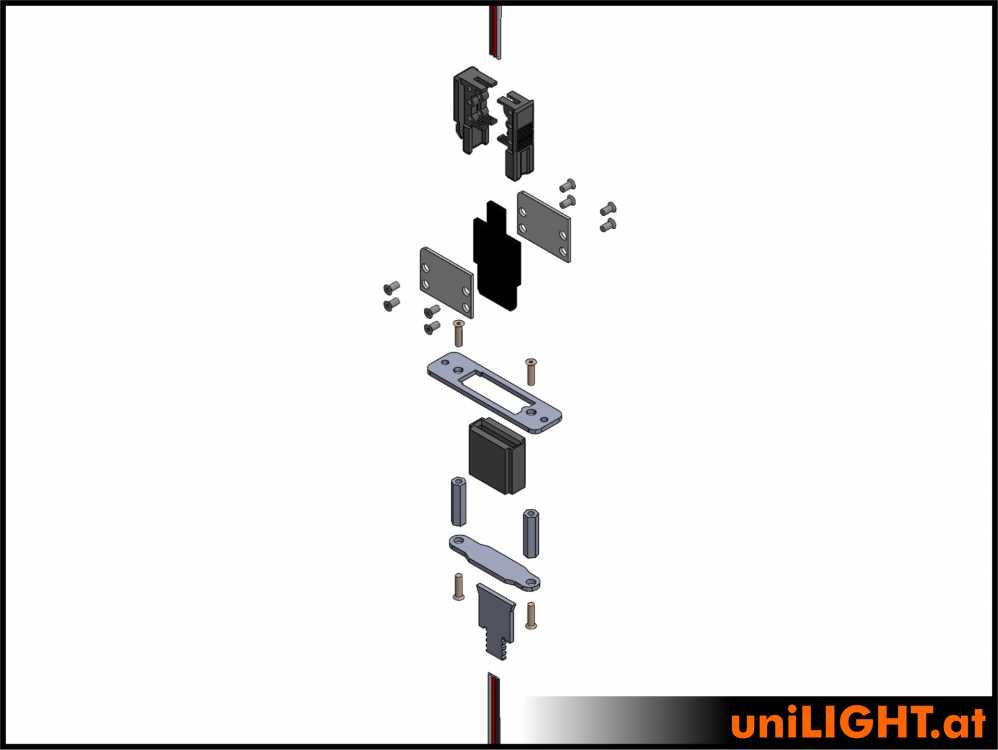

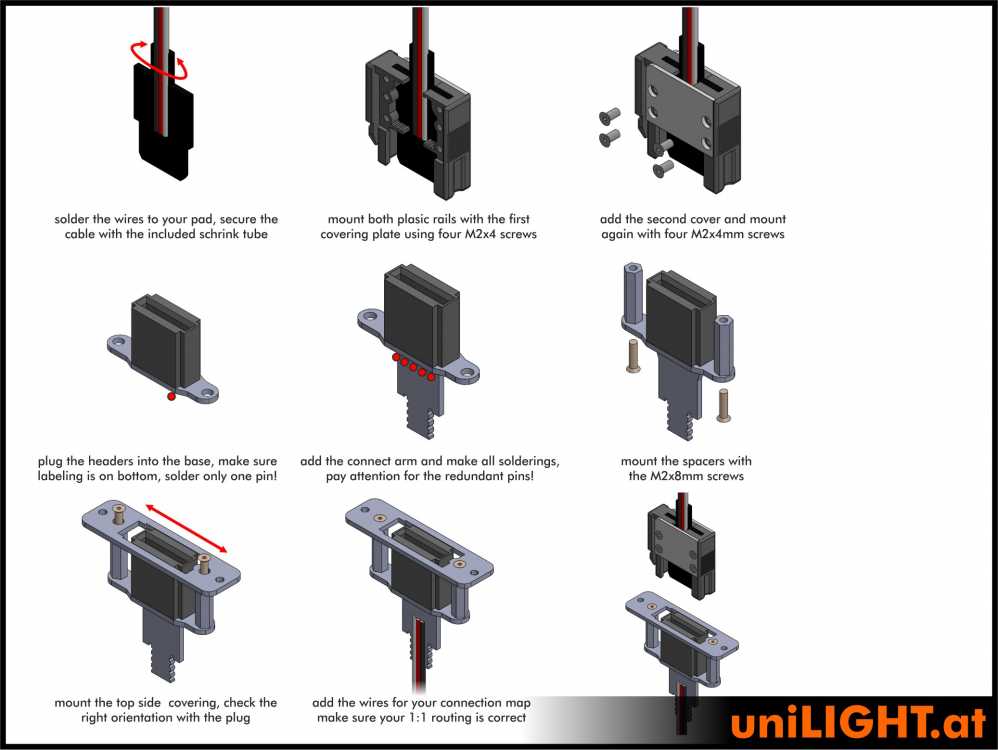

RTW as a pre-assembled connector to which only the cables have to be soldered - the assembly of the plates is already done. 2xM and 2xF are supplied
Assembled with cable:
- 3 Primary contacts (redundant; for main-functions like servo), 6 secondary contacts (for minor-functions like light, gear,..)
- 3000 Cycles, 10A for primary contacts, 5A for secondary contacts
- Strain and bend relief
- Primary and secondary contacts
- Double redundancy in socket
- Free accessible contacts and solder points

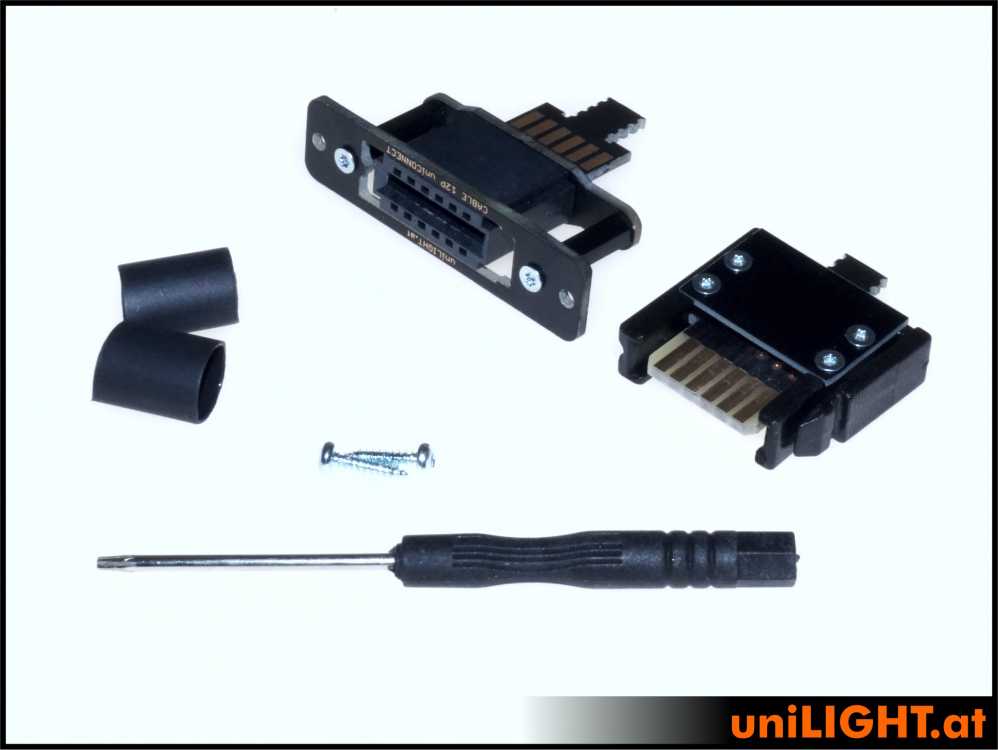

- DIY Kit with all pieces and screwes
- Cover measurment 13x50mm
- Weight without cable 14g
