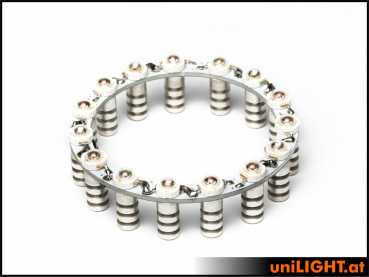

Name: UniLight 60mm Ring, - Orange
Brand: UniLight
SKU: RING-60-OR
Price: 99.9 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

UniLight 60mm Ring, - Orange RING-60-OR

Our Ultra-Power afterburner rings are the first thrust nozzles based on emitter technology in the market. Specially manufactured aluminium core PCBs for this application is what makes the assembly of the high-performance emitters and the required heat dissipation possible. In addition, one cooling duct behind every emitter is adhered to dissipate enough heat during operation. Without any furhter air cooling, the rings can be operated permanently ca. 1-2 minutes and therefore, the mixing to the gas channel should only happen in the upper section.

The light output of the emitter rings is gigantic high and even in an area of >120° to all ring sides visible. Thus, it will both directly shine into the outlet and into the nozzle, which strengthens tremendously the effect of a glowing pushing rod.

Direct operation with 2S (8V) Lipo. Please ensure sufficient cooling air during operation. The high power requirement of the afterburner rings requires sufficiently dimensioned batteries and an efficient control.

This ring is delivered with a 1m/0.5mm silicon cable. A second cable can be soldered in if needed. For a better light distribution, you can use our nozzle attachments under the rubric accessories.

Light Spreader

NEW: Each afterburner ring comes with a matching 2nd generation Nozzle attachment. With the cover you get a totally different light effect, especially recommended if the ring can be fully visible during operation.

Performance: 15 emitters with each 60-90 Lumen
Voltage: 2S/8V
Electricity: 2-2.5A
Beam angle: ~100°
Internal Dimension: 60mm
External dimension: 73.8mm
Weight: 33g (without cable)

Ready to use with 1m connection cable for 2S LiPo operation

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

Performance: 15 emitters with each 60-90 Lumen
Voltage: 2S/8V
Electricity: 2-2.5A
Beam angle: ~100°
Internal Dimension: 60mm
External dimension: 73.8mm
Weight: 33g (without cable)

Ready to use with 1m connection cable for 2S LiPo operation

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

Performance: 15 emitters with each 60-90 Lumen
Voltage: 2S/8V
Electricity: 2-2.5A
Beam angle: ~100°
Internal Dimension: 60mm
External dimension: 73.8mm
Weight: 33g (without cable)

Basic Connection Diagram
