UniLight 5mm PRO Navigationlight, 2Wx2 - Red PRO5-020x2-RT
Extremely powerful and new position / navigation light of the 5mm series is very compact and optically fits even with small models and helicopters even in the smallest positions. The delivery includes 3 highly transparent and break-proof polycarbonate caps and can be used according to taste and needs.
In terms of size, this series corresponds approximately to the classic 5mm light-emitting diode, but with a multiple output and an enormously wide radiation.
The order also includes a heatsink.
Technical Data:
Electricity: 2W reference power,
Voltage: 8(12)V, 0.25A
Beam angle: >120°
Light intensity: 45 Lumen RED
Light intensity: 108 Lumen GREEN
Light intensity: 180 Lumen WHITE
Total mass: 4x15mm (without heatsink)
Weight: 3g (without cable)
|
Operating Voltage: 2S/8V or 3S/12V with additional resistor
|
|
Cable Length: 0.5m PTFE 0,14mm²
|
|
Design: profile-shaped
|
|
Function: Navigation/Position Light
|
|
Dimensions: 5mm
|
Purpose of Use:
With 1m silicone cable and ready-made series resistor for 2S operation

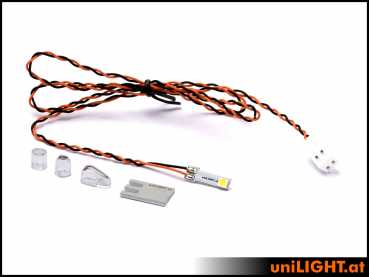

Delivery Content:
Cap 1: 5mm profile-shaped
Cap 2: 5mm round, cylindrical
Cap 3: 5mm round hemispherical, focusing
Assembly Instruction:
Use additional resistor for 3S operation.
Warning Notice:
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
