A world first in miniaturization with high light output: the lights from the PIN 5mm series!

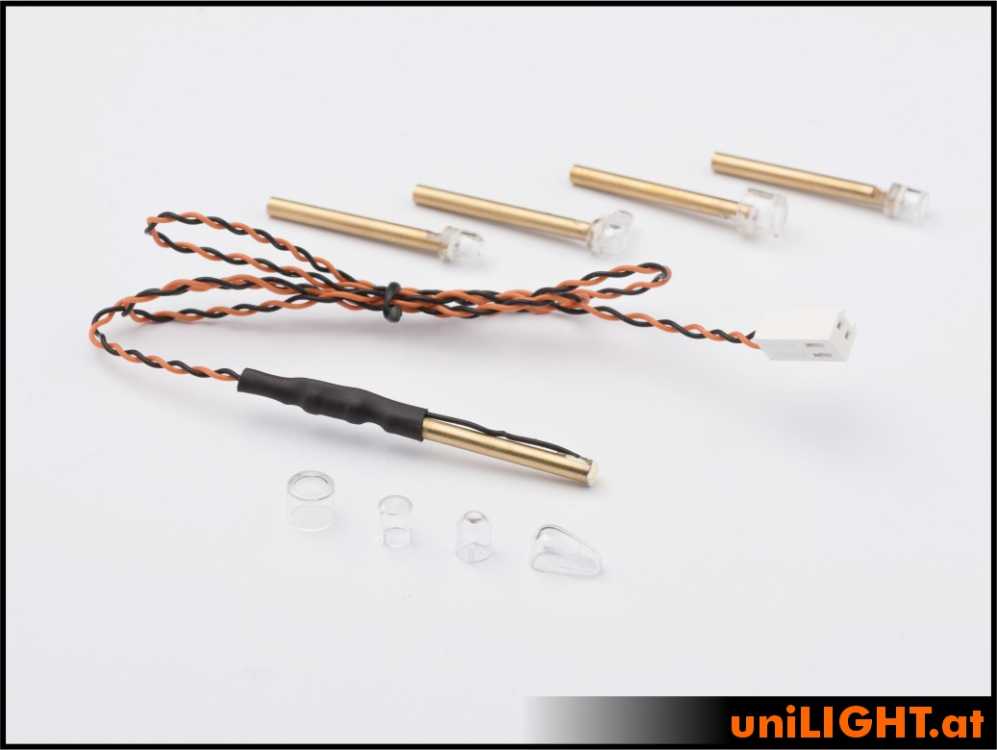

In a new and complex manufacturing technique, high-performance LED chips are connected directly to an electrical cooling carrier and additionally glued. Thus, with a minimal chip area of only 3x3mm, an enormous light output can be generated and operated. The scope of delivery includes four different light caps, the two round 5mm caps correspond to the known light-emitting diodes, but up to 100 times the known brightness with a beam angle> 120 °. The cooling and mounting pin on the back is only 3mm in diameter and can be integrated very easily even in thin places in rudder or the thinnest tail units.
The position light with 1.7W in x2 technology has an overwhelming continuous power for model flying for this size, the design allows an operating time of approx. 7-8 minutes without further cooling.

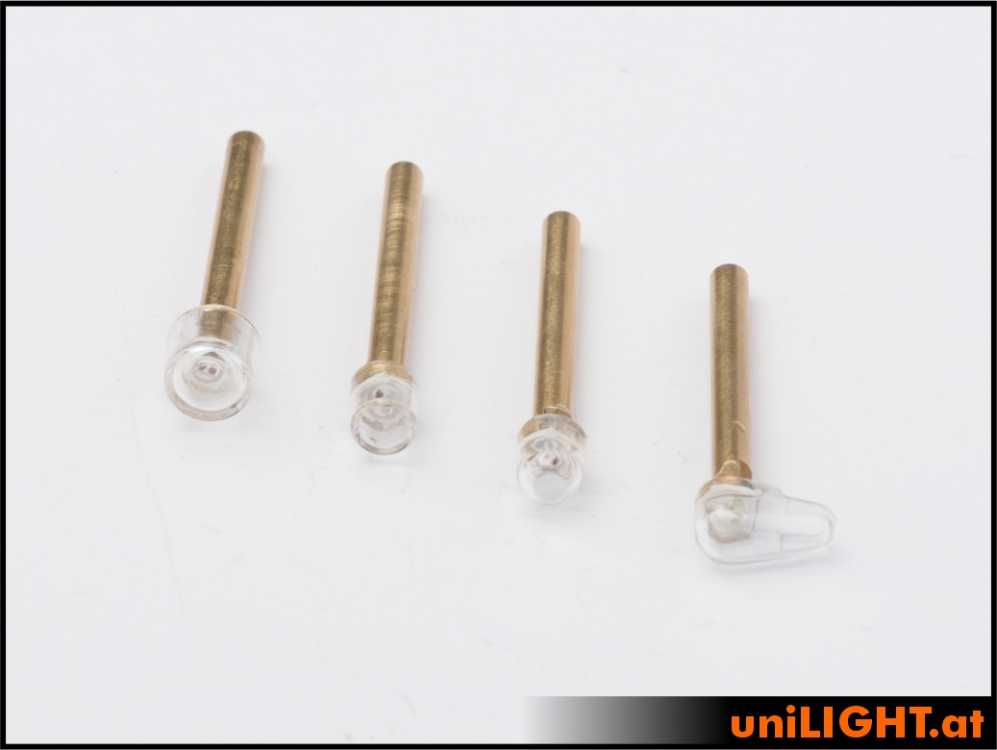

1. Cap 5mm cylindrical - can be attached directly as an all-round light
2. Cap 5mm round, focussing - when attached directly, part of the light is strongly bundled towards the front as with the 5mm light-emitting diodes
3. Cap 7mm cylindrical - can be glued to the model and used as an alternative cover
4. Cap 5mm profile-shaped - can be attached directly and used as a small position light
The design of the light includes an exposed LED chip which, as a ceramic carrier, is quite sensitive. We glue this in addition to stabilize it mechanically, but it is always necessary to handle the elements very carefully until they are firmly installed in the model.
Performance: 1Wx2 reference power 8(12)V, 0.1A
Beam angle: 120°
Light intensity: ~35 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~140 Lumen WHITE
Dimension: D5x34mm
Weight: 2g (without cable)

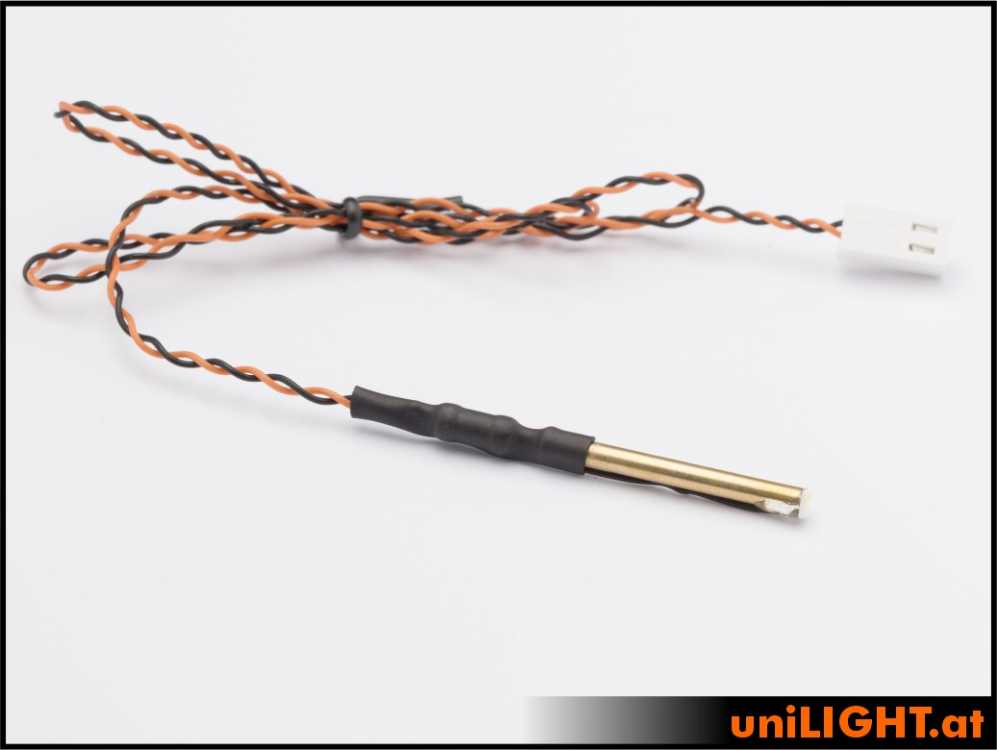

Ready to use with 1m connection cable and additional resistor for 3S operation
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
