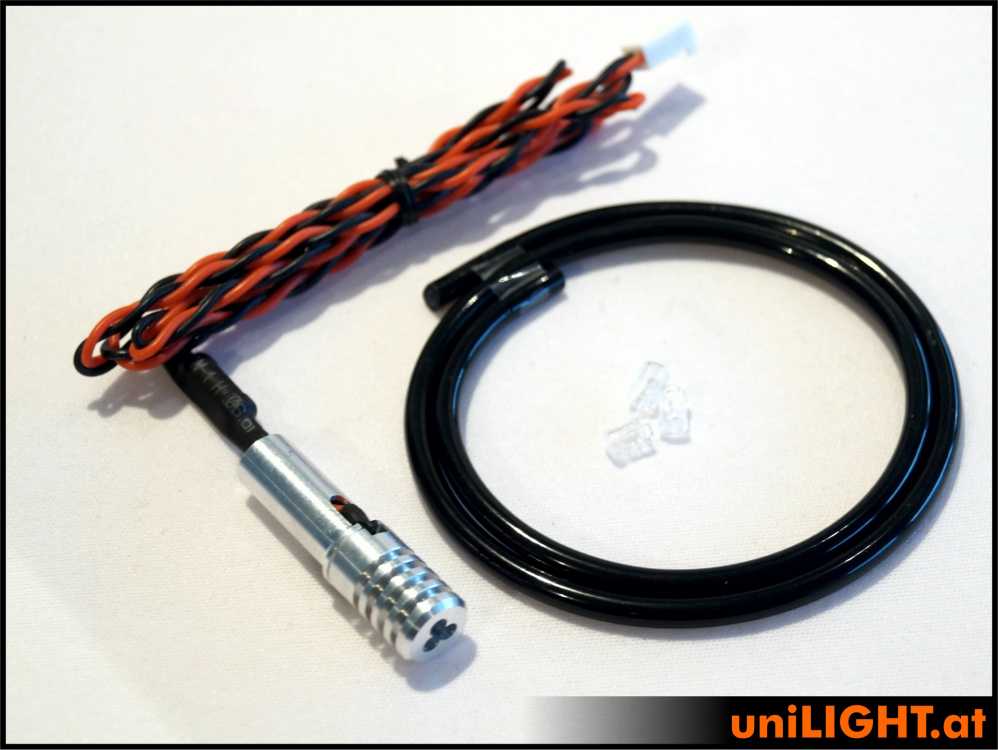

UniLight 3mm Fiber Navigation Light, Triple, 4W - White FIBER3-040-WE
Very new glass fiber based navigation light for extreme small applications. The luminaire consists of a full aluminium power section, a glass fiber with reflective jacket and end caps. The 3mm power adapter can operate with three 3mm fibers.
Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~70 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Overall: D10/12mm, 45mm length
Fiber: 3mm with jacket, piece of 500mm
Weight: 7g (without cable)
Ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, end caps
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
