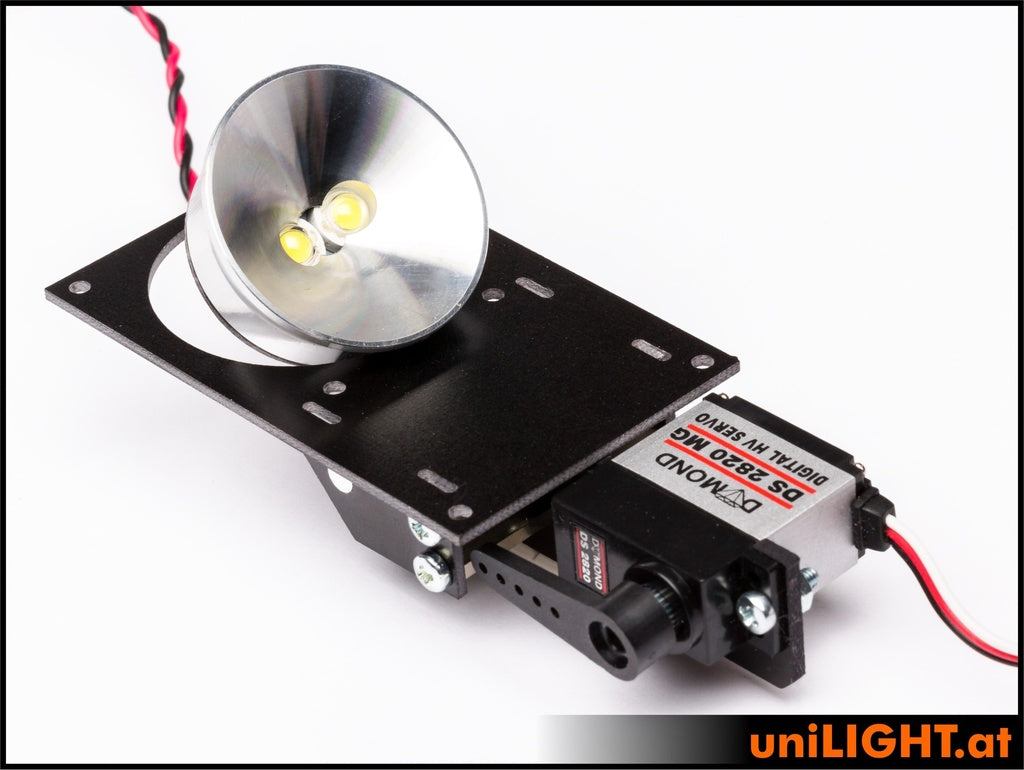

High-performance drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with HV Servo, making it compatible with any system.

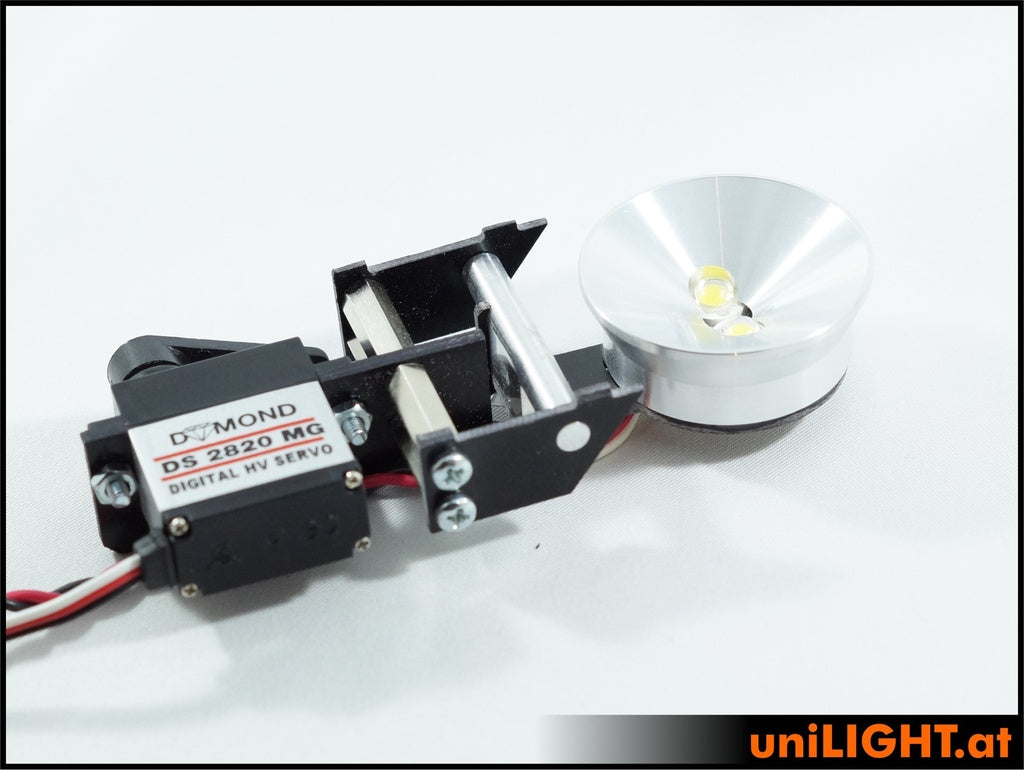

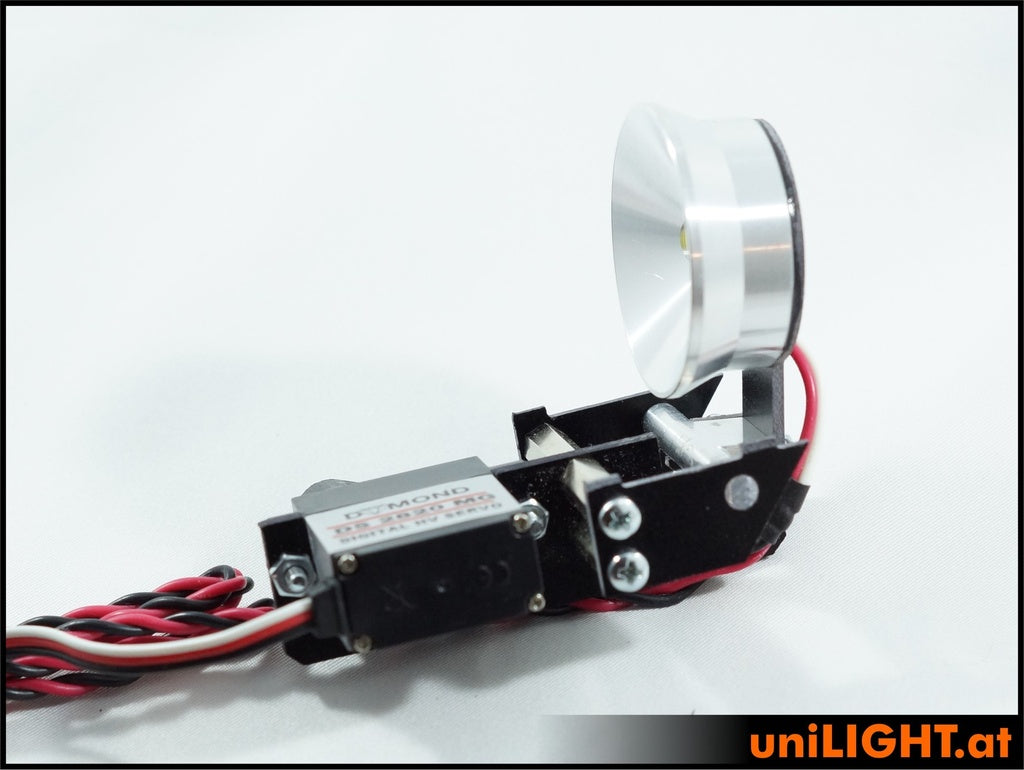

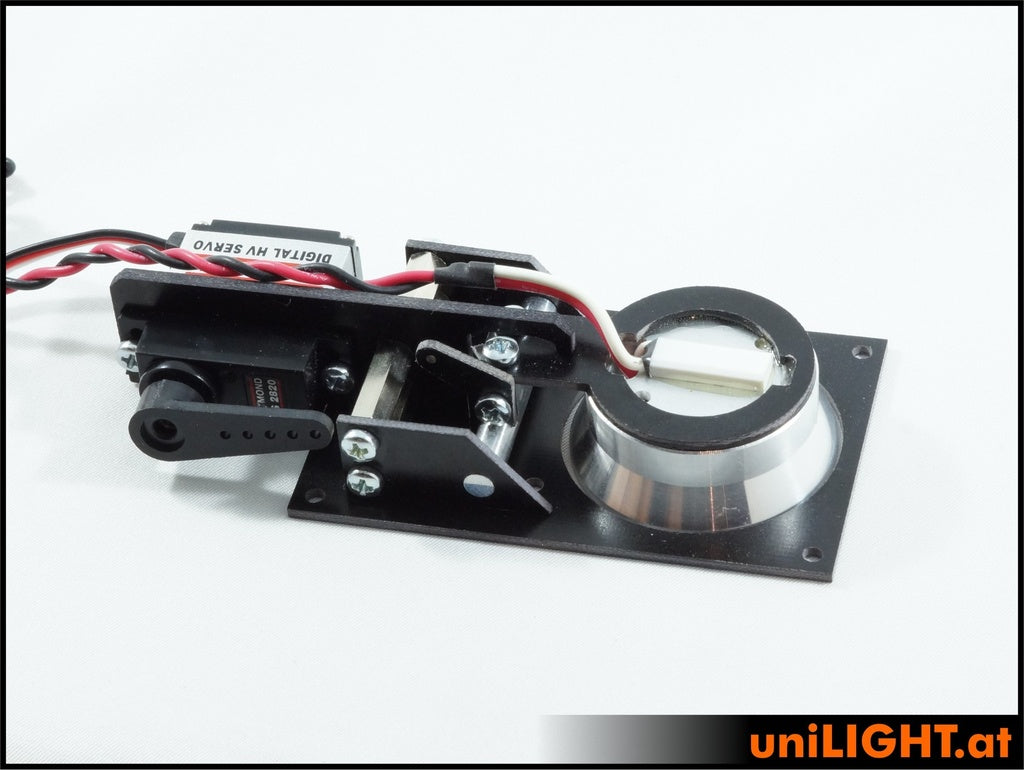

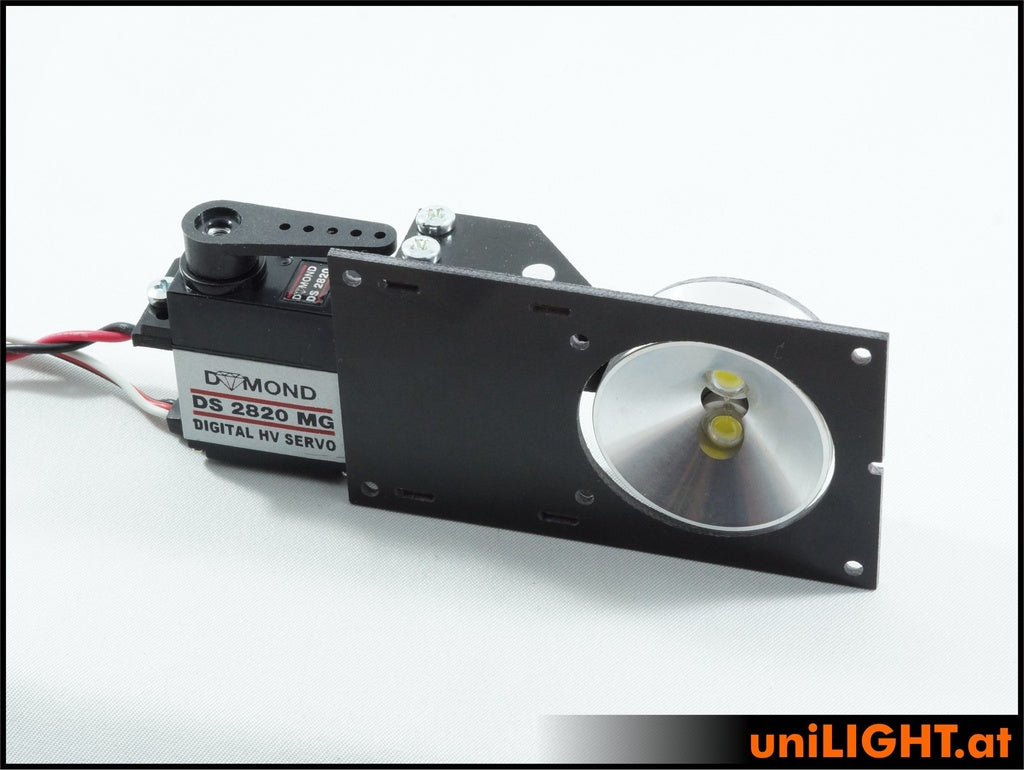

Our pre-assembled spotlights feature flat 35mm 10Wx2 lights with built-in thermal fuse, delivering impressive brightness in a compact form. The mechanism uses a HV servo (incl. Metalgear) ; you only need to determine the mounting position and attach the pull rod. The design allows two different mounting positions of the pivot axis relative to the servo using the included parts: in front of the axis or, for fuselage installation, above the axis.
Technical Data:
Power: 10Wx2 reference power
Voltage: 8V, use additional resistor for 12V!
Current: 0.7A
Beam angle: ~110°
Light intensity: 620 lumens WHITE
Light intensity: 600 lumens WARM WHITE
Weight: 55g (with servo)

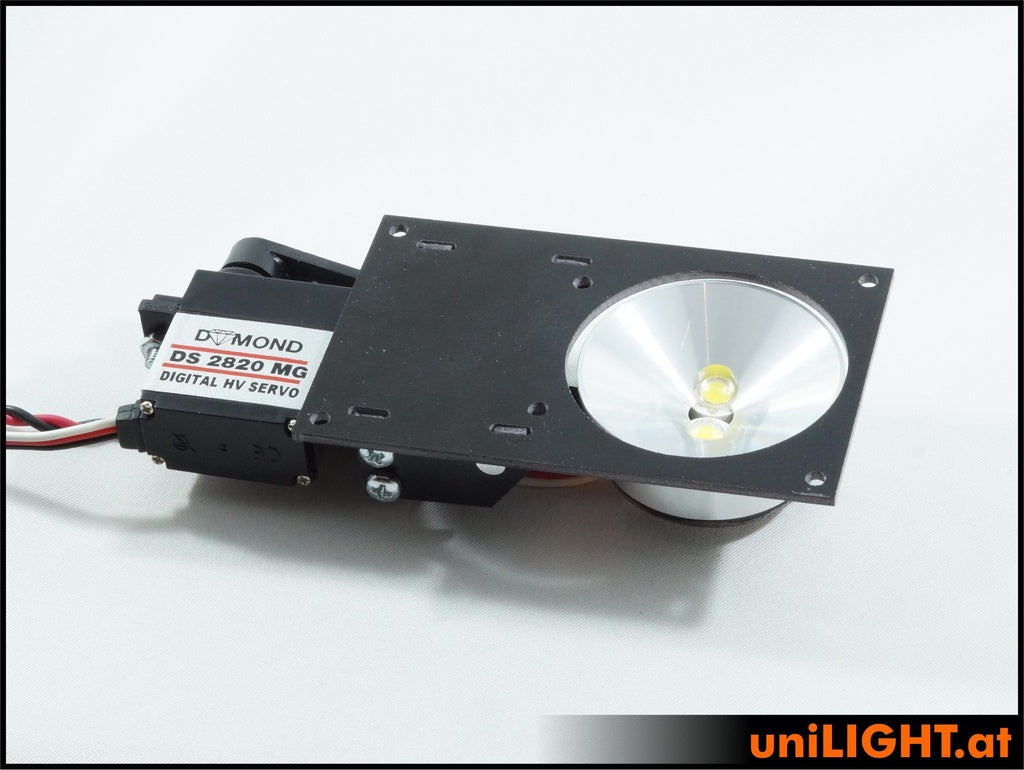

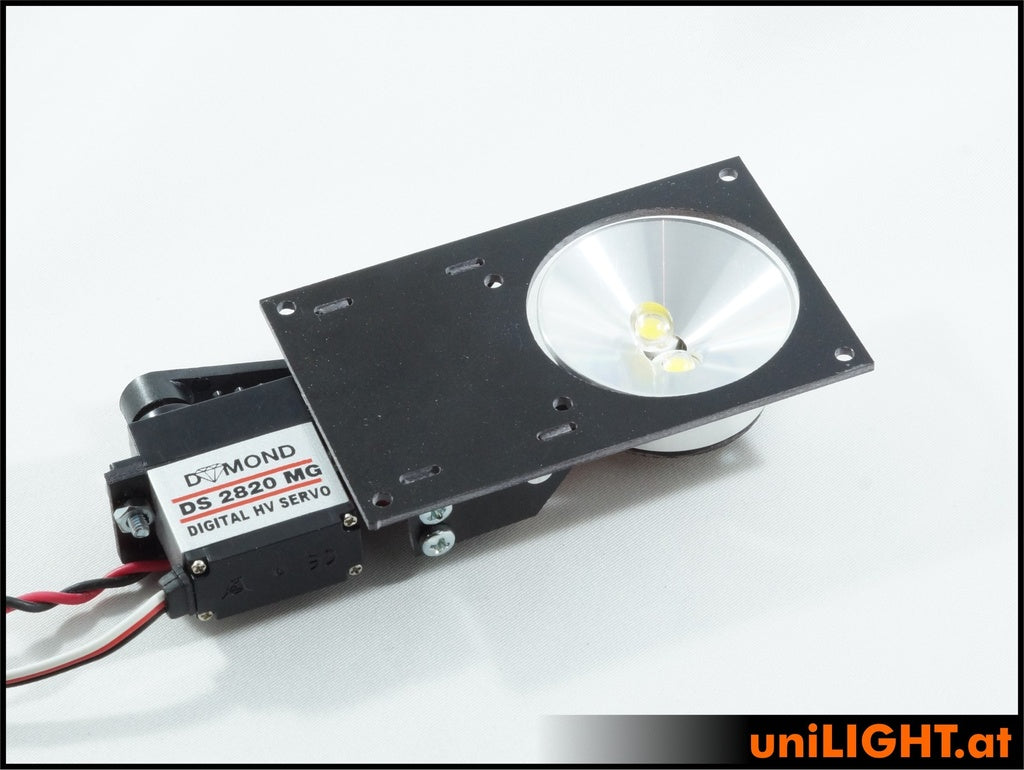

Mounting BEHIND axle

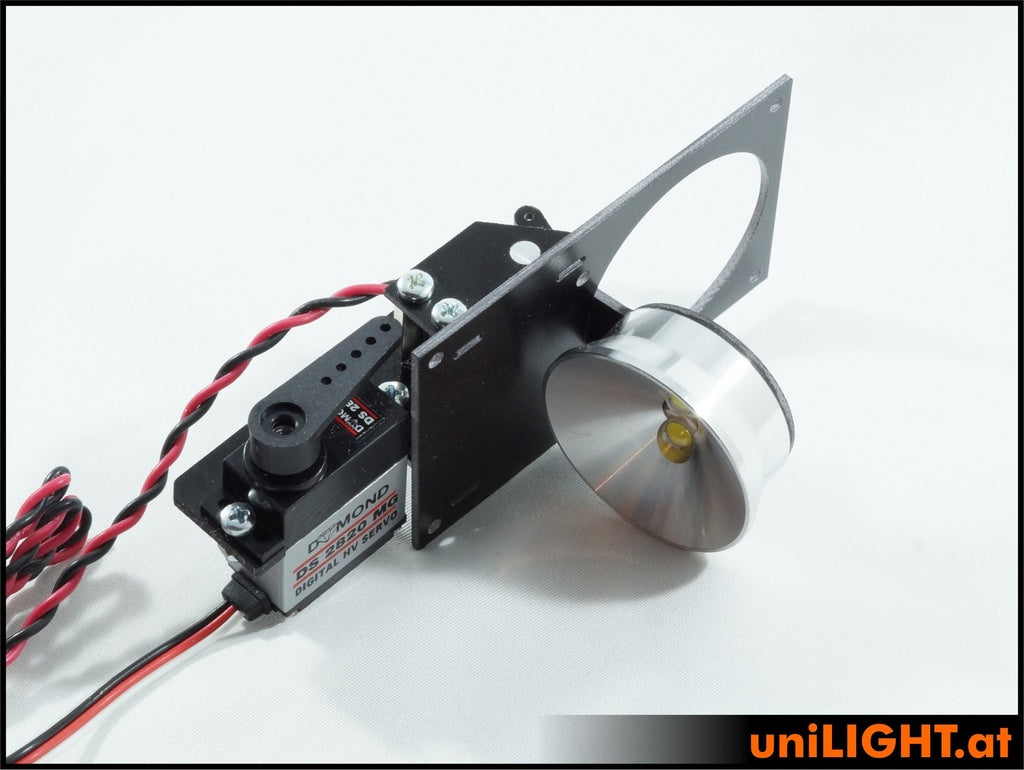

Mounting OVER axle
Overtemperature protection: at 65-70° the light is switched off or switched off safely

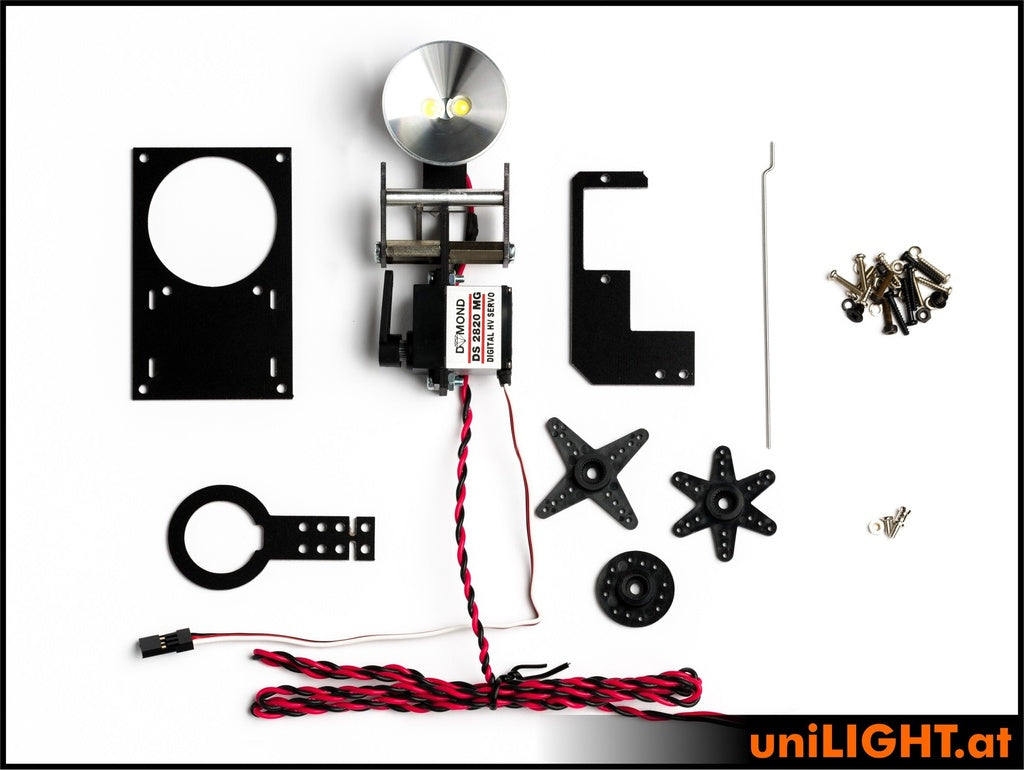

Ready to use with 1m connection cable and additional resistor for 3S operation
With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
