UniLight 24mm Hemisphere Strobe Light, 12V 3S 24Wx3 - White RND24X-240x3-12V-WE

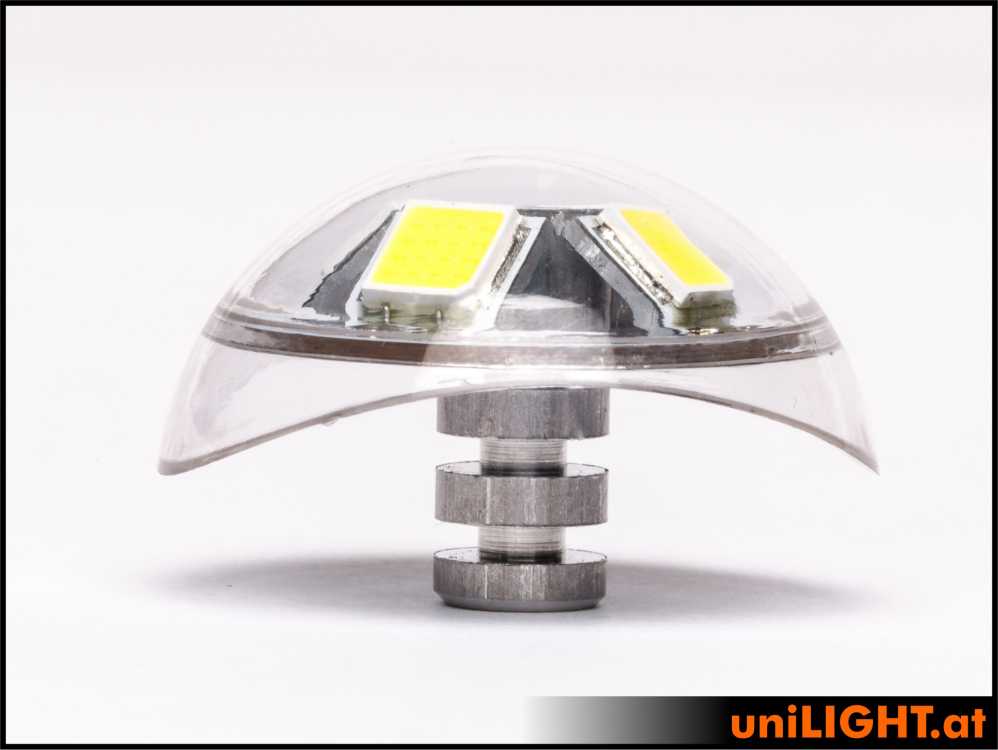

Real hemispheric light in dome shape, real radiation throughout the hemisphere!
Dome light in an absolutely novel and flat design to achieve the full beam angle in the half-space (> 2π sr). Aluminum construction can be operated without further cooling only with short strobe signals, optional heat sink and mounting material included.

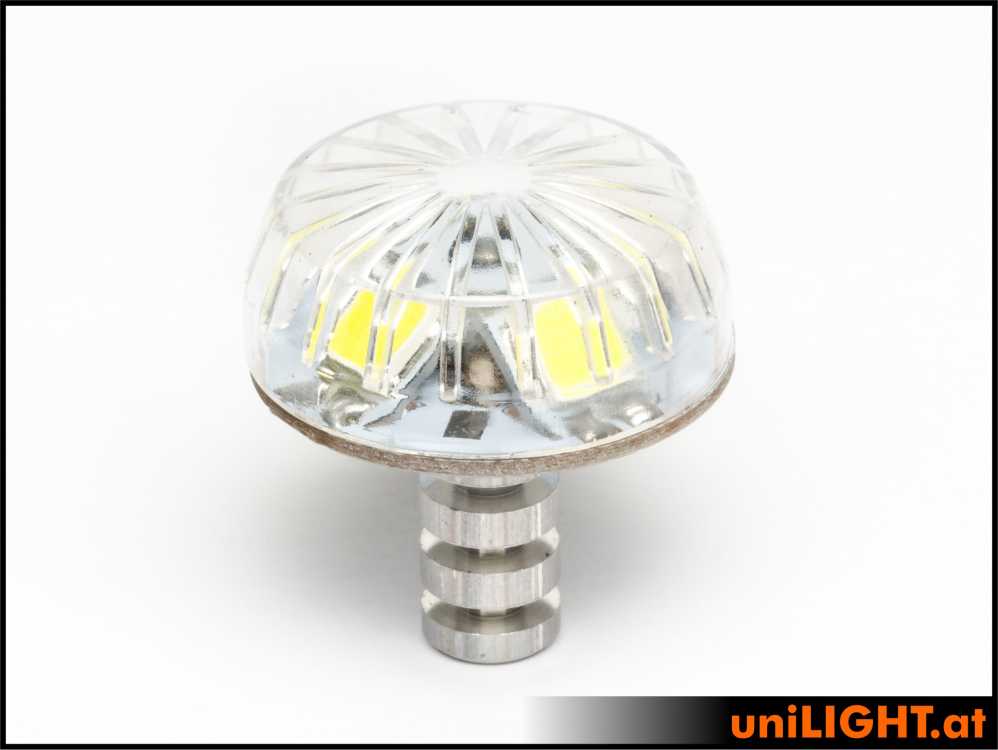

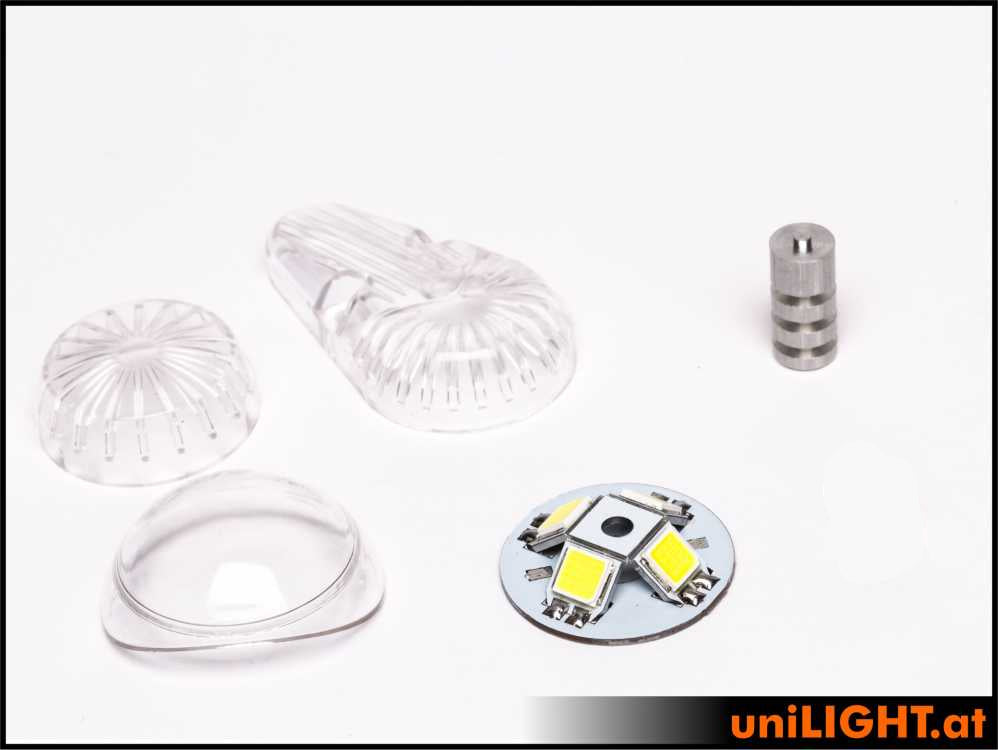

Various caps included, the primary cap already has an Molding for direct mounting on a round fuselage and can be further adjusted with a knife or scissors.
Performance: 24W reference power in x3 technic,
Voltage: 12V/3S(3A)
Beam angle: >180°/360° (>2π sr)
Light intensity: ~3000 Lumen WHITE
Dimensions: D24x8mm
Weight: 4g (ohne Kabel)
Function : Flash/Strobe
Ready to use with 1m silicon cable for 3S
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 3S (12V), the enclosed resistor has to be added.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
Assembly Instruction:
The primary cap has already a contour designed for direct mounting on a rounded fuselage back and can be further adjusted with a knife or scissors for a perfect fit.
