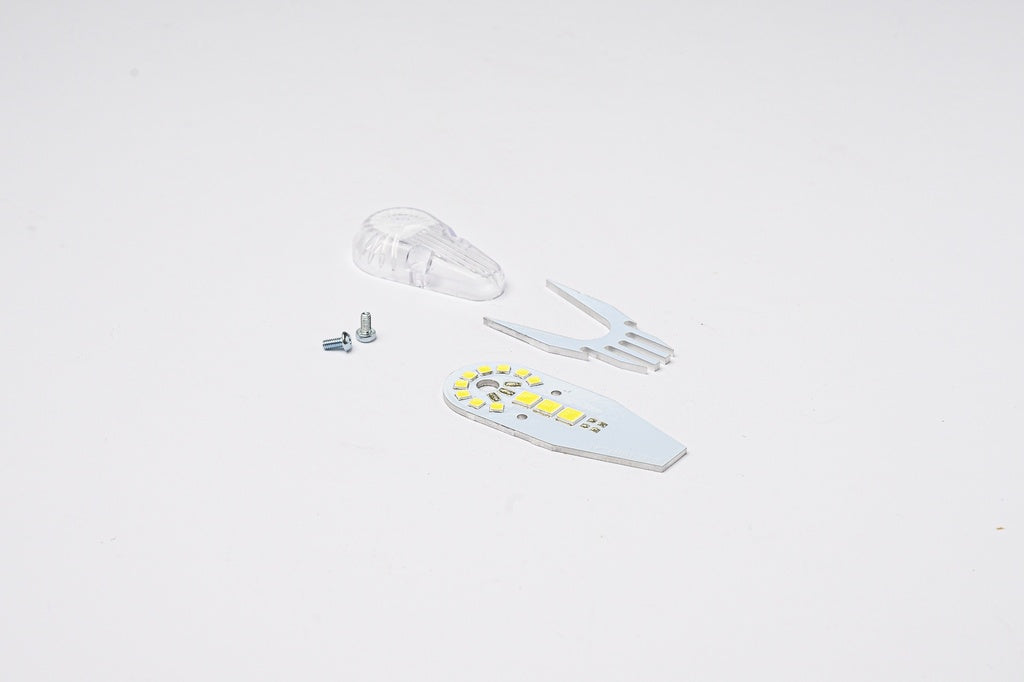

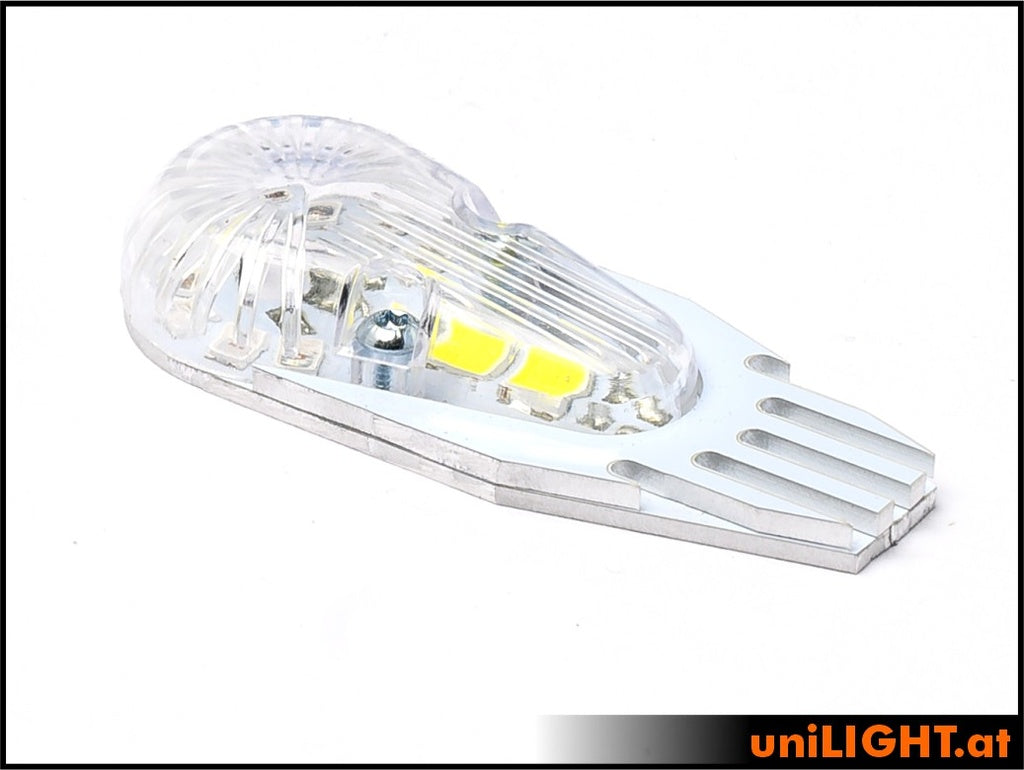

UniLight 24mm Dual Navigation + Strobe Light, 24Wx2, T-Fuse - Green-White DUAL24F-240x2
Ready to use with 1m connection cable and series resistor for 2S, resistors for 3S enclosed
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Technical Data:
Performance: 16W reference power, 8(12)V, 1.35A und 8W reference power, 8(12)V, 0.6A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: > 160°
Light intensity: ~360 Lumen GREEN
Dimensions: 24x59x9mm
Mounting base thickness: 2mm
Weight: 10g (without cable)
Note: The LED lights are extremely bright! Never look directly into a LED!
