UniLight 17mm Hemisphere Strobe Light, 9Wx2 RND17X-090x2-RT RND17X-090x2-RT
Real hemisphere light in the shape of a dome, real radiation in the entire hemisphere with a diameter of only 17mm!
Dome light in an absolutely new and flat design to achieve the full beam angle in half space (>2π sr). Aluminium construction can only be operated with short strobe signals without further cooling, optional heat sink included. The canopy is already moulded for direct mounting on a round fuselage spine and can be further adjusted with a knife or scissors. The standard chip configuration allows a duty cycle of 10-15%. The optional cooling pin is attached to the LED trapezoidal structure with the enclosed screw and a drop of superglue.
Electric: 9W reference power with x2 technology, 8V / 12V, 0.75A
Beam angle: 360 °
Light intensity: ~ 240 lumens RED
Light intensity: ~ 670 lumens GREEN
Light intensity: ~ 450 lumens WHITE
Dimension:
ground plate :
Weight: g (without cable)

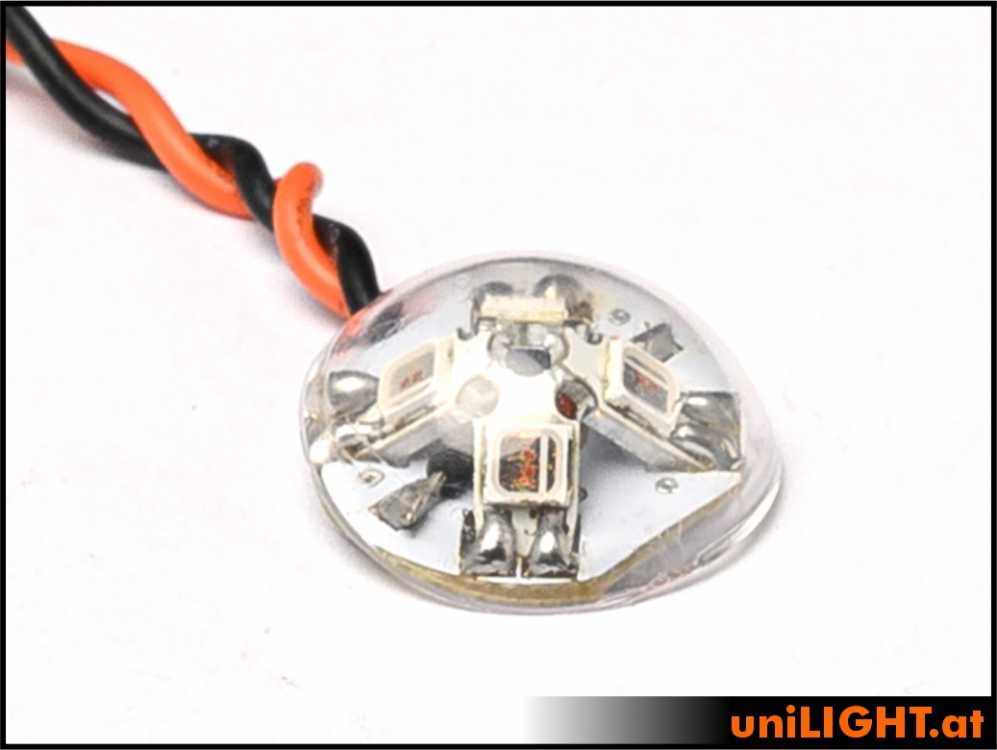

With 1m silicone connection cable, ready for connection to 8V / 2S LiPo.

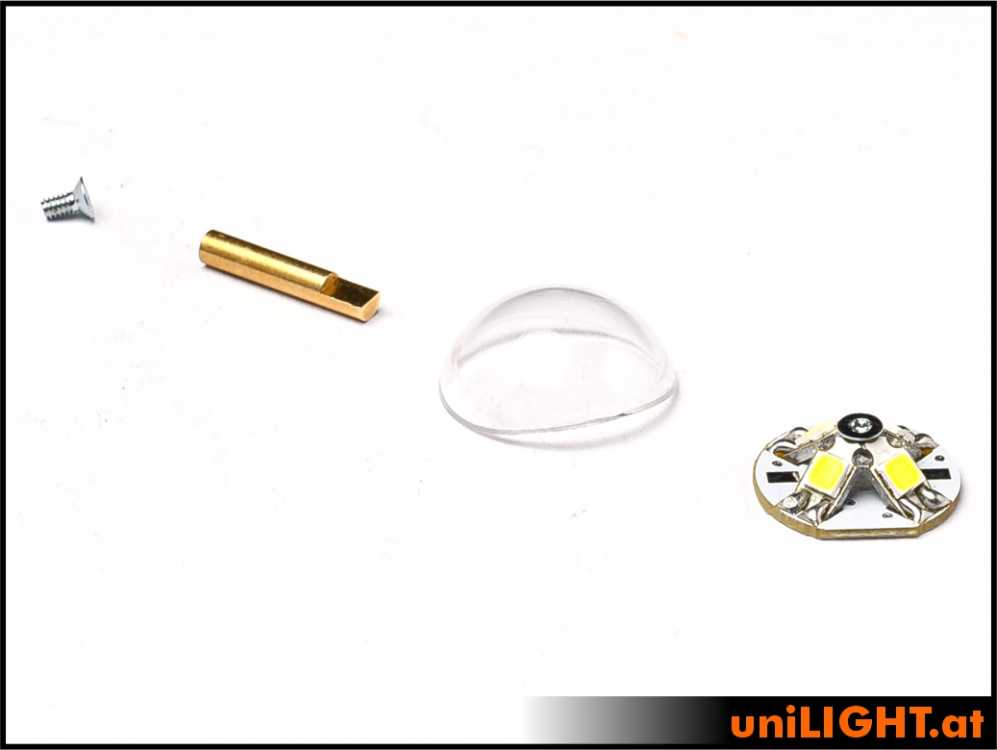

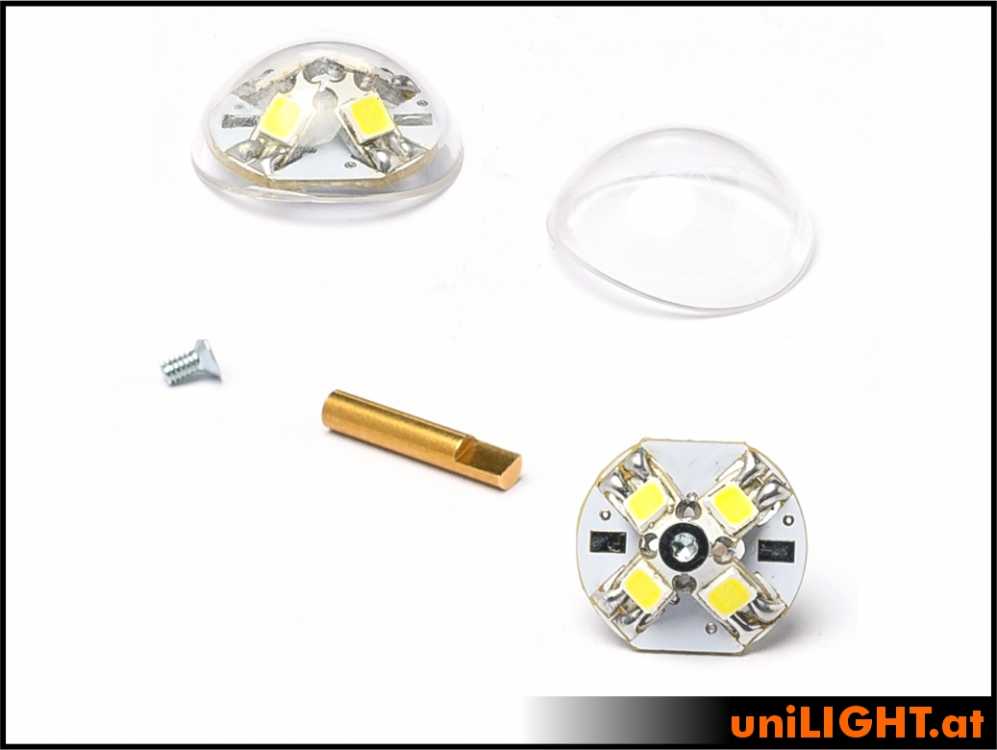

Contains a screw and a brass pin as a heat sink to glue together (CA)
Additional resistance for operation with 12V / 3S LiPo
Information about the reference power is a pure comparative value between the offered bulbs. They usually refer to an operating voltage of 12V / 3S LiPo and depend on the light source, operating mode and technology.
Pay attention to the operating temperature, we can not guarantee overheating.
Attention: The LED lights are extremely bright! Never look directly into an LED!
