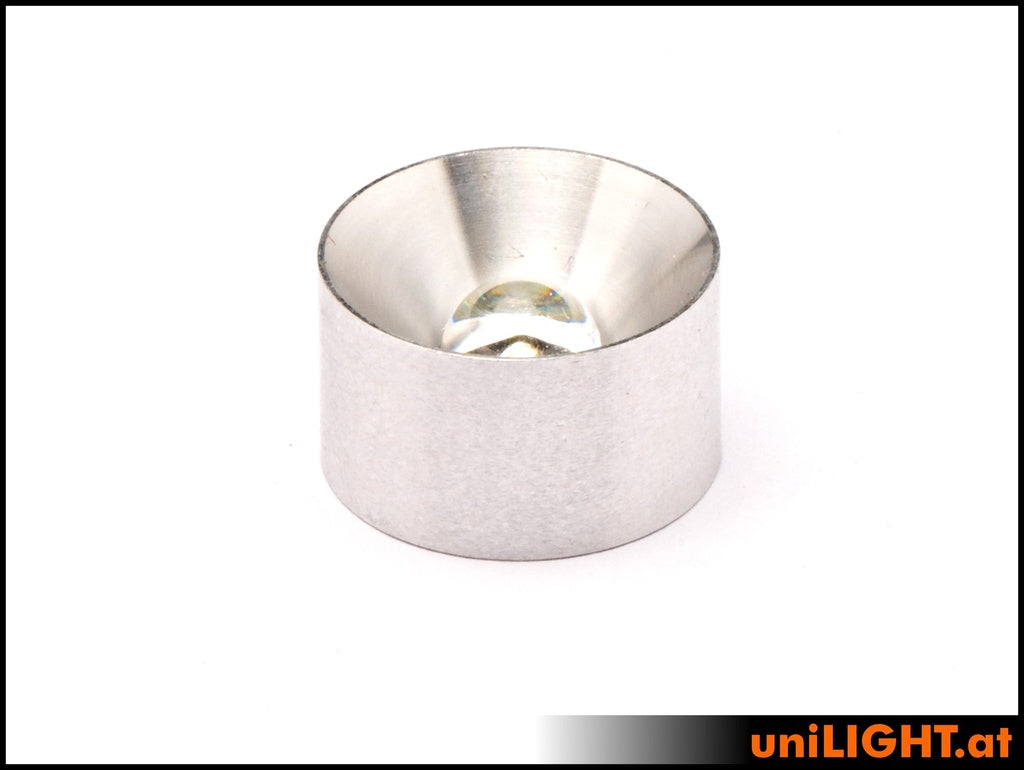

UniLight 17mm Gear Spotlight, 6Wx2, Short SPOT17X-060x2-WE
Compact ultra power spotlight with up to 450 lumens of light output , CNC-manufactured aluminium reflector, 17 mm in diameter. An ideal high-performance light for use on undercarriages. It is highly recommended to glue the spotlight directly to chassis or other metal surface using thermally conductive adhesive in order to dissipate the heat. The Spotlights are already equipped with integrated optics. By default these lights have a beam angle of approx. 90°. Alternatively there is also a well-bundled 30 ° beam angle light option.
Purpose of Use:
Perfect high-performance spotlight to use on undercarriage.
Delivery Content:
Equipped with a 1m connection cable.
Assembly Instruction:
The spotlight has to be attached directly to the undercarriage leg using thermally conductive adhesive.
Warning Notice:
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for short time without an additional cooling – intended for use as taxi lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
Technical Data:
Performance: 6Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.5A
Beam angle: ~30° / ~90°
Light intensity: ~450 Lumen WHITE
Light intensity: ~450 Lumen WARMWHITE
Dimension: D17x10mm
Weight: 4g (without cable)
|
Cable Length: 1m Silicone 0.25mm²
|
|
Operating Voltage: 2S/8V or 3S/12V with additional resistor
|
|
Design: Round
|
|
Dimension: 17mm
|
|
Function: Landing Gear Spotlights
|
