UniLight 15mm PIN Navigation Light, 4Wx2 T-Fuse Red PIN15F-040x2-RT
LED high-performance navigation light with 4W reference power for operation as a position light on various models.
This light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling. The thermal design is intended for strobe or beacon operation and would lead to early shutdown if used as a position light.
Technical Data:
Electricity: 4W reference power,
Voltage: 8(12)V, 0.33A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: ~100 Lumen RED
Light intensity: ~160 Lumen GREEN
Light intensity: ~280 Lumen WHITE
Dimension cooling tube: D 8mm, flange 10mm
Dimension light cap: round 15x16mm, cylindric 15x15mm
Total mass: D15x16mm, 45mm length
Weight: 4g (without cable)
|
Operating Voltage: 2S/8V or 3S/12V with additional resistor
|
|
Cable Length: 1m Silicone 0.25mm²
|
|
Design: Round
|
|
Dimension: 15mm
|
|
Function: Navigation/Position Light
|
Delivery Content:
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.

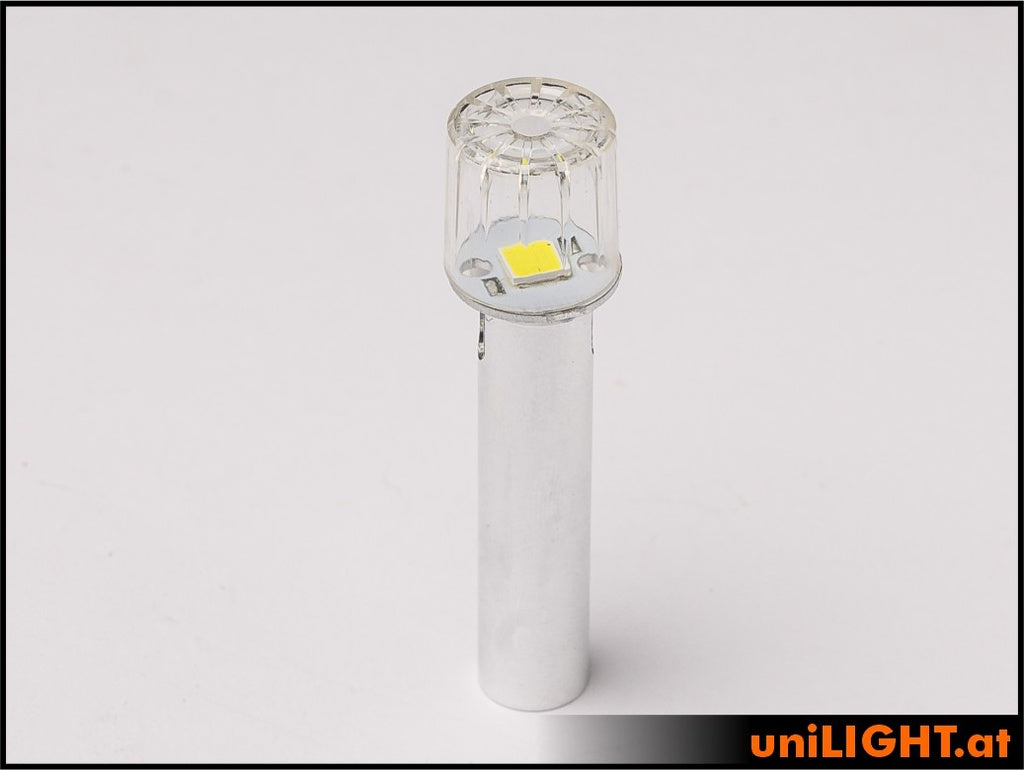

The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminium heatsink;

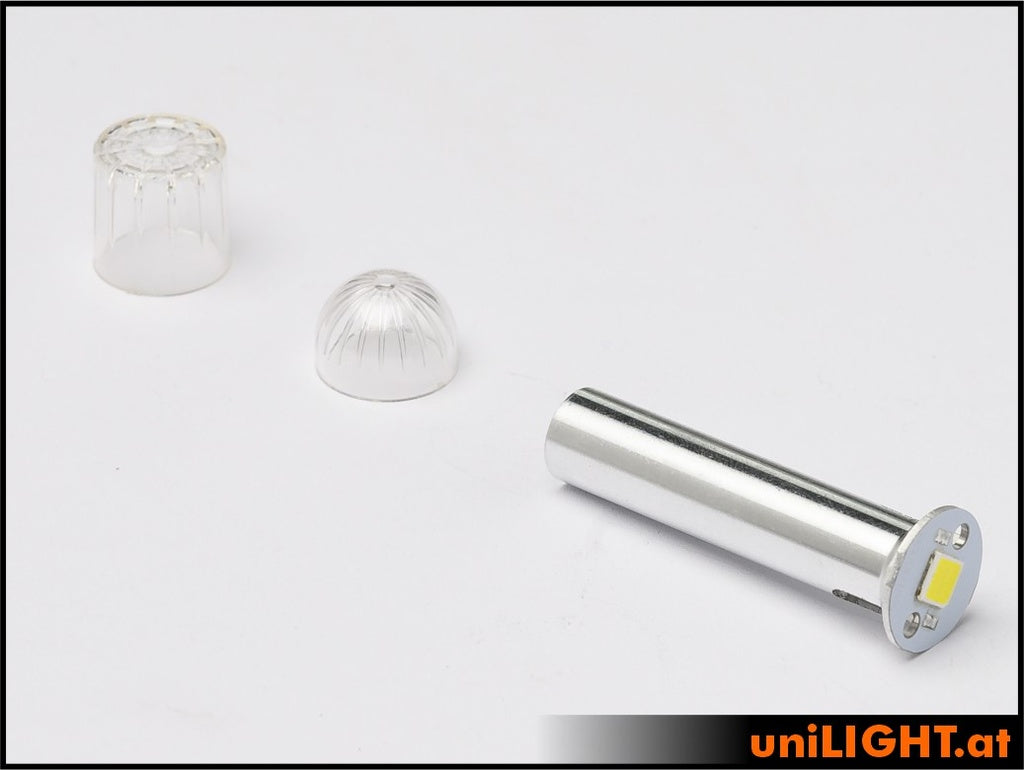

2 high-strength polycarbonate caps are included for versatile use.
1x 15mm cylindric cap
1x 15mm round cap
Assembly Instruction:
The caps must be glued separately and can also in some cases be painted in the model colour. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, canopy glue
Warning Notice:
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Attention: The LED lights are extremely bright! Never look directly into an LED!
