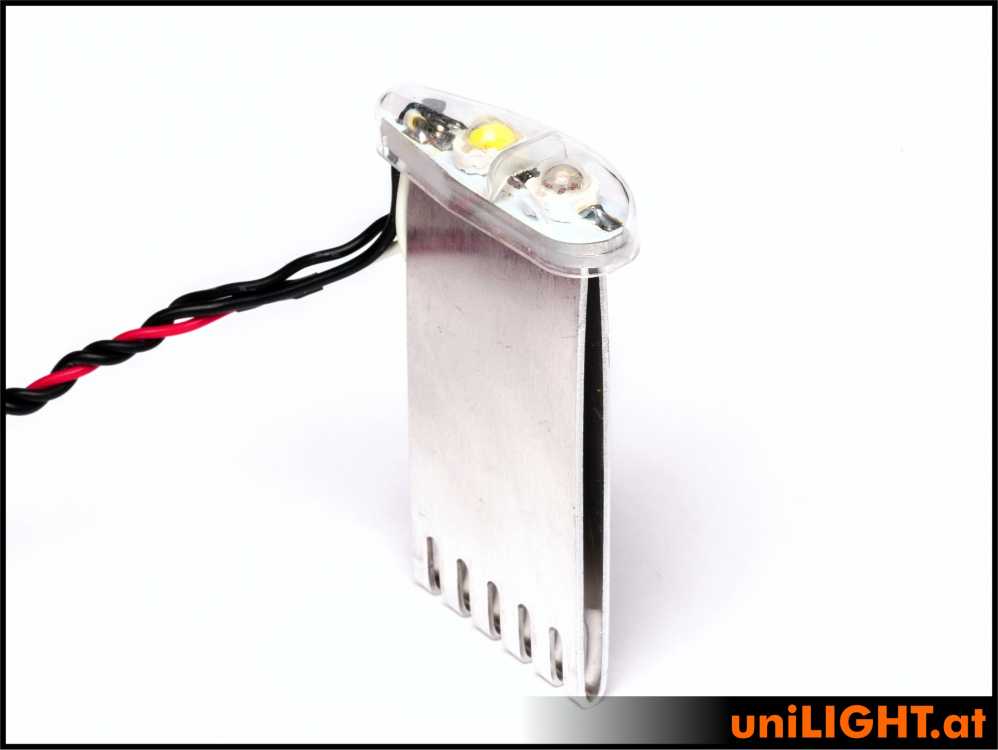

UniLight 11mm Dual Navigation + Strobe Light, 16Wx2, T-Fuse - Red-White DUAL11F-160x2-RTWE
Powerful position and flash light in a housing. The profile light of the 11mm series is slim outside and fits optically also onto smaller models. Due to efficient LED emitter, the light has an enormous luminous power despite the compact dimension and thus it's also suitable for bigger models. The innovative, internally positioned cooling surface enables astonishingly compact dimensions with a unique slim design.
In delivery state, the profiled polycarbonate cap is simply attached. It can be varnished separately. It's highly transparent and unbreakable.
The assembly of the lamp is astonishingly easy: With a simple surface mount, all you need is a slit of 3x28mm. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. If desired, you can recess the luminaire up to 4mm, thus achieving an even smaller construction. The cap must be glued after the final assembly.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.
Delivery: ready to use with 1m silicon cable and series resistor for 2S operation, resistor for 3S enclosed
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S LiPo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
