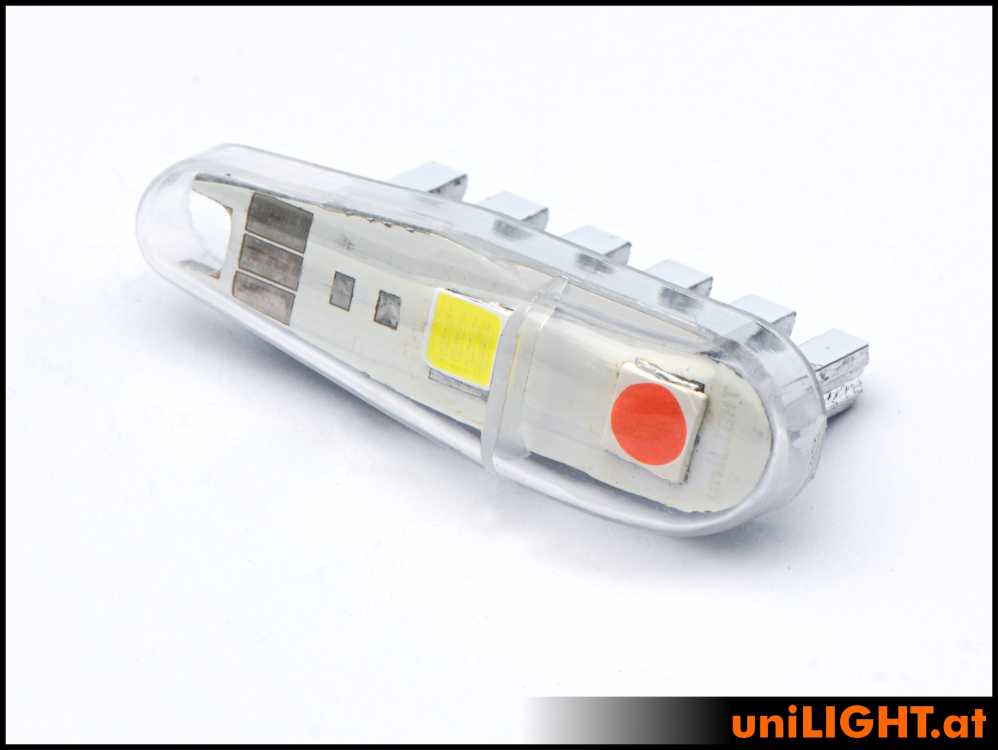

UniLight 11mm Dual Navigation + Strobe, 8Wx2, Economy Set - Red-Green DUAL11E-080x2-PACK
The DUAL11mm in the ECONOMY version are suitable for surface models from 1.2m span.
Navigation light and good flashing light in a common housing for cost-effective implementation of standard lighting systems. Enclosed heat sinks for self-assembly. The profile-shaped polycarbonate cap is highly transparent and break-proof. Perfect for getting started with model lighting, for simple wooden models or foams.
This set includes a right position light in GREEN and a left position light in RED.
Lights of the ECOMOY series are generally characterized by adequate performance data and a very good price-performance ratio. The construction is simpler and you have to partially do it yourself. They are only offered in a package. Although they are still significantly more powerful than the lights of other low-cost providers, they are the small siblings of the PRO series with reduced power / cooling, without directional structure, temperature fuse, LED cluster and only suitable for 2S operation.
Electricity: 2.5W RED and 6W WHITE reference power, 8(12)V,
Beam angle: >160°
Light intensity: ~66 Lumen RED,02A
Light intensity: ~100 Lumen GREEN,0.2A
Light intensity: ~425 Lumen WHITE,0.5A
Dimension assembly pin: 3x30x15mm
Dimension light cap: 11.5x42.5x10mm, up to 4mm lowerable without loss of beam angle
Total mass: 11.5x42.5x25mm
Weight: 7g (without cable)
Ready to use with 1m silicon cable and series resistor for 2S operation, resistor for 3S enclosed
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
