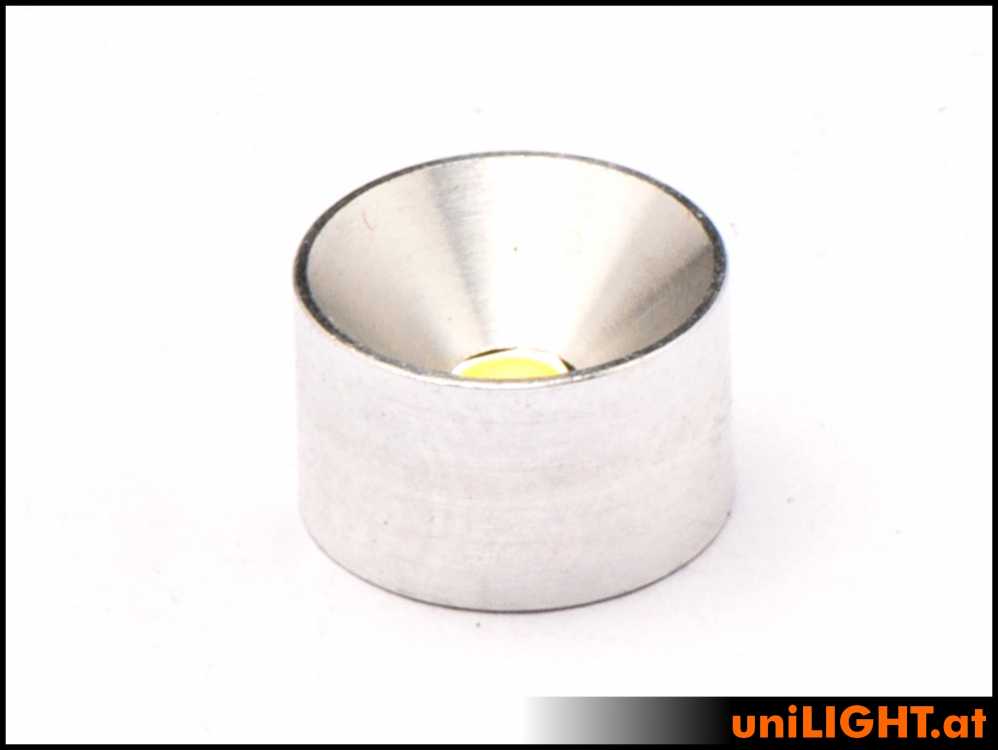

New series of compact spotlights with only 10mm! Here the design without its own heat sink, extremely short!
A powerful LED chip in a very compact, CNC manufactured 10mm aluminum reflector, an absolute novelty in this extremely short design without any additional heat sink. A spotlight is not much larger than a cherry stone, but thanks to the all-aluminum construction, an outstanding 130 lumen light output can be mastered when used as a landing light, very efficient in x2 technology. This 10mm dwarf with a beam angle of approx. 100 ° is brighter than anything else in its size. Can be used anywhere and fits into the smallest areas and also on the chassis of small models or large scales, small helicopters and a large number of special models.
Direct operation with 2S LiPo (8V), with 3S (12V) an additional resistor must be soldered in. Headlights are designed to be used as landing lights; in the best case scenario, they should be glued to a metallic surface, then an operating time beyond 2-3 minutes is possible without any problems.
Performance: 1.6Wx2 reference power
Voltage: 8V, use enclosed resistor additionally for 12V!
Electricity: 0.13A
Beam angle: ~110°
Light intensity: ~130 Lumen WHITE
Light intensity: ~130 Lumen WARMWHITE
Dimension: D10x6mm
Weight: 1g (without cable)
Ready to use with 1m connection cable and additional resistor for 3S operation
With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
