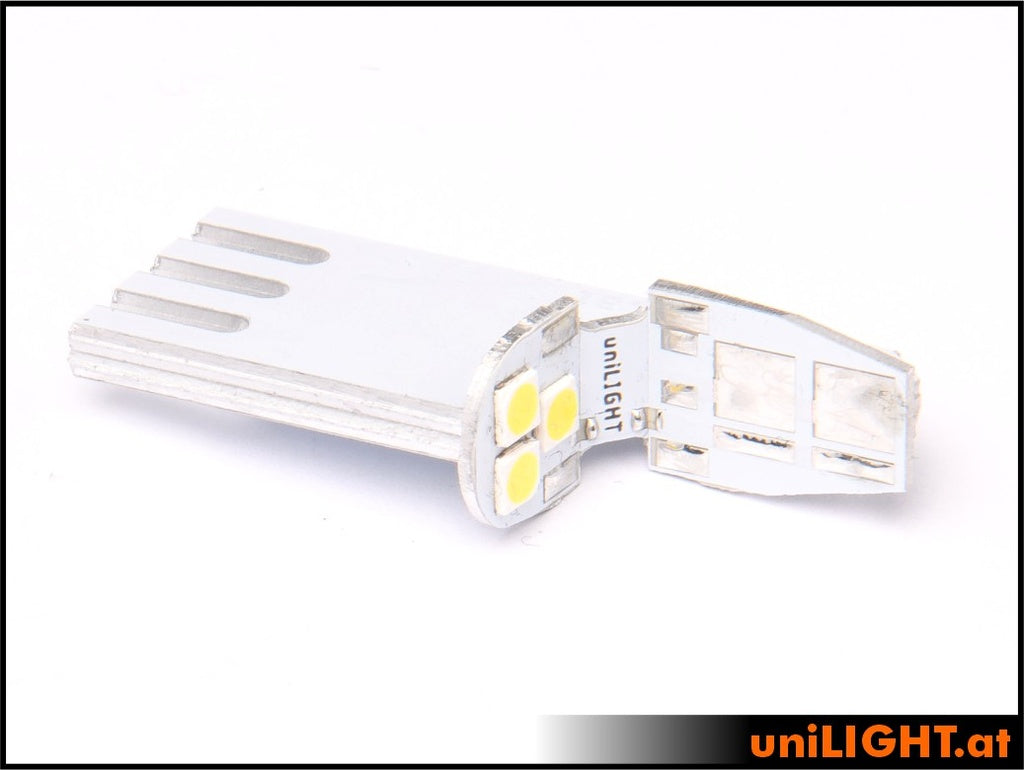

UniLight 10mm REC Navigation light, 4Wx2 REC10-040x2-GN
The RECESSED (=INTEGRATED) series lights are designed for direct installation into wings when cut-outs and coverings that match the wing shape are already in place. This means that no additional caps are included, as these follow the wing's form. This type of integration into the wing geometry is increasingly common, especially in modern aircraft.
Pack includes:
Equipped with 1m silicone cable
Technical Data:
Performance: 4W reference power with 2x technic
Voltage: 8(12)V, 0.4A
Beam angle: ~120°
Light intensity: ~130 Lumen RED
Light intensity: ~220 Lumen GREEN
Light intensity: ~330 Lumen WHITE
Dimensions: D40x16x10mm
Weight: 5g (Without cable)
|
Operating Voltage: 2S/8V or 3S/12V with additional resistor
|
|
Cable Length: 1m Silicone 0.25mm²
|
|
Design: Recessed light / without cap
|
|
Function: Navigation/Position Light
|
|
Dimensions: 10mm
|
Warning Notice:
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
