Name: UniLight 10mm ECO-Spotlight, 1Wx2, Short - White
Brand: UniLight
SKU: SPOT10XE-010x2-WE
Price: 9.9 GBP
Availability: InStock

UniLight 10mm ECO-Spotlight, 1Wx2, Short - White SPOT10XE-010x2-WE

UniLight 10mm ECO-Spotlight, 1Wx2, Short - White

Roll over image to zoom in Click on image to zoom

UniLight 10mm ECO-Spotlight, 1Wx2, Short - White SPOT10XE-010x2-WE

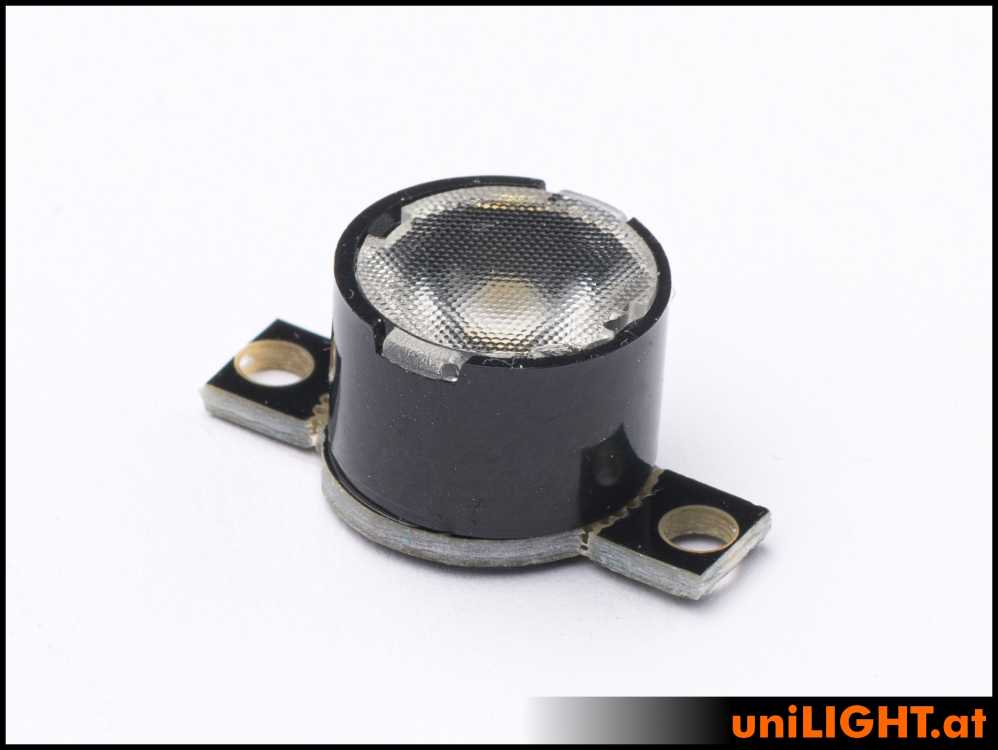

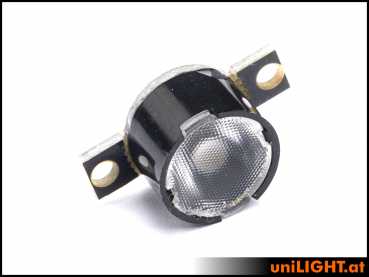

The smallest member of the new ECO spotlight range! The extremely small 10mm headlight is the most compact possible implementation without an external heat sink. Therefore, only 1W reference power can be implemented in headlights - but this is in x2 technology, which is why approx. 85 lumens can be emitted at a 20 ° angle. Top brightness for this dwarf!

The mounting plate has two tabs that can easily be sniffed off when they are not used for assembly.

The spotlights of this ECO series are generally characterized by adequate performance data and a very good price-performance ratio. The great brightness of the ECO headlights is based on an effective optics, the existing light output is well bundled and radiated to the front. This makes them look bright and can be easily seen even in daylight.

Direct operation with 2S LiPo (8V), with 3S (12V) an additional resistor must be soldered in (included). Make sure there is sufficient cooling air during operation. Our headlights are optimized for use in model making and should only be operated for approx. 3 minutes at a time with a fully charged battery without additional cooling - use as landing lights! With other uses, the cooling can of course be improved at any time.

Ready to use with 1m connection cable and additional resistor for 3S operation

With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!

Performance: 1Wx2 reference power
Voltage: 8V, use enclosed resistor additionally for 12V!
Electricity: 0.08A
Beam angle: ~ 20°
Light intensity: ~80 Lumen WHITE
Light intensity: ~80 Lumen WARMWHITE
Dimension: D10x8mm
Weight: 1g (without cable)

Basic Connection Diagram
