Name: UniLight 10,24mm Round Strobe Light, 8W - Red
Brand: UniLight
SKU: RND-080-RT
Price: 15.9 GBP
Availability: InStock

UniLight 10 / 24mm ROUND navigation light, 8W

UniLight 10 / 24mm ROUND navigation light, 8W Red

Roll over image to zoom in Click on image to zoom

UniLight 10,24mm Round Strobe Light, 8W - Red RND-080-RT

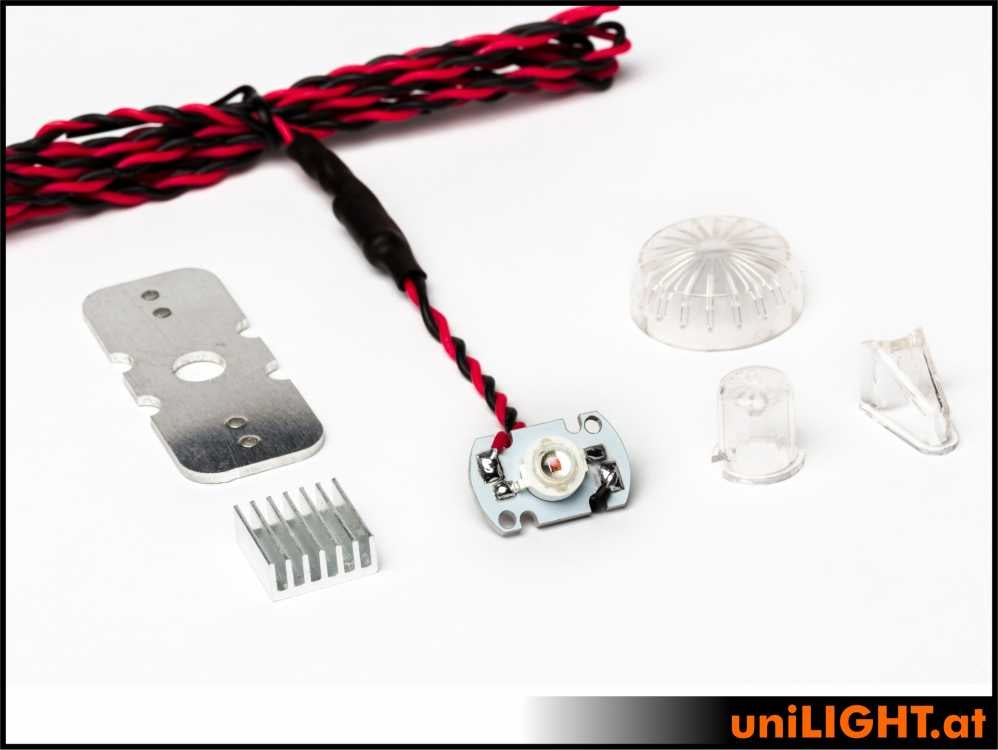

8W point light with two crystal-clear polycarbonate caps (10mm and 24mm). The module is delivered fully wired with an aluminium retaining plate for cooling and assembly. Another small heat sink is also included for alternative assembly with the smallest dimensions. When operating for longer periods, please pay attention to the temperatures; for the 8W module we recommend using a cooling plate AND heat sink.

Technical Data:

Performance: 8W reference power,
Voltage: 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~90 Lumen RED
Light intensity: ~150 Lumen GREEN
Light intensity: ~220 Lumen WHITE
Dimension base plate: 20x50mm
Dimensions:
additional heatsink: 15x15x6mm, self-adhesive
self-adhesive Small cap: D10x12mm + profile expansion
Big cap: D24x10mm
Weight: 8g (without cable)

Design: Round

Cable Length: 1m Silicone 0.25mm²

Operating Voltage: 2S/8V or 3S/12V with additional resistor

Function: Strobe

Delivery Content:

Equipped with 1m connection cable and pre-configured resistor for 2S

Assembly Instruction:

Simply glue the chosen cap and heatsink in place with superglue. The 10mm cap serves as light distribution for concealed installation behind a GRP wall, the 24mm cap can be used for external installation as it completely covers the module. A polycarbonate profile extension is included as an accessory, which can optionally be glued to the 10mm cap.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.

Attention: The LED lights are extremely bright! Never look directly into an LED!

Design: Round

Cable Length: 1m Silicone 0.25mm²

Operating Voltage: 2S/8V or 3S/12V with additional resistor

Function: Strobe

Basic Connection Diagram
