UniLight 10,24mm Round Navigation Light, 4W - Green

Electricity: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~40 Lumen RED
Light intensity: ~75 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Dimension base plate: 10x50mm Dimension
additional heatsink: 15x15x6mm

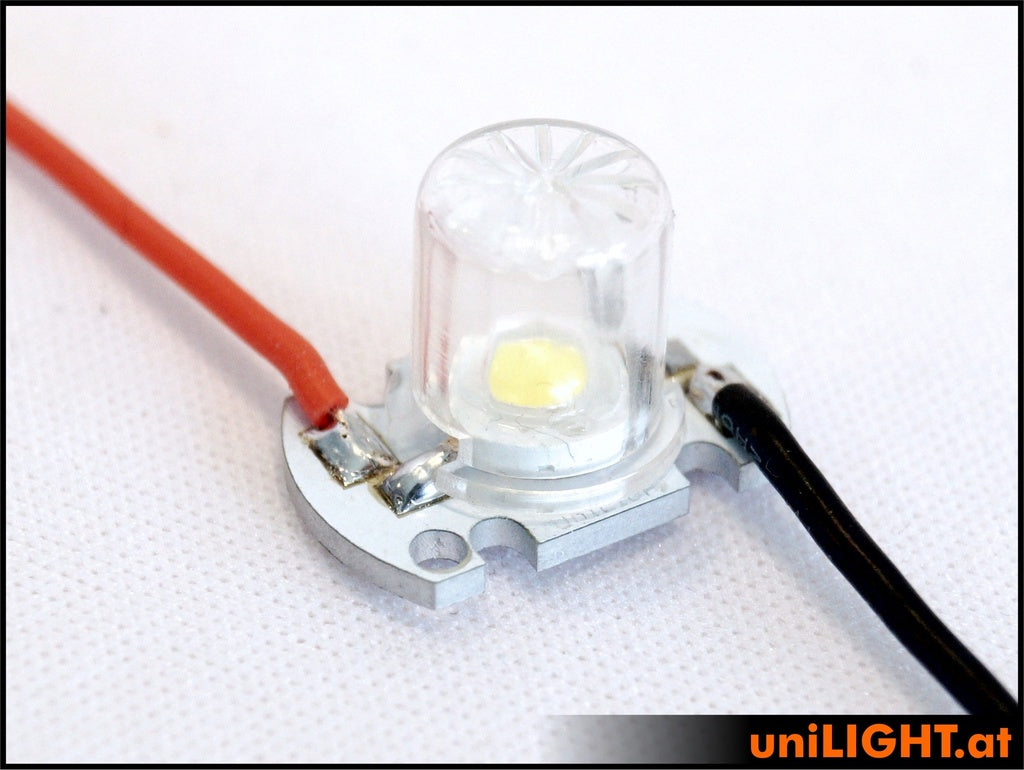

self-adhesive Small cap: D10x12mm + profile expansion

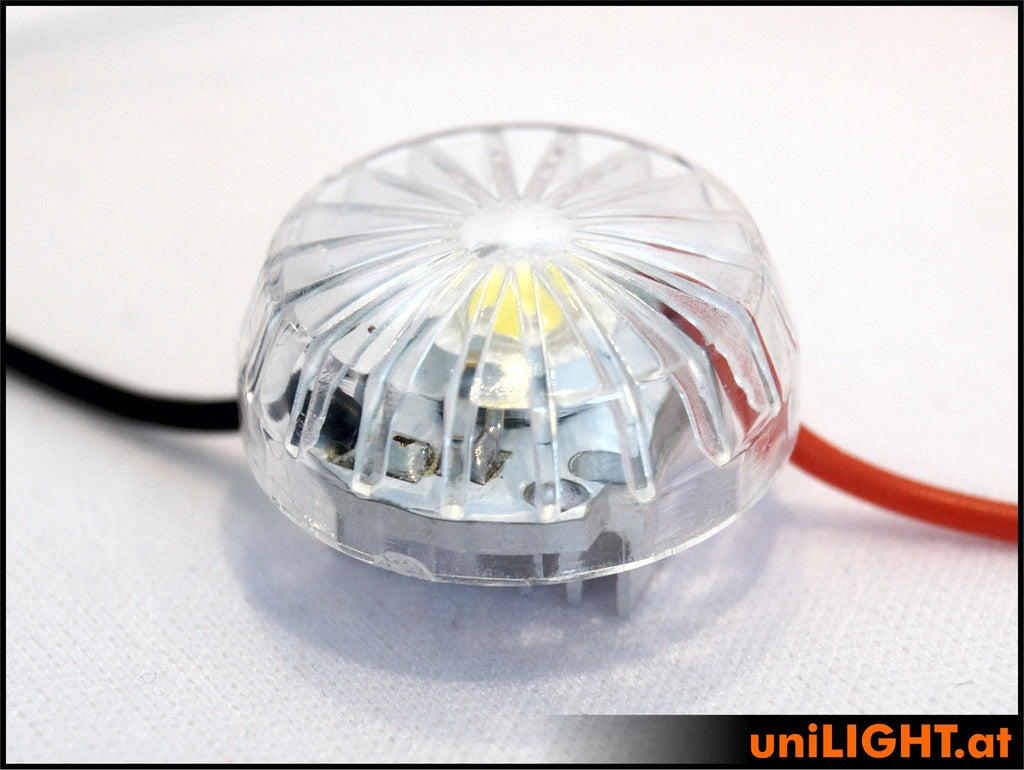

Big cap: D24x10mm
Weight: 6g (without cable)

With 1m connection cable and ready-made series resistor for 2S

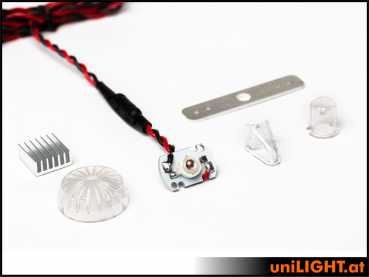

Assembly Instruction:
All you have to do is stick the desired cap and heatsink on with superglue. The 10mm cap serves as light distribution for concealed installation behind a GRP wall, the 24mm cap can be used for external installation as it completely covers the module. A polycarbonate profile extension is included as an accessory, which can optionally be glued to the 10mm cap.

Warning Notice:
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.

Attention: The LED lights are extremely bright! Never look directly into an LED!
