UniLIGHT 1-Channel, BLACK.1+ MODUL-B1PLUS
Our 1-channel control module Black.1+ is the small Entry-level version in the uniLIGHT system - now with the uniLIGHT PLUS interface and configuration via the uniLIGHT DESK. It is easy to use and provides quick results for all model ranges. The main application, however, is the use of an ACL or BEACON light or only when switched on headlights.
New features The PLUS Series
Configuration classic operation and custom light patterns can be set
Software compatible with the uniLIGHTDESK
Dynamik more beautiful, faster and sharper defined lighting effects with 32bit depth
Safety basic short-circuit protection of the outputs, undervoltage and temperature protection possible
Master-Slave no switch is necessary in the load circuit, it is only activated by the remote control
Special functions softer Switching transition, navigation + flash sports function, minimum and maximum level
Technical Data:
Control side receiver 3.6-9.6V
approx. 6g without cable
Dimensions 45x16x5mm
Light signals 1 channel with 6A to 16V
Maximum load 10A short time
Galvanically isolated system
14+2 classic variable speed lighting scheme
2+1 custom light scheme
Delivery Content:

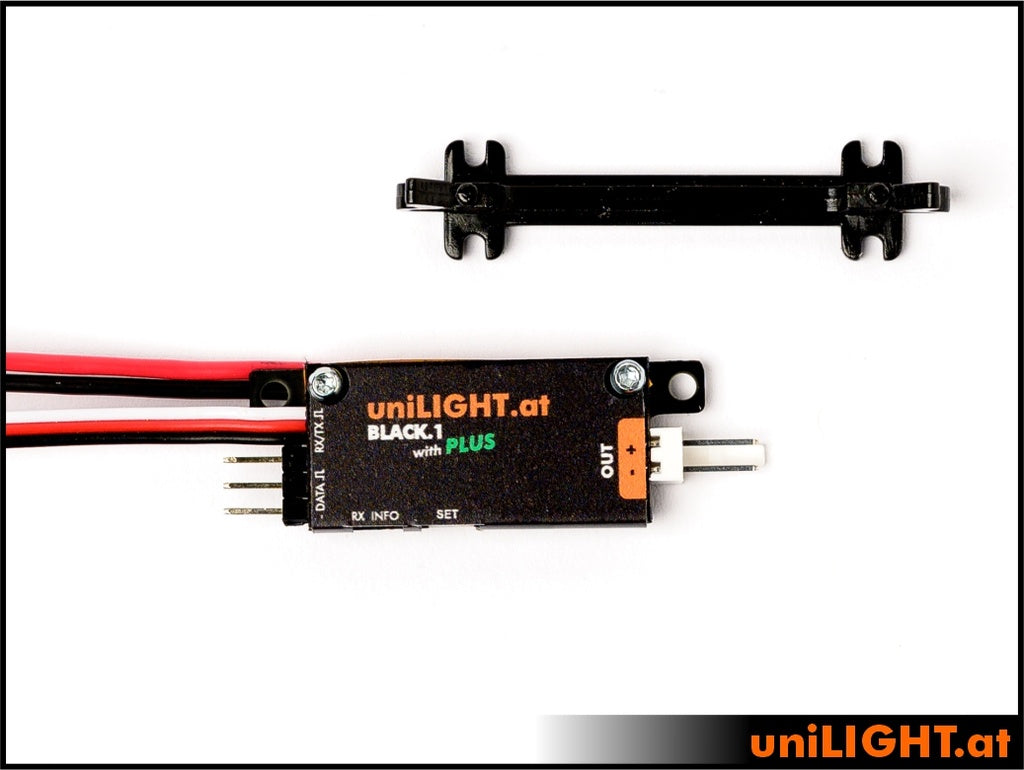

Includes 1 quick-snap mounting bracket and a manual
