Theta Low Profile F3C Set DH1/TH1 PEEK TS-F3CLP
F3C LOW PROFILE brushless servo
Servo characteristics can be adjusted by NFC. Support CGY760R by default. Support 760us.

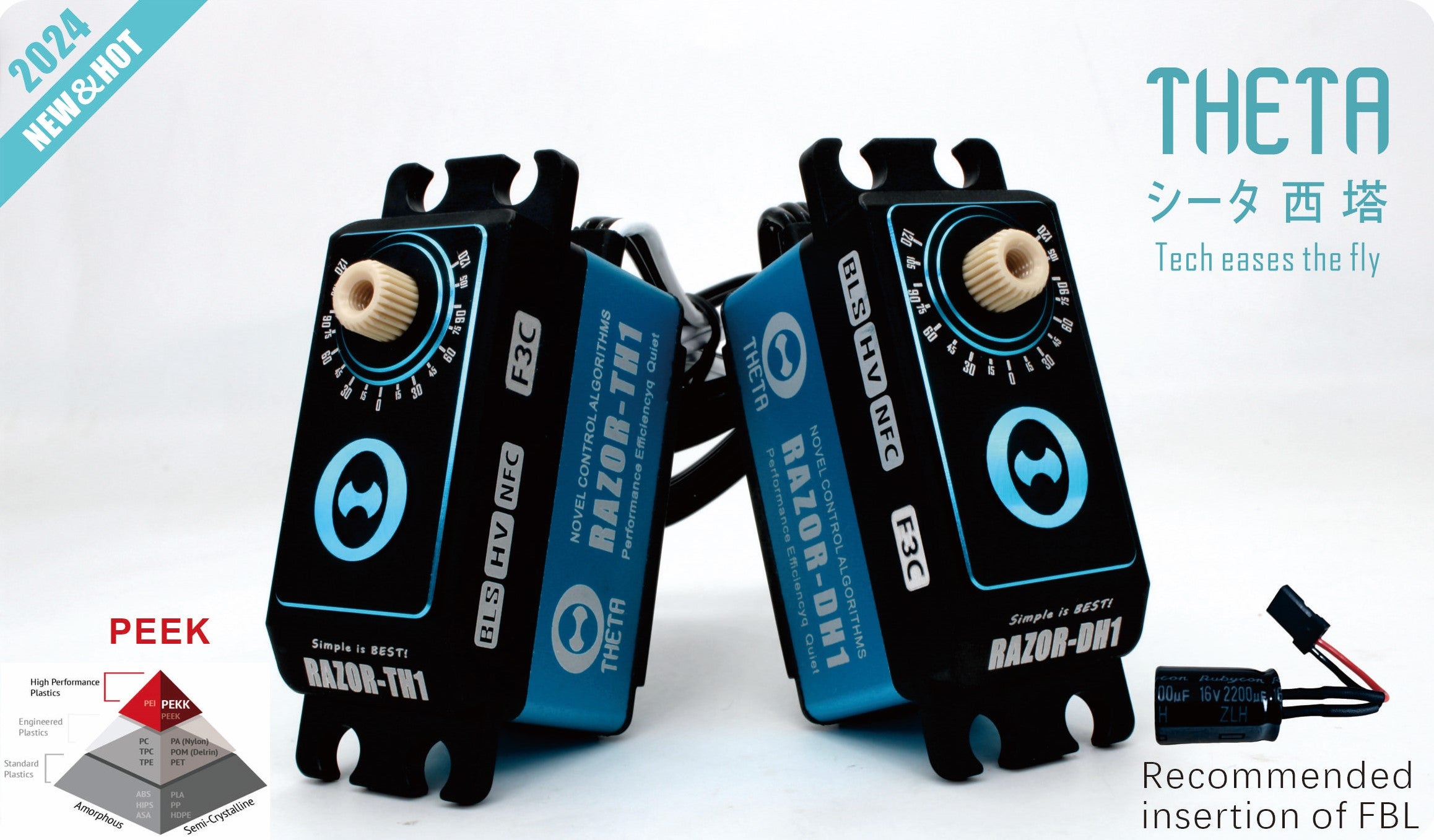

3 x RAZOR-DH1-F3C + 1 x RAZOR-TH1-F3C
Neutral pulse width: 1520us/760a (Wide band/narrow)
Frequency Range: 50~400Hz
Limit angle: 180±10° (500-2500μsec)
Operating travel: 90° (1000-2000μsec)
Rotating distance: Adjustable
Connector wire length: 200±5mm
Connector wire gauge: #22PVC
Dead band width: 1-4μsec
| Voltage
|
Current |
DH1 Speed |
DH1 Torque |
TH1 Speed |
TH1 Torque |
| 5.0V |
4.0A |
0.108s/60°
|
26Kgf.cm |
0.087s/60°
|
19Kgf.cm |
| 6.0V |
4.0A |
0.09s/60°
|
28Kgf.cm |
0.072s/60°
|
21Kgf.cm |
| 7.4V |
4.0A |
0.08s/60°
|
31Kgf.cm |
0.064s/60°
|
23Kgf.cm |
| 8.4V |
4.0A |
0.07s/60°
|
34Kgf.cm |
0.056s/60°
|
24Kgf.cm |
