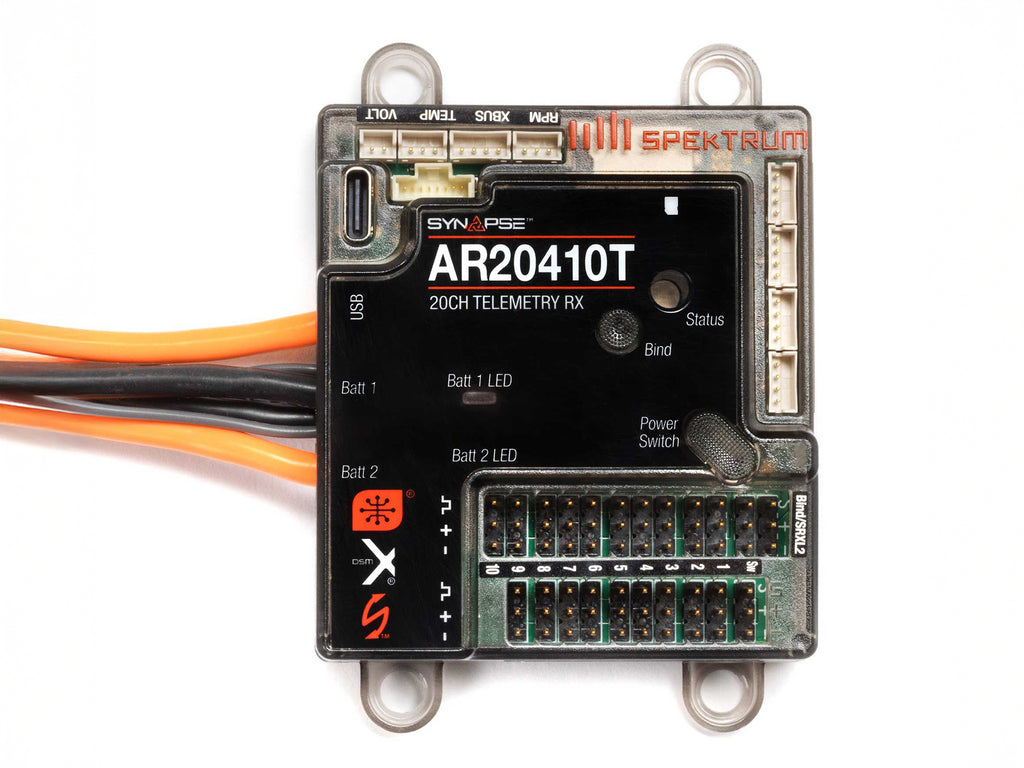

Spektrum AR20410T 20-Channel PowerSafe Telemetry Receiver SPMAR20410T
The Spektrum™ AR20410T PowerSafe™ receiver is a feature-packed 20-channel receiver with full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current, such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual 13AWG battery input leads with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system. Now, with innovative features like fast boot recovery, regenerative servo support, remote sleep mode, and compatibility with the all-new Synapse AS3X+ / SAFE module.
If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR20410T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft. As an added measure of safety, the Spektrum designed the AR20410T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.
A ground-breaking feature on the AR20410T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.
Paired with the new Spektrum AR20410T PowerSafe receiver, it is an incredible combo of advanced stabilization and cutting-edge electronics.
- Compatible with the Synapse AS3X+ / SAFE Flight Stabilization Module (SPMAS6000, available separately)

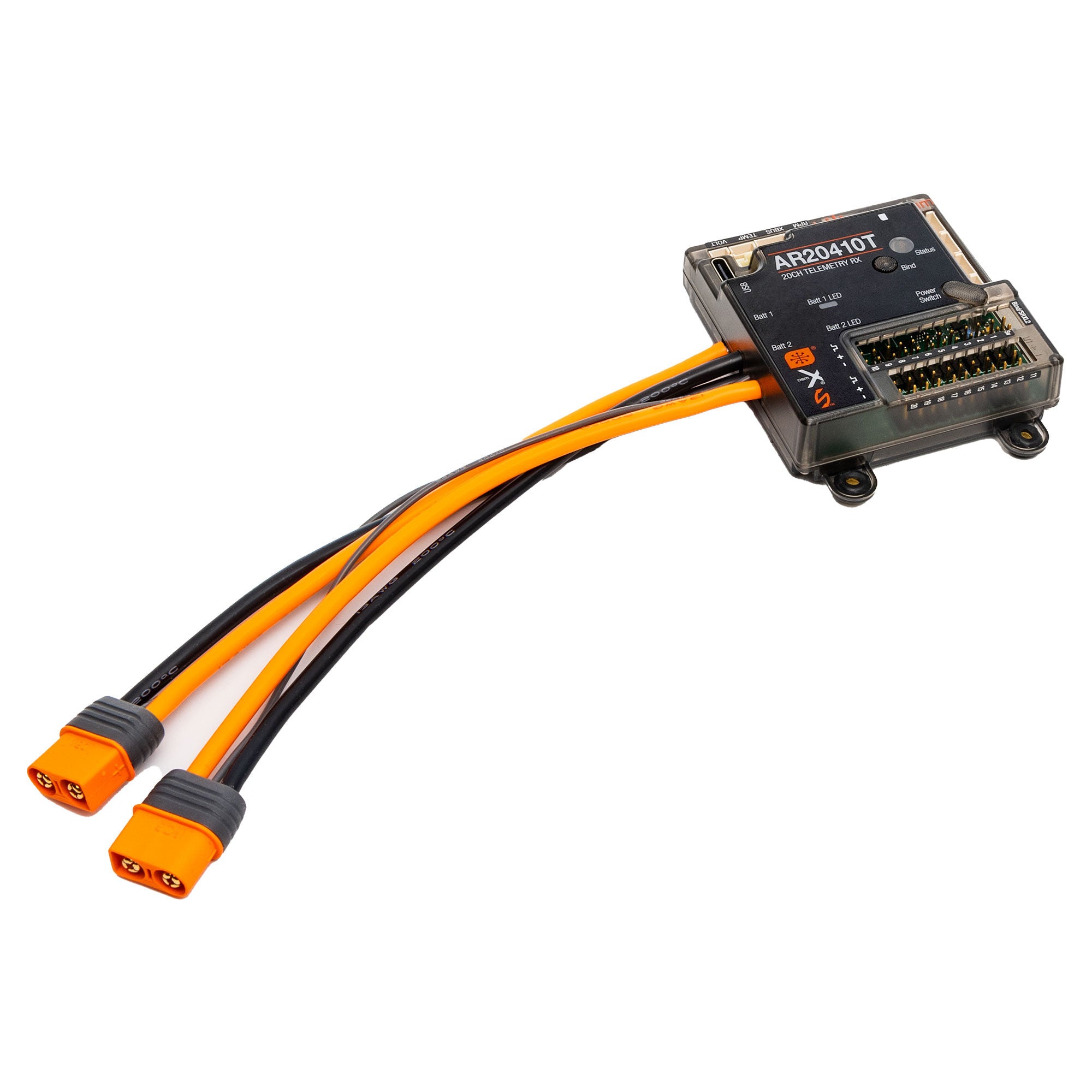

- Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
- Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
- Fast boot recovery technology allows the gyro system to be rebooted in flight upon any electrostatic discharge or power interruption, providing pilot control within milliseconds using a saved stabilization calibration
- Regenerative servo support for any number of servos
- Forward programming for easy adjustments to failsafe settings, servo frame rate settings, AS3X+ settings, and more
- USB-C port for easy product registration and firmware updates
- 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
- Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
- Integrated Black Box telemetry log saves all telemetry data automatically when a
- Micro SD card is installed (Micro SD card not included)
- Integrated status LED provides helpful information during start-up, including warnings and mode indicators
- SRXL2 connectivity for easy, one-wire connection to supported devices
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- Receiver pack energy, voltage sensor, and flight log telemetry data available without the need for additional sensors
- Temperature, imbalance, cycles, and cell voltage telemetry data available when using Smart batteries
- When using an SPM4651T remote receiver, there is full-range telemetry with an integrated barometer providing altitude and vario telemetry without additional modules
- Included Momentary Pushbutton allows booting or shutting down the system. However, shutting down the system requires a specific press-and-hold pattern to prevent accidental shutdowns in case the button fails or disconnects. The switch itself must not be substituted. Additionally, there is a power switch on the receiver itself that can be used instead
- Rubber grommet hard mounts and minimalistic labelling help produce the cleanest model setups
- Capable of high-speed 11ms frame rates. It can be boosted to 5.5ms, if the servo supports it, for improved stabilization when using Synapse
- Binding is easier than ever, with four options to initiate the bind process
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors, and X-bus for telemetry sensor expansion
- Compatible with all Spektrum DSMX transmitters
- Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)
NEXT GENERATION IN FLIGHT STABILIZATION
The AR20410T is compatible with the Synapse AS3X+/SAFE Stabilization Module (not included), providing enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.
PATENTED POWERSAFE™ REDUNDANCY SYSTEM
The Spektrum™ AR20410T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with True dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.
In The Box:
(1) AR20410T 20-Channel PowerSafe Receiver
(1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
(3) SPM9747 SRXL2 DSMX Remote Receivers
(1) 6" SRXL2 Remote Receiver Extension
(1) 12" SRXL2 Remote Receiver Extension
(1) 24" SRXL2 Remote Receiver Extension
(1) 36" SRXL2 Remote Receiver Extension
(2) Battery IC3 Connectors
(2) Charge Receptacles
(1) Aircraft Telemetry Volt Sensor
(1) Soft Switch
(1) Instruction Manual
