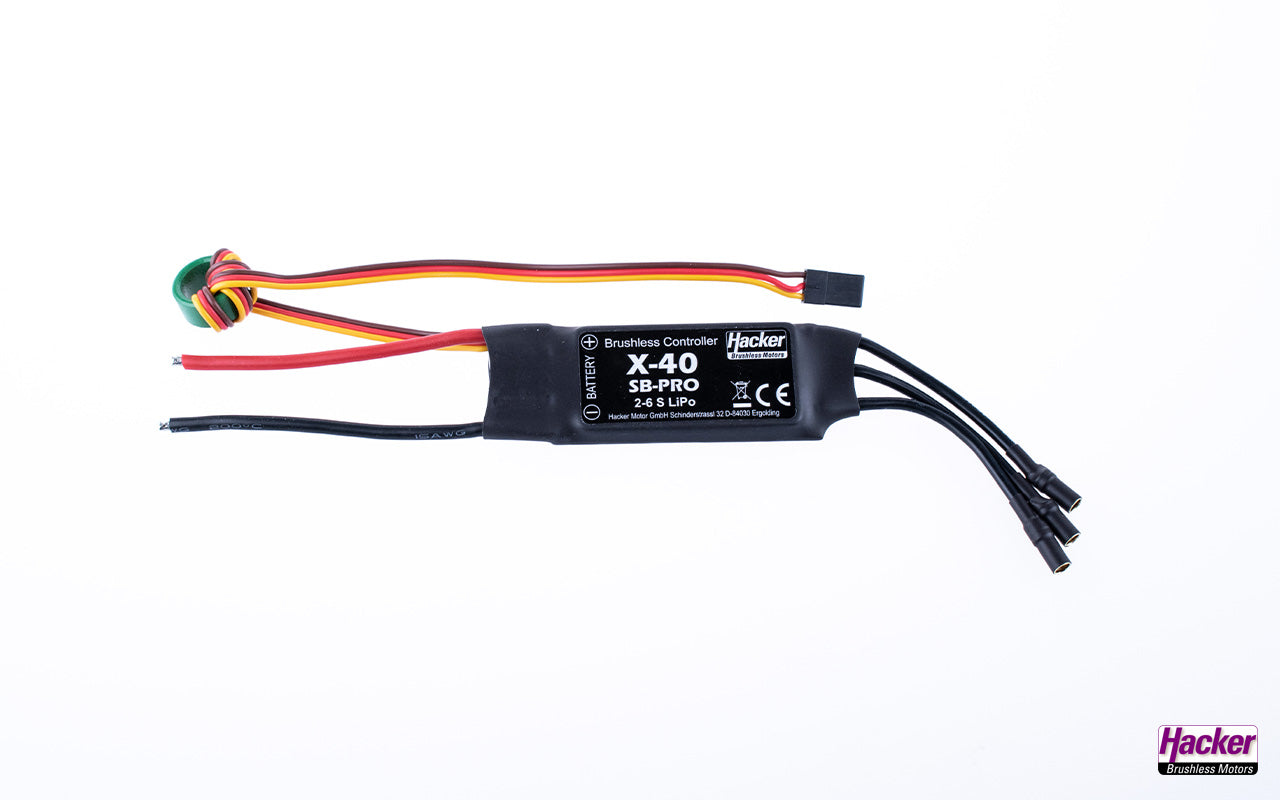

Speed Controller X-40-SB-Pro 2 to 6s ESC from Hacker 87200004
The Hacker X-Pro series is a sensorless speed controller specially developed for brushless motors. All variants are characterised by high and stable performance, compact design and low weight. The linear BEC is set to 5.5 volts and can be operated with 2-6 servos. From the X-7-Pro onwards, the speed controllers can be programmed via the separately available USB interface V2. You will find this in the Accessories tab, among others. Alternatively, each X-Pro speed controller can also be programmed via the remote control. The various adjustable operating modes make X-Pro speed controllers suitable for all flight applications such as powered flight, electric gliders and helicopters.
Standard settings for fixed-wing models as delivered
- Bremse / brake: Aus / off
- Akku-Typ / battery type: LiPo
- Unterspannungserkennung / recognition of undervoltage: 3,2V / Zelle* / 3.2V / cell*
- Verhalten bei Unterspannung / behavior under voltage: Zurückregelung / reduce power
- Beschleunigung (Gasannahme) / acceleration: Schnell / fast
- Timing: Auto
- Frequenz / frequency: 8KHz
Scope of delivery
1x speed controller X-40-Pro with BEC, 1x manual
| Specifications |
| Operating range [Cells] |
2 - 6 |
| Permanent current [A] |
40 |
| BEC Voltage [V] |
5,5 |
| Permanent current BEC [A] |
3 |
| Dimensions and weight |
| Dimensions LxBxH [mm] |
75x28x10 |
| Weight with cables [g]/[oz] |
52 |
| Delivery contents |
| Settings |
Transmitter / USB Interface |
| Plug to battery |
XT60 |
| Socket to motor |
3,5 |
