The small powerful RC telemetry sensor measures and transmits voltage / current / power / capacity / energy / height / Vario

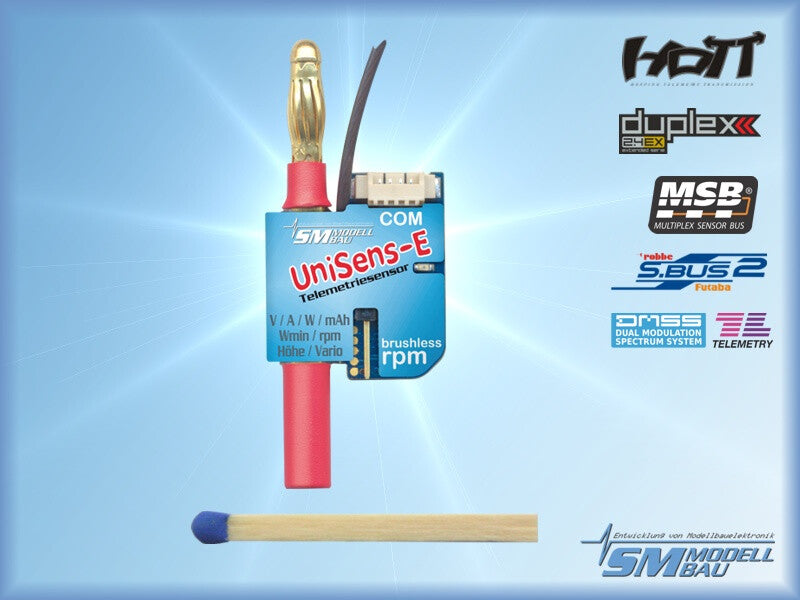

The UniSens-E is a pure Telemetry sensor especially for electric models. It is so small and lightweight, but at the same time so powerful that it can be used in almost every model.
According to our philosophy to support as many systems as possible, the UniSens-E the language of Jeti Duplex, Multiplex M-LinkGraupner HoTT, Futaba, JR DMSS, FrSky, Spectrum (via spectrum adapter) and PowerBox Core.
The used Telemetry must be in UniSens-E only once in the settings. This happens either via our PC program "UniSens-E Tool" or with the UniDisplay. In the delivery state, HoTT GAM is selected.
To change the settings via PC or for Firmware updates is a suitable USB interface as our order no. 2550 or an existing USB connection cable as of Jeti, Multiplex or Graupner needed. See also the instructions.

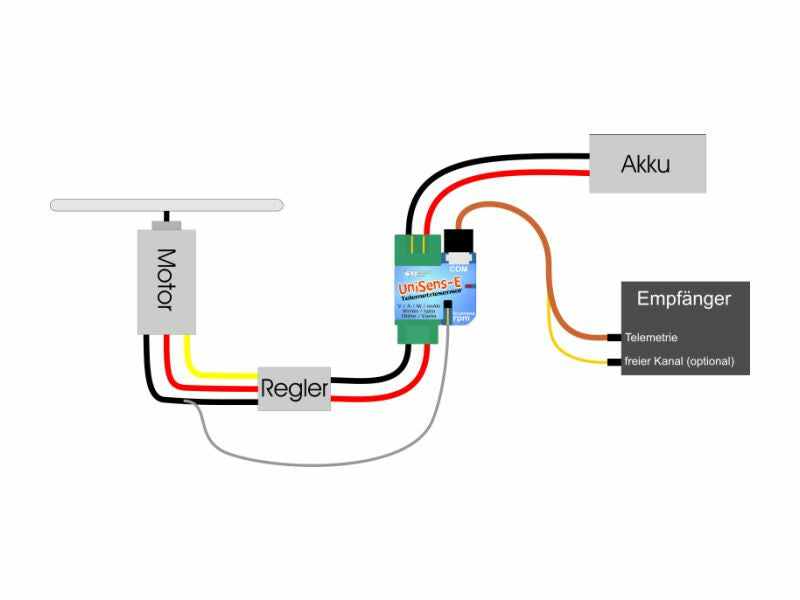

Without further sensors the UniSens-E measure the complete drive, i.e. voltage, current and capacity.
Since a barometric (air pressure) height sensor with high resolution is also integrated, in addition to the height measurement, a Vario with the UniSens-E realized.
Likewise, extensive alarms are programmable, which Telemetry via the respective station.
The UniSens-E is available with different plug-in systems, so that nothing has to be soldered normally. The current measurement range extends symmetrically in both directions. This does not play a role in the plug occupancy, i.e. whether the battery has male or female at the positive pole. The measuring direction is simply adjusted in the setup.
All measurements of the UniSens-E also directly viewed live and all settings and alarms are programmed.
Whether sailor, aerobatic machine, helicopter, HLG or slowflyer, the UniSens-E due to its low weight and compact size, it can be used in almost every area. Of course, the UniSens-E not only suitable for aircraft models. It can also be installed in RC boats, RC cars, etc.
you purchase with the UniSens-E a universal one in all respects RC telemetry sensor, which exploits the possibilities of modern electronics, to be a great help for you as a small helper in dealing with your RC models.

And the UniSens-E can do this:

• Complete measurement of electric drives with current, voltage, power, capacitance, speed and height measurement

• Integrated brushless speed sensor (not at 55 A versions)

• Full telemetry support for Jeti Duplex, Multiplex M-Link, Graupner HoTT, Futaba, JR DMSS, FrSky, Spectrum (via spectrum adapter) and PowerBox Core

• Height measurement with automatic zeroing after switching on

• Barometric Vario

• Current measurement range depending on version up to 55 A / 140 A / 280 A in both directions, voltage up to 60 V
  (the maximum current load capacity of the plugs used must not be exceeded!)

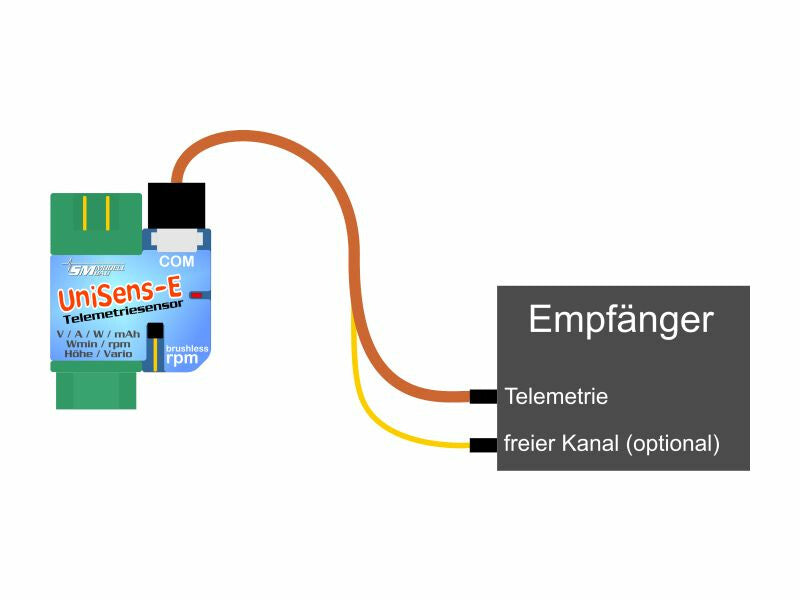

• Connection for receiver signal for remote control of certain functions

• Direct connection to the GPS logger possible for data recording in a file

• Measurement of receiver accumulation voltage

• Power supply by receiver

• Current status is signalled via LED

• Direct viewing of the measured values live with our UniDisplay

• Parameter settings via PC, UniDisplay and Telemetry possible

• PC software for settings and updates (SM UniSens-E Tool) is available here

• Free firmware updates via PC with our USB interface (order no. 2550) or with already existing USB connection cables such as Jeti, Multiplex or Graupner possible (the firmware file can be found here)

• due to its compact size and low weight, it can be used almost anywhere

For technical data and the complete range of functions, please refer to the operating instructions.
