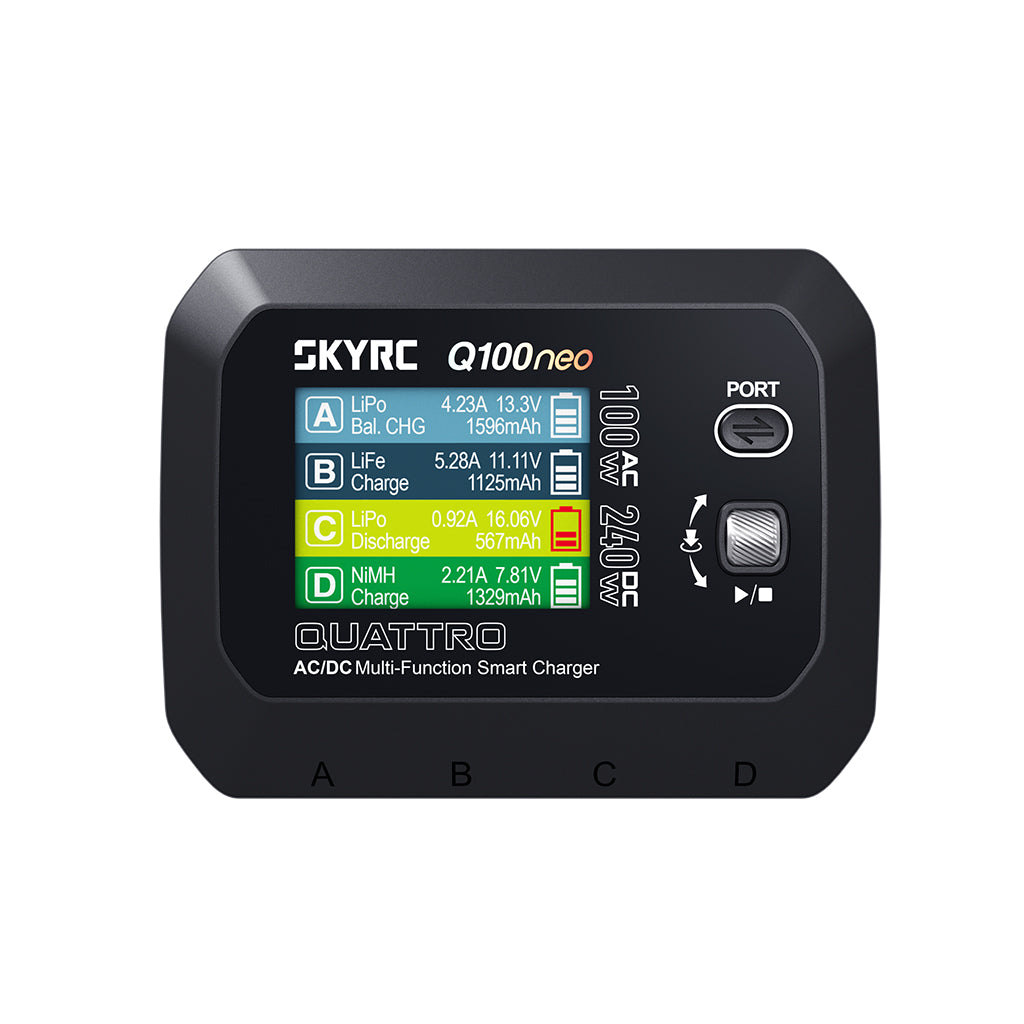

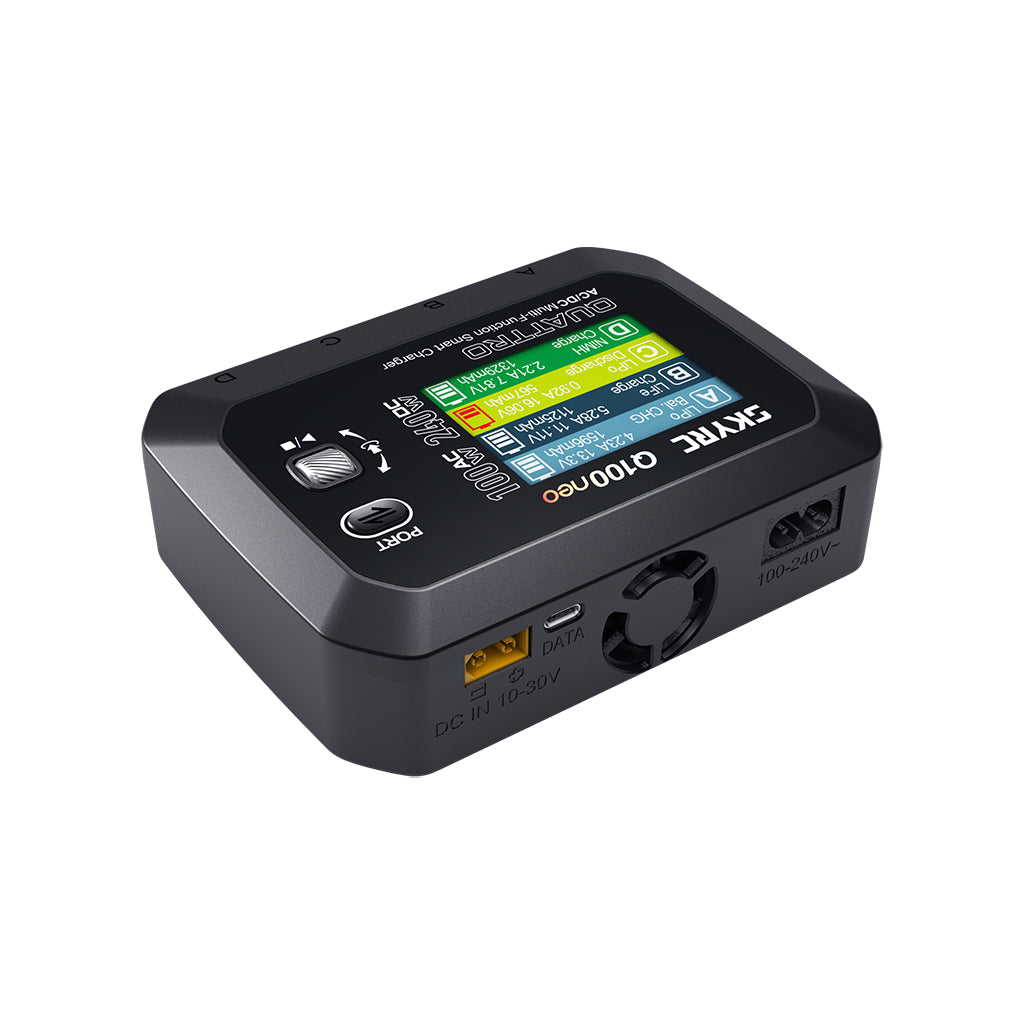

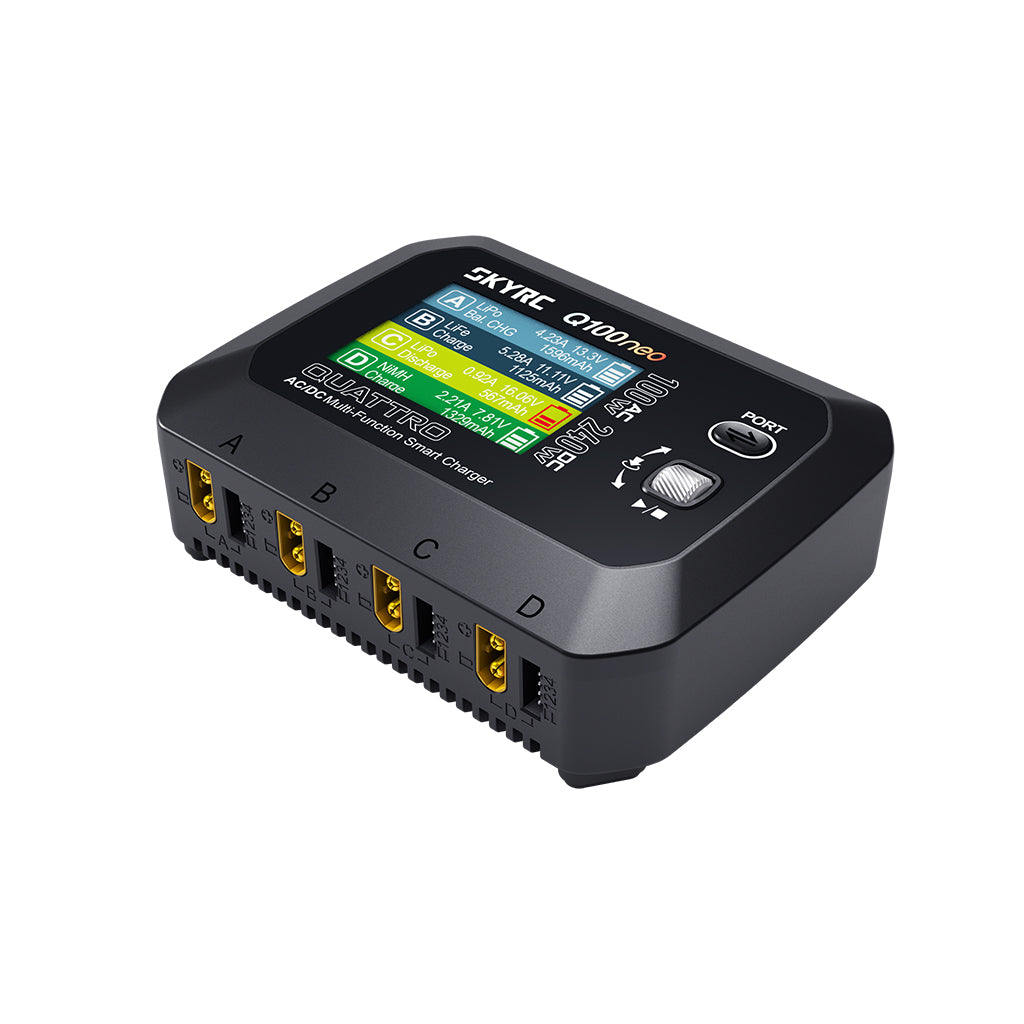

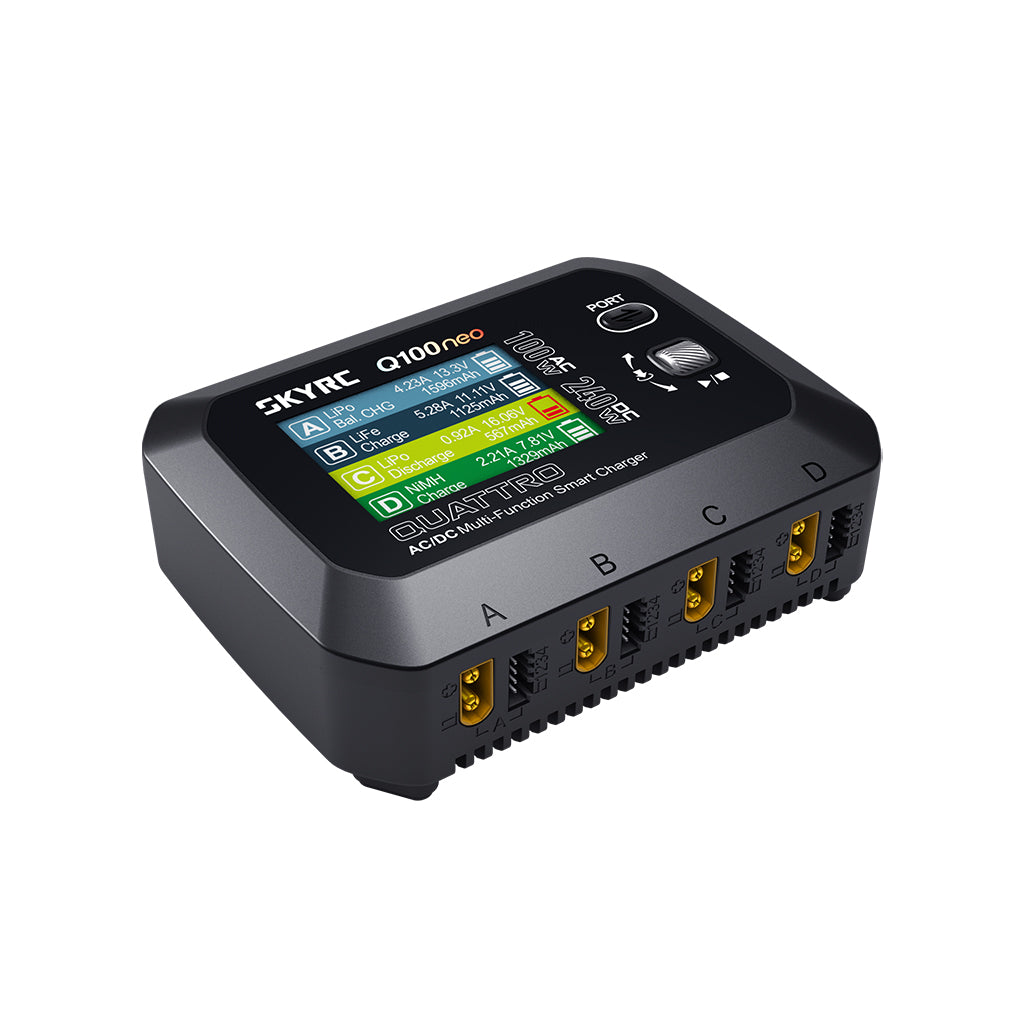

SKY RC Q100neo
LiPo/LiHV/LiFe/LiIon: 1-4S AC/DC Multi-Function Quad Smart Charger
Introducing the SKY RC Q100neo AC/DC Multi-Function Smart Charger upto 4s
Pure Power. Precise Control. Quad Output.
Q100neo powers four independent outputs, each up to 6A, to charge multiple chemistries at once.
From drone soccer to FPV to RC racing, it keeps every pack ready—cutting downtime so you’re back in action faster. With 600 mA balance current and ±0.02 V precision, efficiency and accuracy are built in.
Charging redefined. Effortless, every time.
Compact Size. Mighty Power.
Q100neo arrives in a bold new design—small in size, yet brimming with performance. Agile and tough, it delivers up to 100W on AC and 240W on DC.
Whether plugged in indoors or powered by DC in the field, Q100neo unleashes instant energy to bring your batteries back to full strength—fast.
AC/DC Flex. Fast, Unleashed.
Switch seamlessly between AC or DC, adapting to any setup with ease.
Whether you’re just starting out or chasing the podium, Q100neo delivers stable performance every time.
One charger. Endless scenarios.
Do More With One Charger! Multiple Chemistries Go.
With exceptional versatility, Q100neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
Unlock the full potential of your battery arsenal with Q100neo– versatility multiplied capability.
Discharging Multiplied by Balance Port
The built-in balance port enables Q100neo to discharge faster, allowing it to discharge at up to 15W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.
Digital Power
Q100neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, Q100neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 6.0A, with a precision of 0.1A.
This quad output digital DC power supply provides four independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.
Smart Power Distribution Seamless Charging Flexibility.
Under AC input, when two ports are in use, Q100neo will provide maximum power output to that specific ports. The charging power is distributed dynamically and intelligently when all four ports are simultaneously in use.
Once a particular port has completed its charging task, the remaining port(s) will receive increased power for faster charging. This intelligent and efficient allocation of power ensures optimal utilization at all times.
The charging capabilities of Q100neo are highly flexible, allowing for versatile charging options.
Rectifier Circuit, Efficiency Multiplied
The Q100neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
Charge in Your Language
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
Specification
Size and Weight
Case Size: 140x108x43.5mm
Weight: 491g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
AC Input: 100V ~ 240V（50Hz/60Hz）
DC Input: 10V~30V
Charge Power:
AC Input: 100W(±10%)
1 port: Max. 60W
2 ports: 50W + 50W
3 ports: 33W + 33W + 33W (Total power divided by 3)
4 ports: 25W × 4
DC Input: 240w(±10%) 60W *4
Discharge Power:
Main port: 5W
Balance port: Max. 10W（LiPo/4S）
Charge and Discharge
Charge Current: 0.1A~0.5A（±0.1A） 0.6A~6.0A（±10%）
Balance Current: Max. 600mA
Working Mode:
LiPo/LiFe/Li-ion/LiHV: Balance CHG, Charge, Discharge, Storage
NiMH/NiCd: Normal, Discharge, Repeak, CYCLE_D_C, CYCLE_C_D
Pb: Normal, AGM Charge, Cold Charge, Discharge
Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-4S
NiMH/NiCd: 1-8S
Pb: 3S/6S
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
