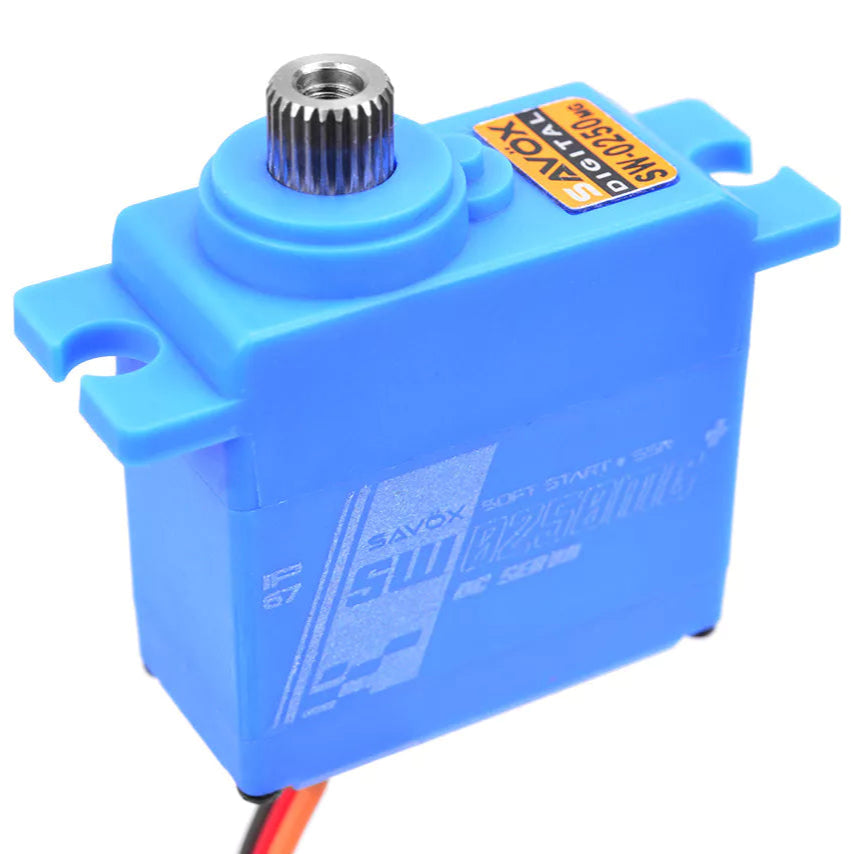

Savox SW-0250MG+ Waterproof Digital Micro Servo 5kg/0.11s@6v

Save 10%
SavoxSKU: SAV-SW0250MG+

Price:
Sale price£27.89 Regular price£30.99
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days
 More payment options

Description

Savox SW-0250MG+ Waterproof Digital Micro Servo 5kg/0.11s@6v SAV-SW0250MG+

The Savox SW0250MG+ waterproof digital micro servo is the newest addition to the Savox waterproof line-up. It offers a great balance of speed and torque at .11 seconds and 69.4 ounces at 6 volts. With an included 1 year warranty against manufacturing defects, you simply can't go wrong with Savox.

Savox SW0250MG+ Servo Features:

  • Strong metal gear train for added durability.
  • Waterproof case design.
  • Ideal for cars and boats subject to water or snow.
  • Ideal for Traxxas 1/16 vehicles.
  • 25 tooth spline

Spec Check:

  • Dimensions(mm): 29.5x14x32.5
  • Weight(g): 25g**
  • Speed(@6.0V sec/60): .11
  • Torque(@6.0V oz-in): 69.4
  • Gear: Metal & Plastic
  • Bearing: 1BB
  • Case: Aluminium
  • Horn gear spline: 21T

 **Weight listed does not include wires or horns.

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

General Info

Item Nr - SW-0250MG+
Barcode - 4710006994505
Brand - Savöx

Servo - Specs

Speed 60°/Sec @ 4.8V - 0.14
Speed 60°/Sec @ 6.0V - 0.11
Torque kg/cm @ 4.8V - 3.5
Torque kg/cm @ 6.0V - 5
Quiescent Current (mA) - 5
Rated Current (mA) - 100
Blocking Current (mA) - 1250

Servo - Dimensions

Servo Type - Mini Servo
Spline Type - 25T Spline
Length (mm) - 29.5
Width (mm) - 14
Height (mm) - 32.5
Weight (g) - 25

Servo - Technology

Technology - Digital
Operating Voltage (V) - 4.8V - 6.0V
Servo Motor - DC Core Motor
Servo Protection - Waterproof IP67
Servo Positioning - VR Potentiometer - Direct Drive
Servo Gears - Metal Gears
Servo Case - Composite Case
Connector - JR Universal + Coloured Lead
