Savox SW-0231MG+ Waterproof Digital Servo 15kg/0.17s@6v

Save 15%
SavoxSKU: SAV-SW0231MG+

Price:
Sale price£30.59 Regular price£35.99
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days
 More payment options

Description

Savox SW-0231MG+ Waterproof Digital Servo 15kg/0.17s@6v SAV-SW0231MG+

The SW0231MG+ is a budget friendly waterproof digital servo with great torque for many applications. This brushed servo features a speed of .17 and 208.0 oz-in of torque at 6.0V. It combines leading edge technology with super high 12-bit (4096) resolution and metal gears for your greater precision when dodging puddles. This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Savox SW0231MG+ Servo Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and metal gears.
  • Waterproof.
  • Brushed motor
  • Extremely strong metal gears ensure long-life and durability.
  • Our servos are totally green - from materials to production, these servos are environmentally friendly.
  • Ideal for RC cars, trucks, buggies, and boats.

Spec Check:

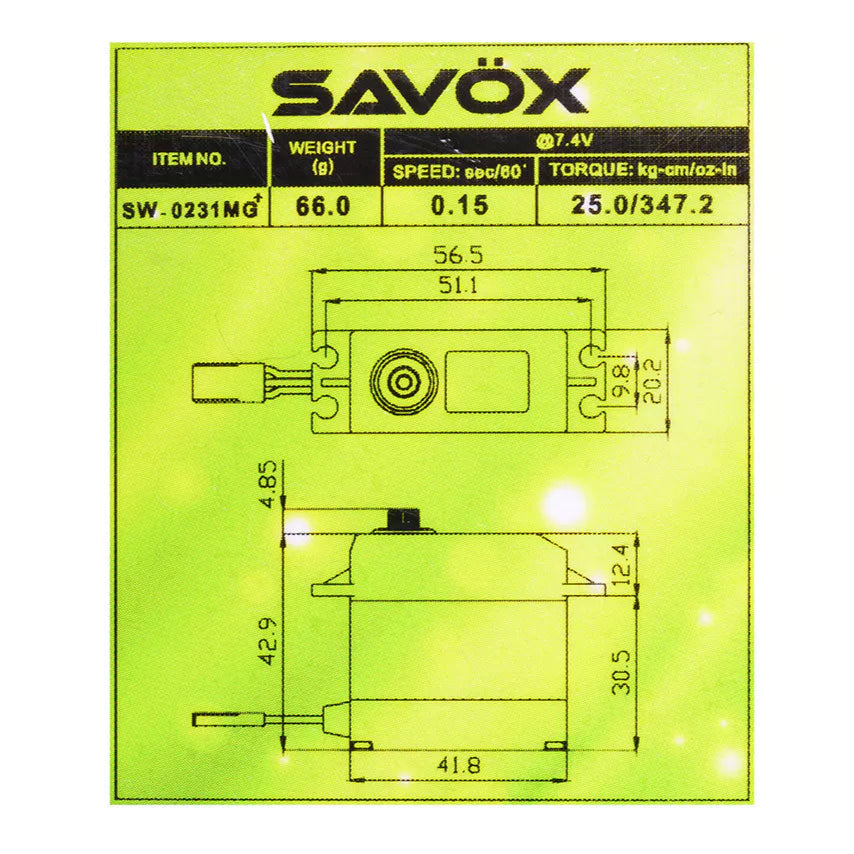

  • Dimensions(mm): 41.8x20.2x42.9
  • Weight(g): 66
  • Speed(@6.0V sec/60): .17
  • Torque(@6.0V oz-in): 208.0 (15kg)
  • Gear: Metal
  • Bearing: 2BB
  • Case: Plastic
  • 25 Tooth Spline

 **Weight listed does not include wires or horns.

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

General Info

Item Nr - SW-0231MG+
Barcode - 4710006994376
Brand - Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V - 0.17
Speed 60°/Sec @ 7.4V - 0.15
Torque kg/cm @ 6.0V - 15
Torque kg/cm @ 7.4V - 25
Quiescent Current (mA) - 5
Rated Current (mA) - 120
Blocking Current (mA) - 4800

Servo - Dimensions

Servo Type - Standard Servo
Spline Type - 25T Spline
Length (mm) - 41.8
Width (mm) - 20.2
Height (mm) - 42.9
Weight (g) - 66

Servo - Technology

Technology - Digital
Operating Voltage (V) - 6.0V - 7.4V
Servo Motor - DC Core Motor
Servo Protection - Waterproof IP67
Servo Positioning - VR Potentiometer - Direct Drive
Servo Gears - Metal Gears
Servo Case - Composite Case
Connector - JR Universal + Coloured Lead
