Savox SV-1232MG HV Micro 400 Size Alloy Case Servo 5kg/0.05@7.4v

Save £6.40
SavoxSKU: SAV-SV1232MG
Price:
£57.59 £63.99
Stock:
Sold out

Description

General Info

Item Nr - SV-1232MG
Barcode - 4710006992662
Brand - Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V - 0.06
Speed 60°/Sec @ 7.4V - 0.05
Torque kg/cm @ 6.0V - 4
Torque kg/cm @ 7.4V - 5
Quiescent Current (mA) - 5
Rated Current (mA) - 180
Blocking Current (mA) - 2200

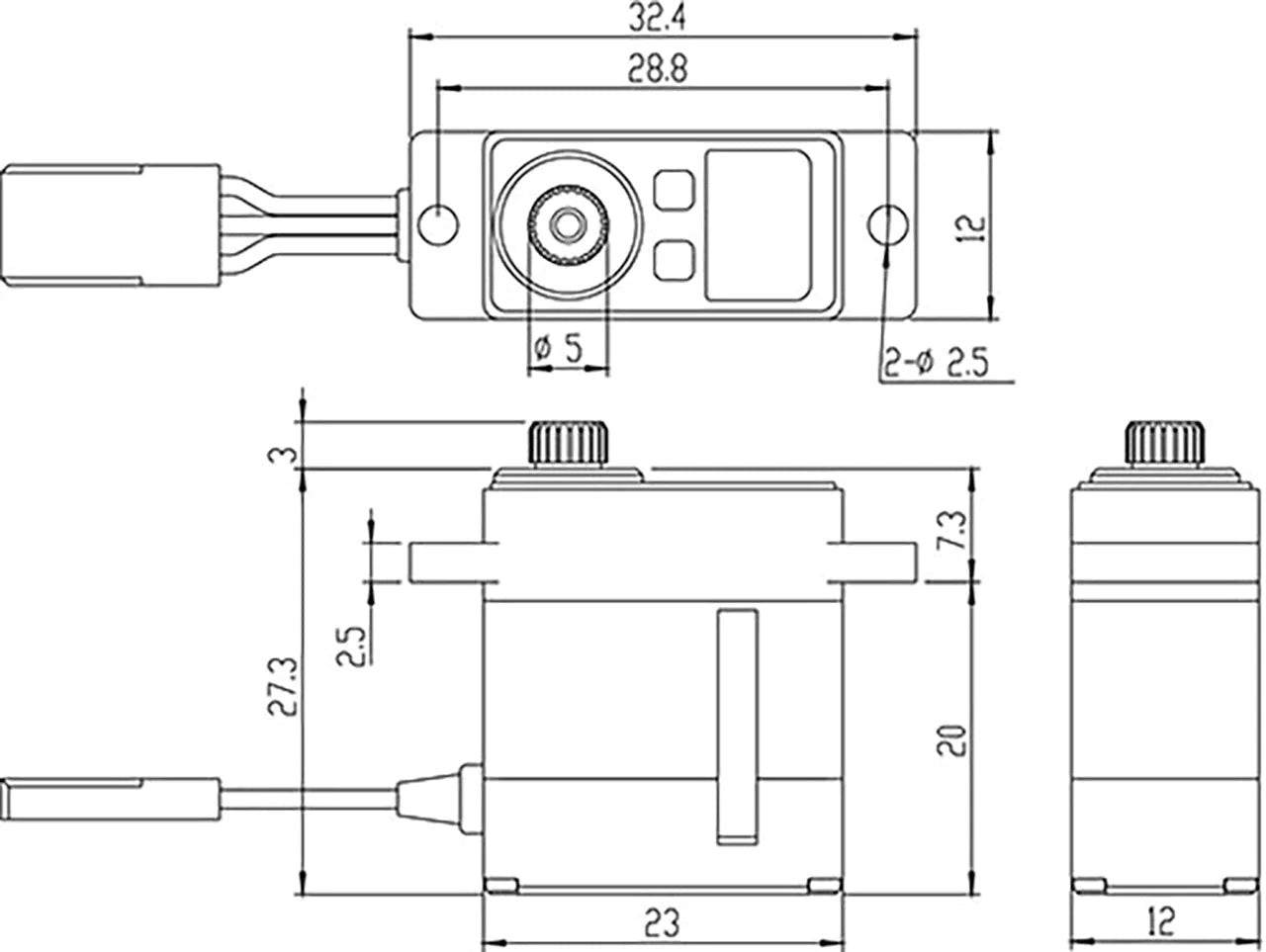

Servo - Dimensions

Servo Type - Micro Servo
Spline Type - 21T Spline
Length (mm) - 23
Width (mm) - 12
Height (mm) - 27.3
Weight (g) - 23

Servo - Technology

Technology - Digital HV
Operating Voltage (V) - 6.0V - 7.4V
Servo Motor - Coreless Motor
Servo Protection - Water/Dust Resistant
Servo Positioning - VR Potentiometer - Direct Drive
Servo Gears - Metal Gears
Servo Case - Aluminium Case
Connector - JR Universal + Coloured Lead
SV-1232MG_CE_DeclarationForm_EN_12072017
