Description
Specifications:

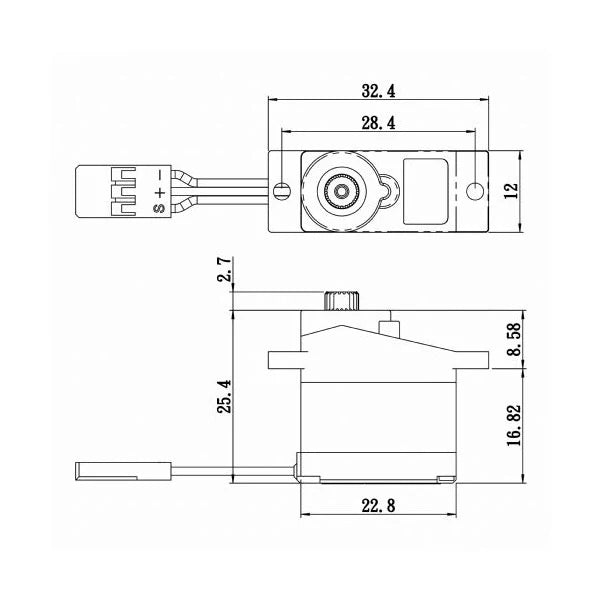

Dimensions(mm): 22.8X12.0X25.4
Weight(g): 12.3
Speed(@4.8V sec/60): .21
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 36.1
Gear: Industrial Plastic
Bearing: 1BB
Case: Aluminum
Spline: 21 Tooth Spline
Frequency: 200-250hz
Pulse Width Frequency: 1520
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings:
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 → 2300 µ second
- Maximum Travel: Appx 150° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
