Name: Savox SH-0254+ Micro Digital Servo 3.9kg/0.13s@6v
Brand: Savox
SKU: SAV-SH0254+
Price: 17.99 GBP
Availability: InStock

Savox SH-0254+ Micro Digital Servo 3.9kg/0.13s@6v

Roll over image to zoom in Click on image to zoom

Savox SH-0254+ Micro Digital Servo 3.9kg/0.13s@6v

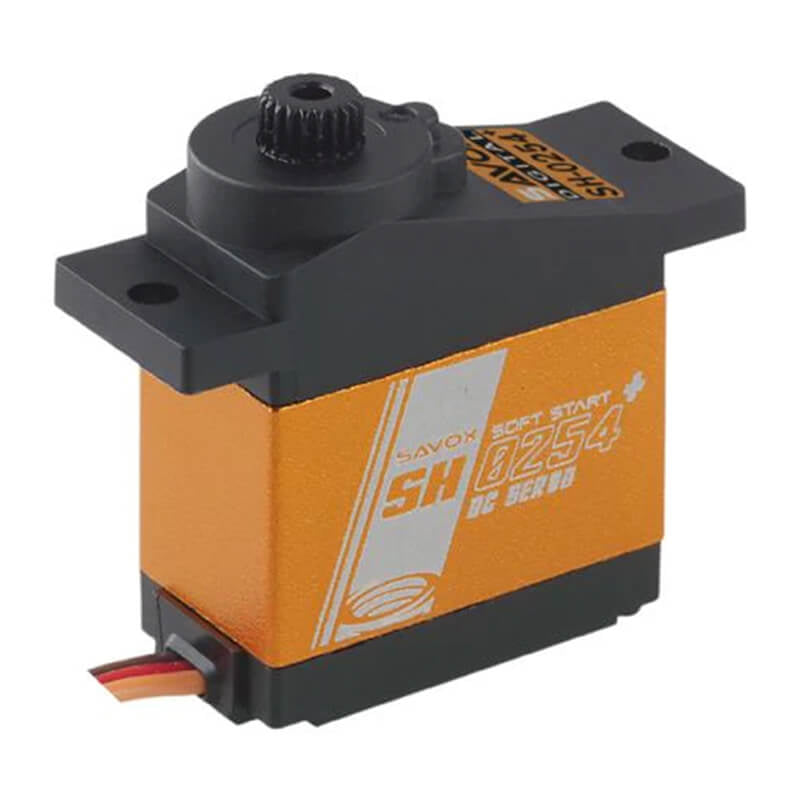

The servo SH0254+ is a micro digital servo with DC motor, 1 ball bearing and plastic gears. It can be used in helicopters, and airplanes, for example as swash plate servo for small helicopters. The delivery includes the servo as well as the servo arms and the mounting screws.

Cable length: 250mm
Spline: 21 Tooth

Scope: Airplanes, helicopters
Classification: Micro
Driving: Digital
High voltage: No
Ball bearings: Yes (one)
Gears: Plastic
Case: Partly metal
Length : 22.8 mm
Width : 12.0 mm
Height : 29.4 mm
Weight : 15.8 g
Input voltage : 4.8 - 6 Volt
Torque at 4.8V : 31 Ncm
Speed at 4.8V : 0.16 sec/60°
Torque at 6.0V : 39 Ncm
Speed at 6.0V : 0.13 sec/60°
Motor: DC
