Name: Savox SG-1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v
Brand: Savox
SKU: SAV-SG1212MG
Price: 49.99 GBP
Availability: InStock

Savox SG1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v

Savox SG1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v SAV-SG1212MG

Roll over image to zoom in Click on image to zoom

Savox SG1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v SAV-SG1212MG

The Savox SG1212MG servo is only 10mm deep and therefore ideal for the usage in thin wings of speed models and gliders. The full aluminium case makes it light and prevents over-heating. Highest precision for your model is guaranteed by backlash double ball bearing gears.

Specifications:

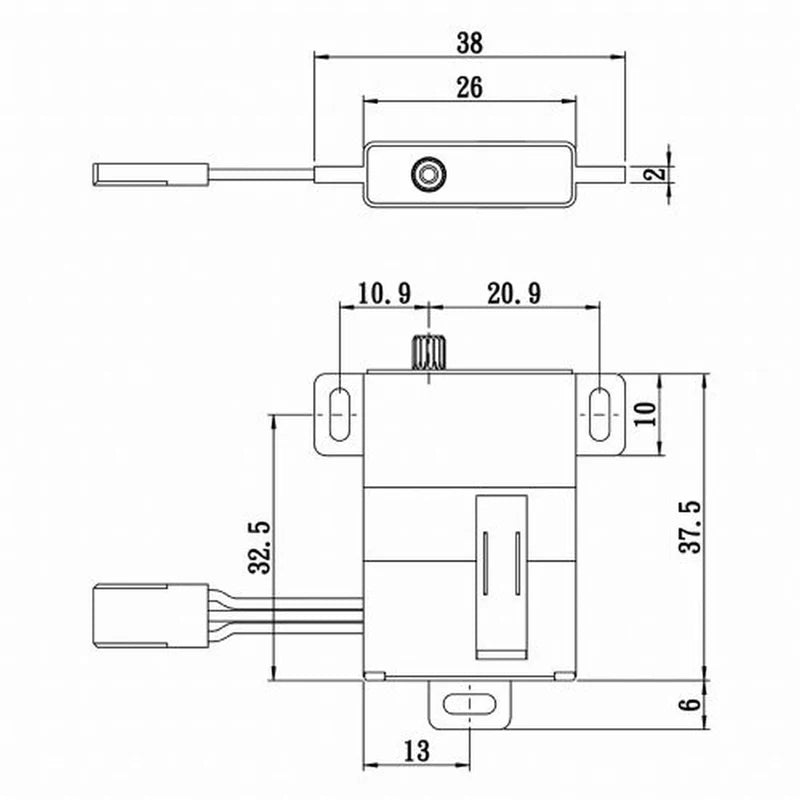

Dimension: 30.0 x 10.0 x 42mm
Weight: 27g
Speed (sec/60°): @6.0v 0.15, @7.4v 0.12
Torque (kg/cm): @6.0v 6, @7.4v 8
Gears: Metal
Bearing: 2BB
Case: Aluminium
Spline: 21T

General Info

Item Nr - SG-1212MG Barcode - 4710006993592 Brand - Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V - 0.14 Speed 60°/Sec @ 7.4V - 0.1 Speed 60°/Sec @ 8.4V - 0.09 Torque kg/cm @ 6.0V - 4 Torque kg/cm @ 7.4V - 5 Torque kg/cm @ 8.4V - 6

Servo - Dimensions

Servo Type - Low Profile Servo Spline Type - 21T Spline Length (mm) - 30 Width (mm) - 30 Height (mm) - 10 Weight (g) - 27

Servo - Technology

Technology - Digital HV Operating Voltage (V) - 6.0V - 8.4V Servo Motor - Coreless Motor Servo Protection - Water/Dust Resistant Servo Positioning - VR Potentiometer - Direct Drive Servo Gears - Metal Gears Servo Case - Aluminium Case Connector - JR Universal + Coloured Lead

SG-1212MG_CE_DeclarationForm_EN_12072017

Savox SG-1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v

Description

Savox SG1212MG High Voltage Glider Digital Glider Servo 8kg/0.12@7.4v SAV-SG1212MG

General Info

Servo - Specs

Servo - Dimensions

Servo - Technology
