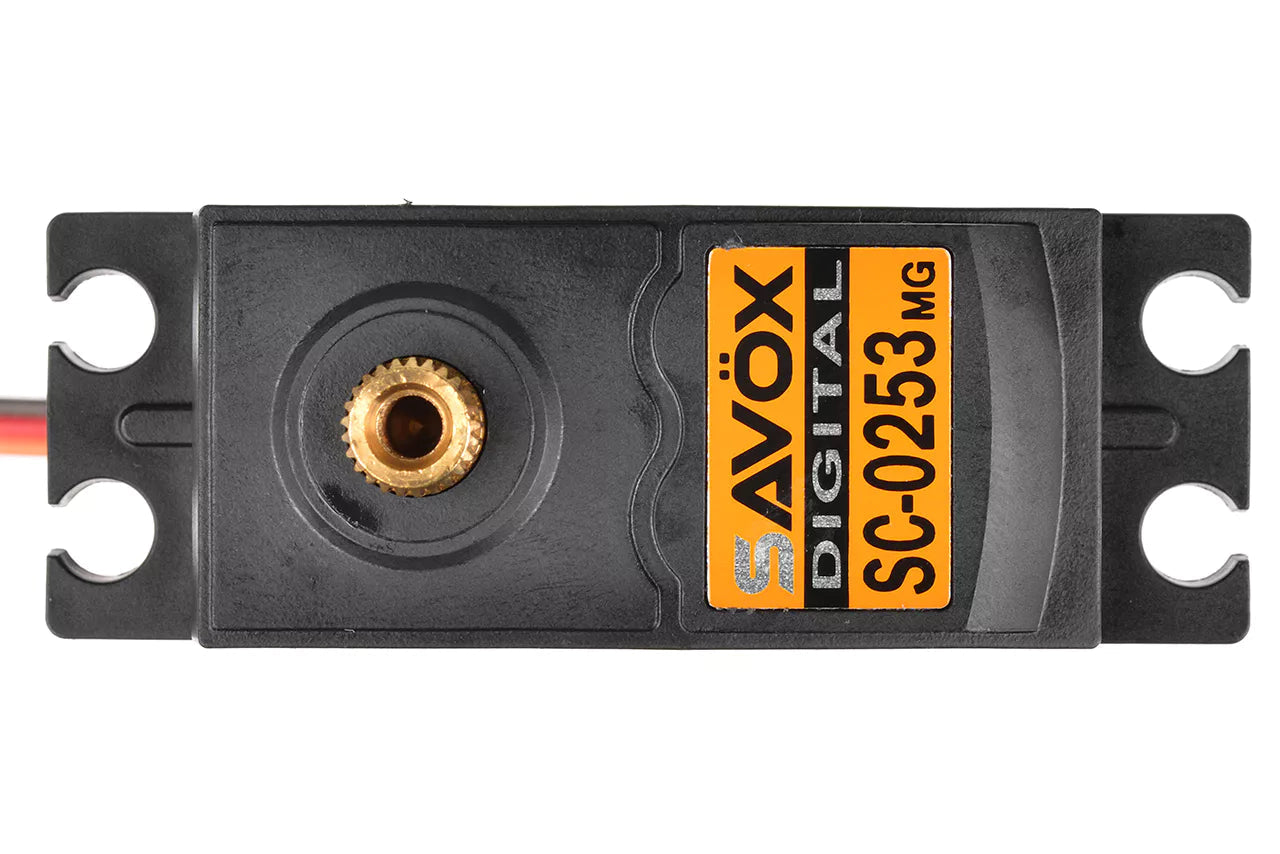

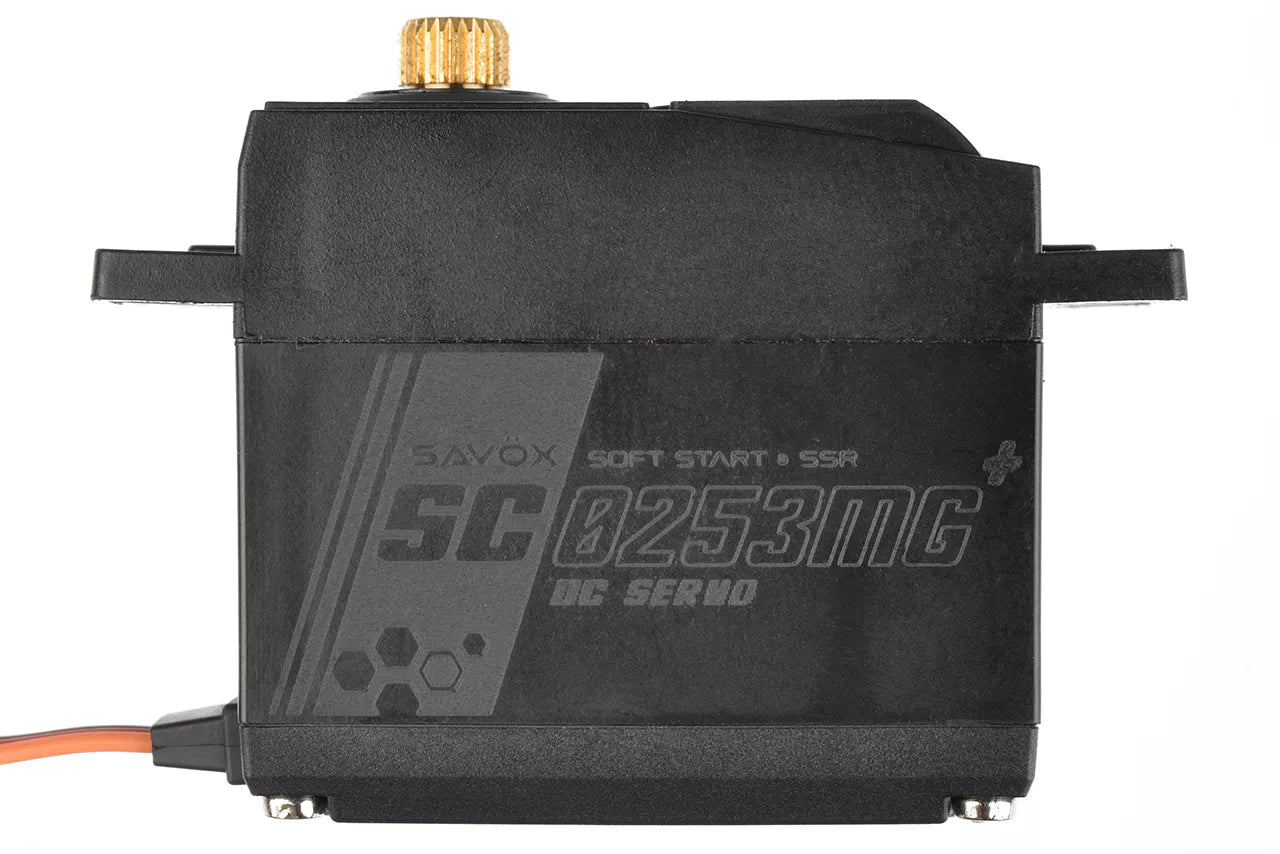

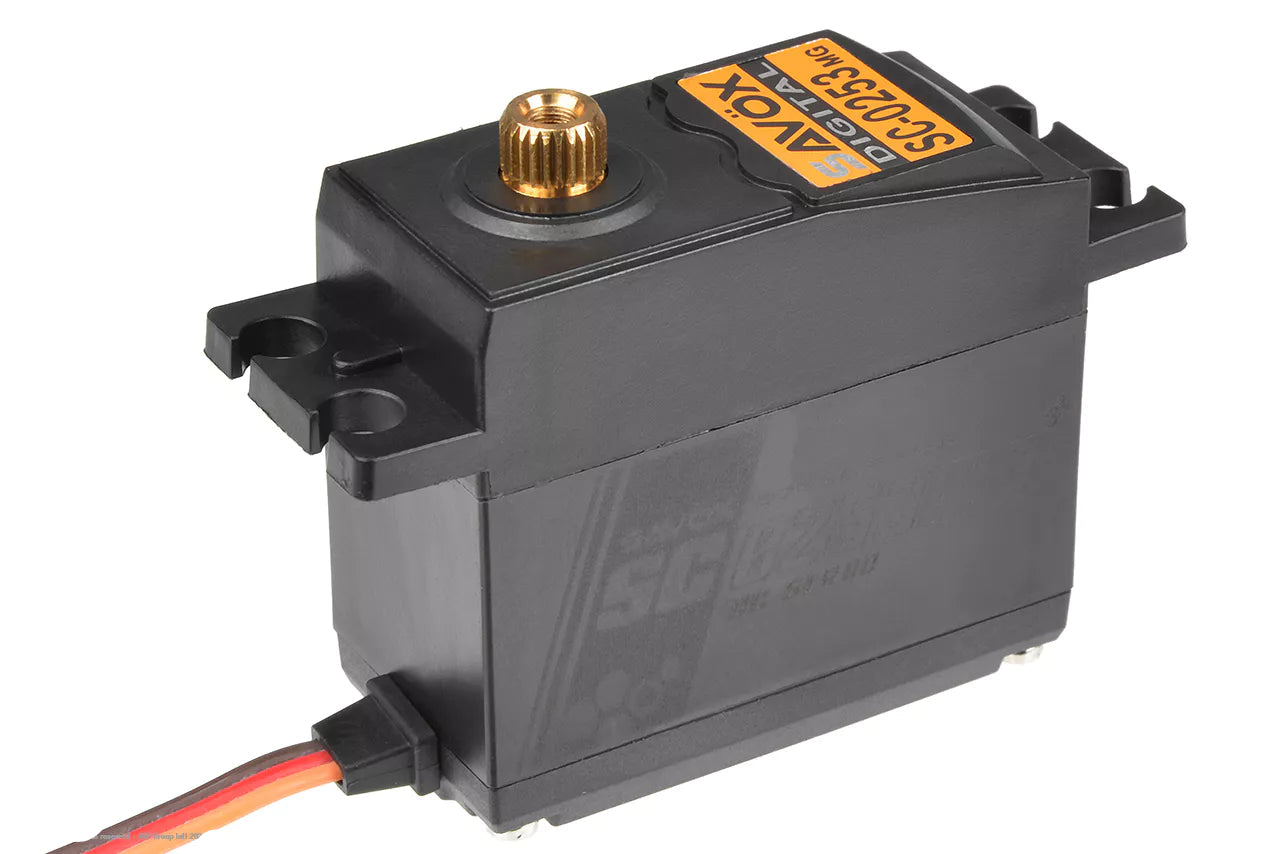

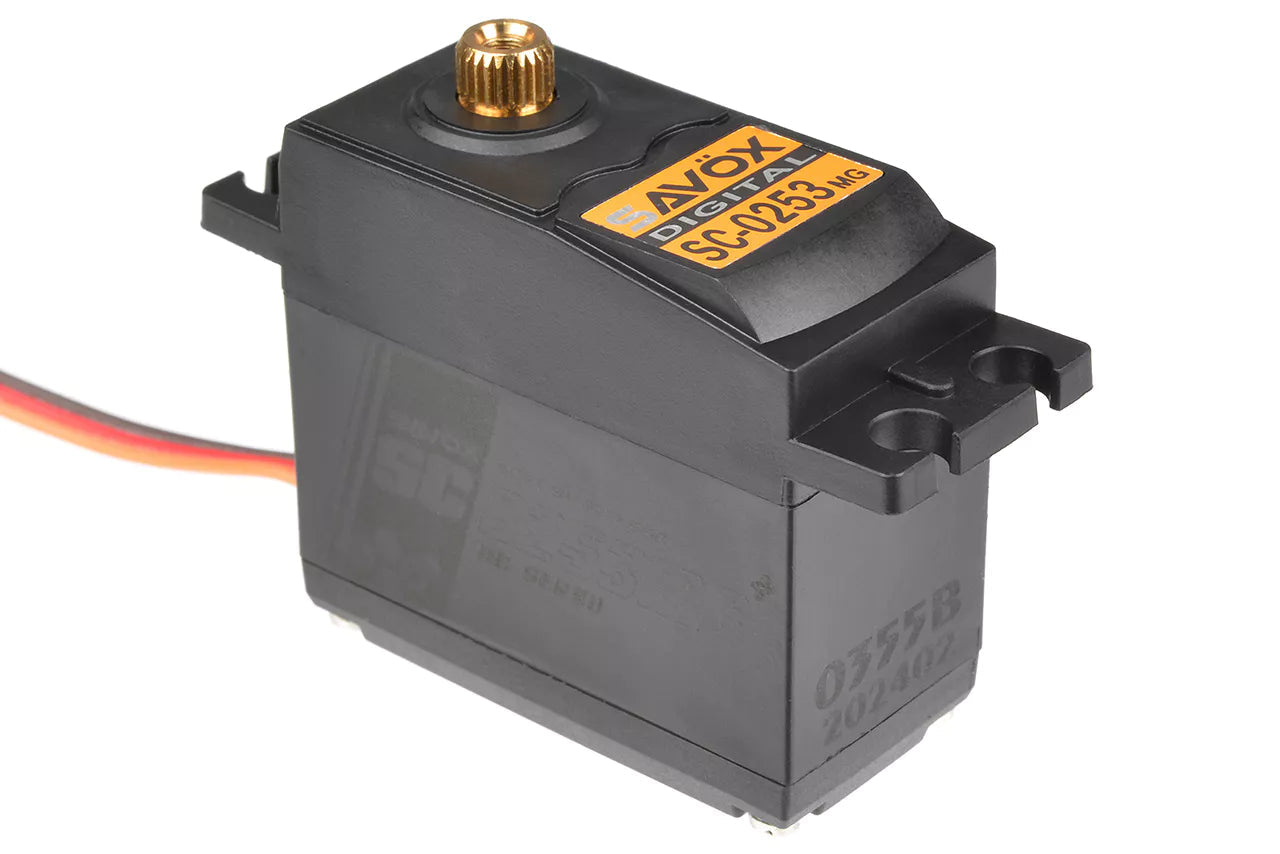

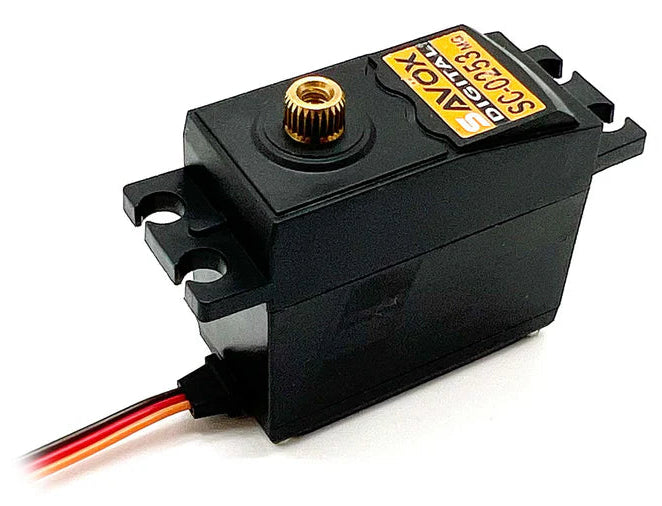

Savox SC-0253MG+ Std Size Digital Servo Metal Gear 6kg/0.15s@6v

Roll over image to zoom in Click on image to zoom

Savox SC-0253MG+ Std Size Digital Servo Metal Gear 6kg/0.15s@6v SAV-SC0253MG+

Savox SC-0253MG+ Std Size Digital Servo Metal Gear 6kg/0.15s@6v

Name: Savox SC-0253MG+ Std Size Digital Servo Metal Gear 6kg/0.15s@6v
Brand: Savox
SKU: SAV-SC0253MG+
Price: 21.24 GBP
Availability: InStock

Save 15%

SavoxSKU: SAV-SC0253MG+

Price:

£21.24 £24.99

Stock:

In stock at supplier warehouse. Lead time: 2-3 days

Quantity:

More payment options

Savox SC-0253MG+ Std Size Digital Servo Metal Gear 6kg/0.15s@6v SAV-SC0253MG+

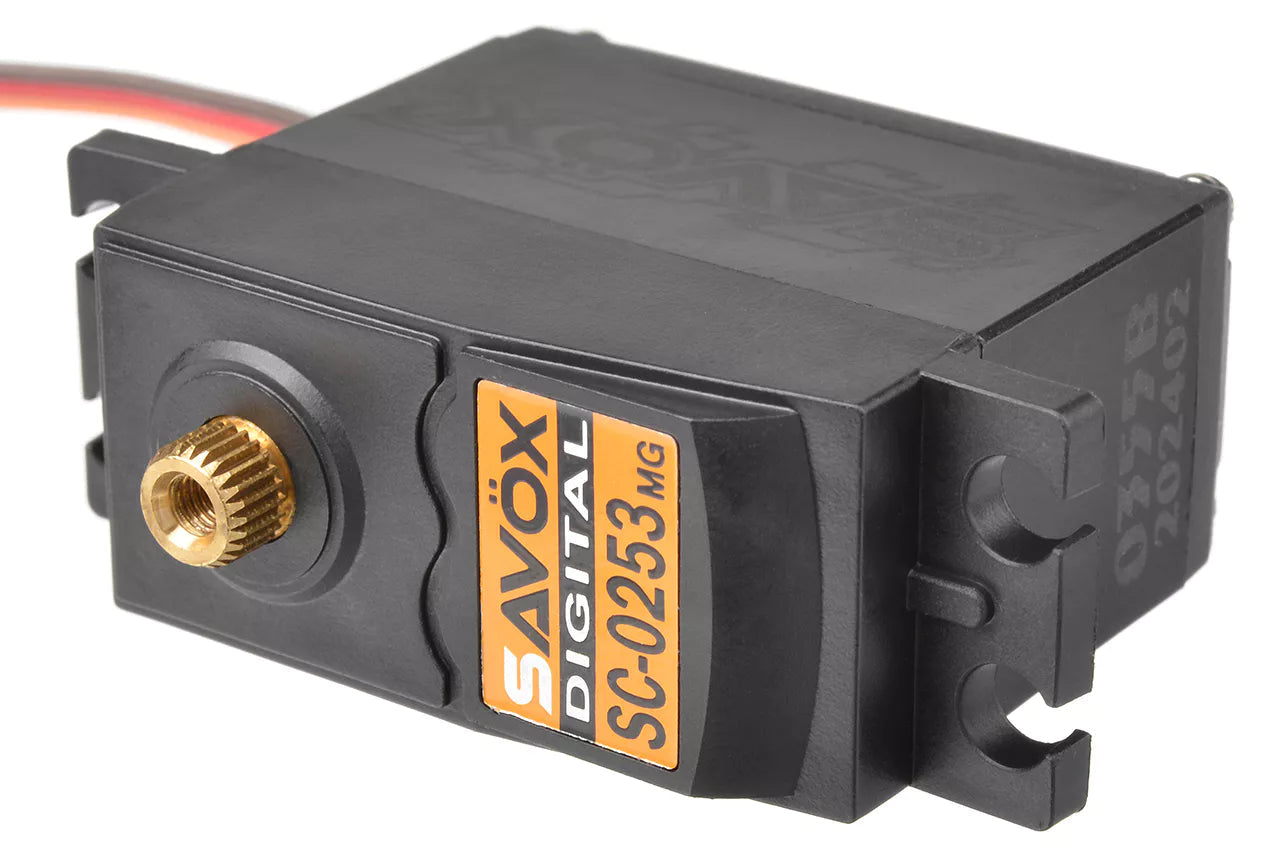

The SC0253MG+ is a standard size digital servo with a high performance rate and strong metal gears.

Ideal for aircraft and cars.

Spec Check:

Dimensions(mm): 40.7x20.2x37.0
Weight(g): 59
Speed(@6.0V sec/60): .15s
Torque(@6.0V oz-in): 6kg
Gear: Metal
Bearing: 1BB
Case: Plastic
25 Tooth Spline

New Savox servos : now feature the Soft Start Mode and Sanwa SSR compatibility.

General Info

Brand - Savöx Item Nr - SC-0253MG Barcode - 4710006994772

Servo - Specs

Speed 60°/Sec @ 4.8V - 0.17 Speed 60°/Sec @ 6.0V - 0.15 Torque kg/cm @ 4.8V - 4.8 Torque kg/cm @ 6.0V - 6 Quiescent Current (mA) - 5 Rated Current (mA) - 240 Blocking Current (mA) - 1000

Servo - Dimensions

Servo Type - Standard Servo Spline Type - 25T Spline Length (mm) - 40.7 Width (mm) - 20 Height (mm) - 37 Weight (g) - 59

Servo - Technology

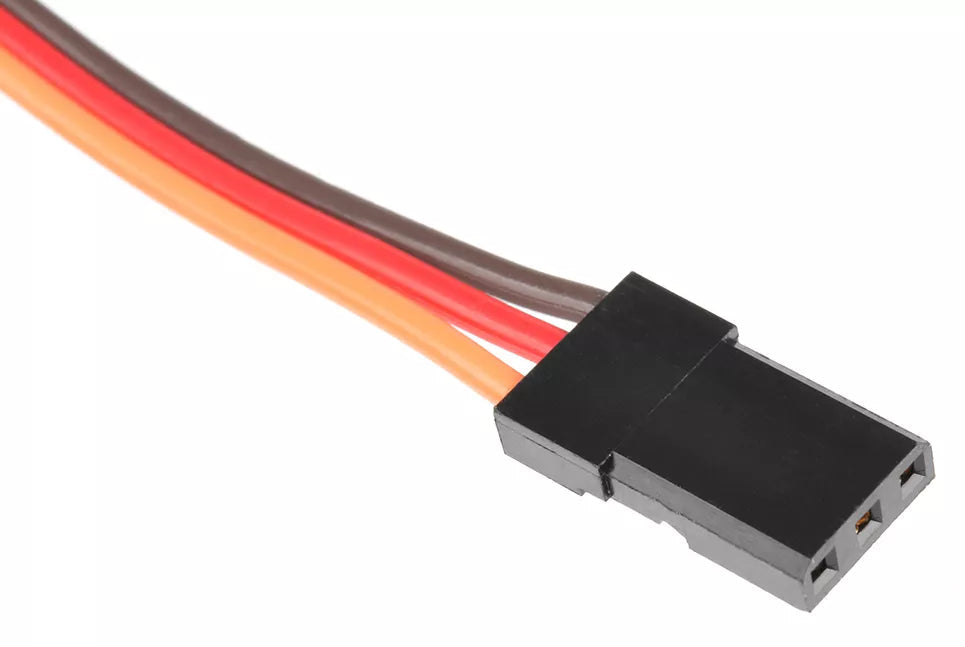

Technology - Digital Operating Voltage (V) - 4.8V - 6.0V Servo Motor - DC Core Motor Servo Protection - Water/Dust Resistant Servo Positioning - VR Potentiometer - Direct Drive Servo Gears - Metal Gears Servo Case - Composite Case Connector - JR Universal + Coloured Lead

SC-0253MG+_CE_DeclarationForm_EN_12072017
