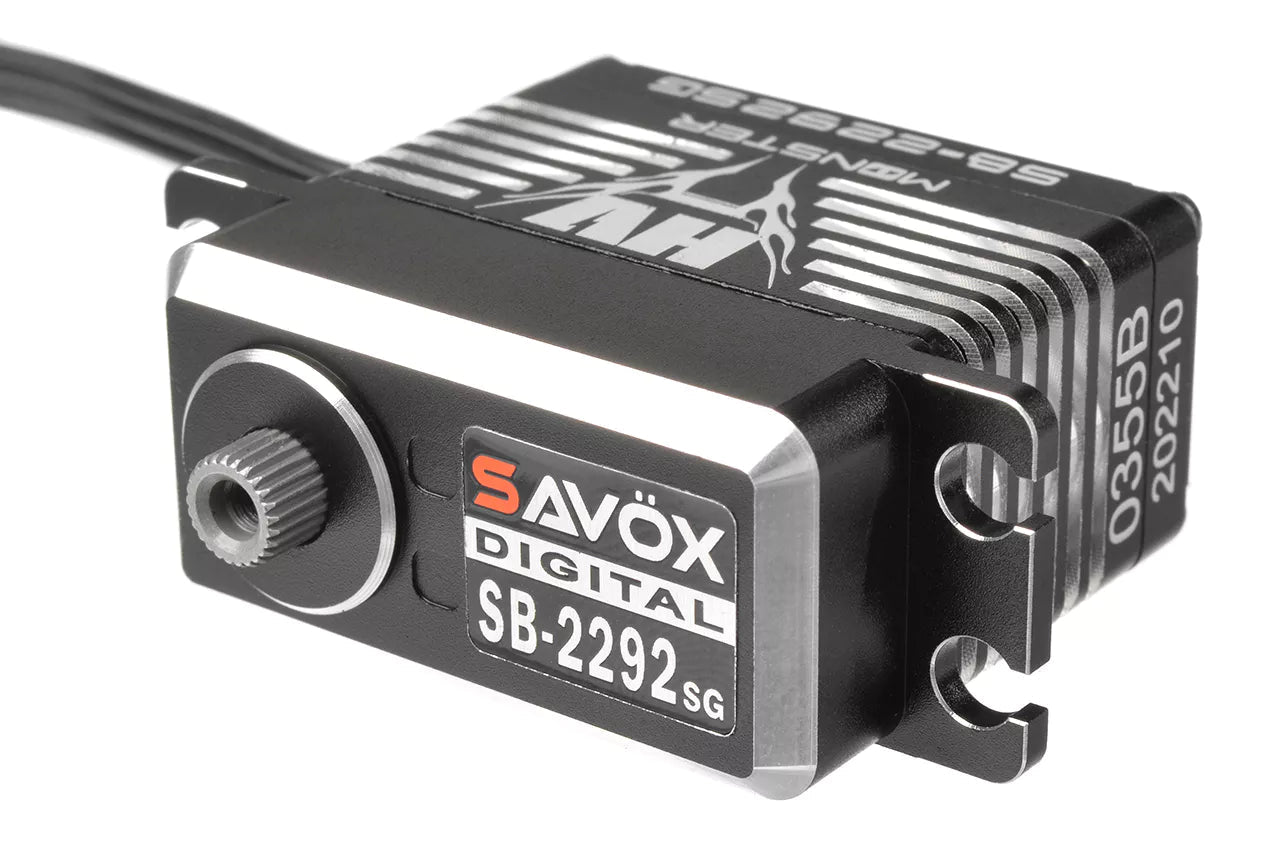

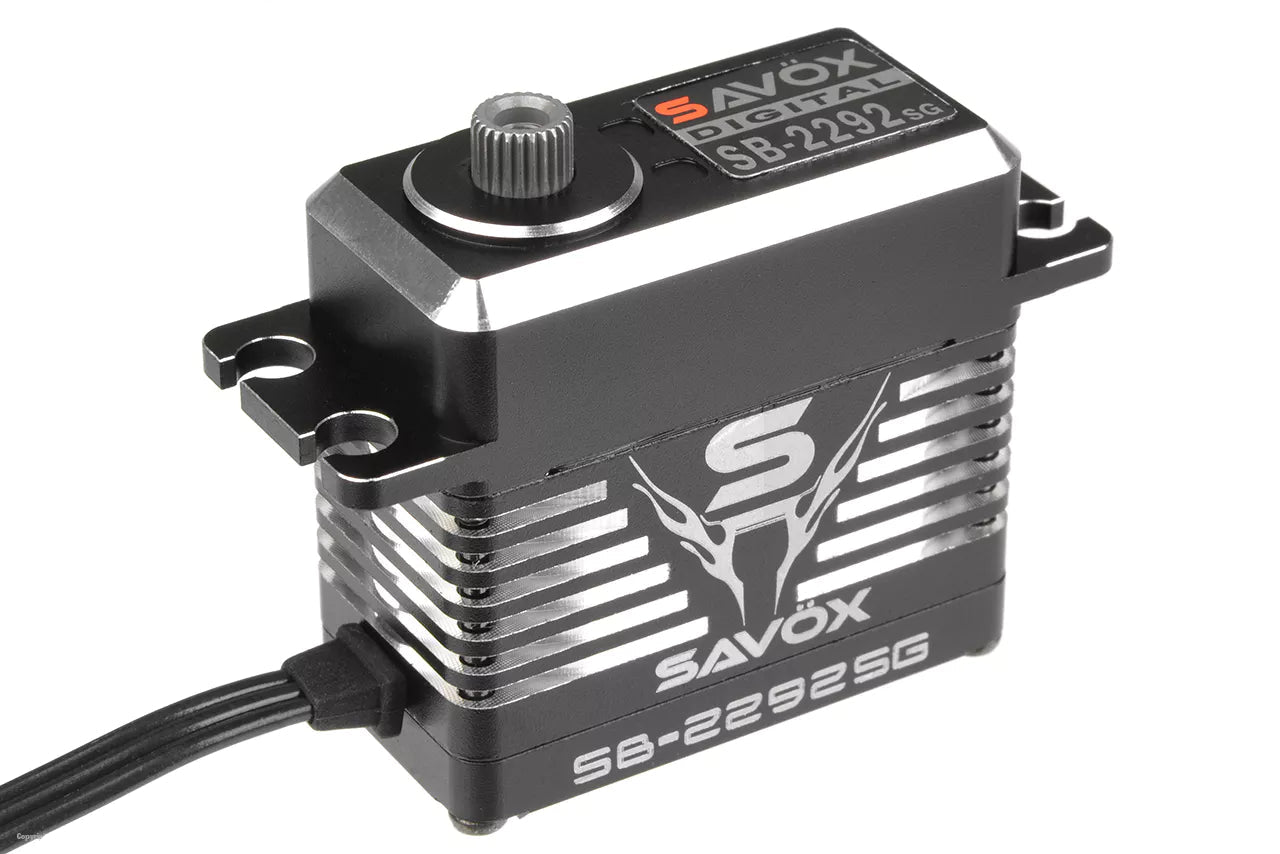

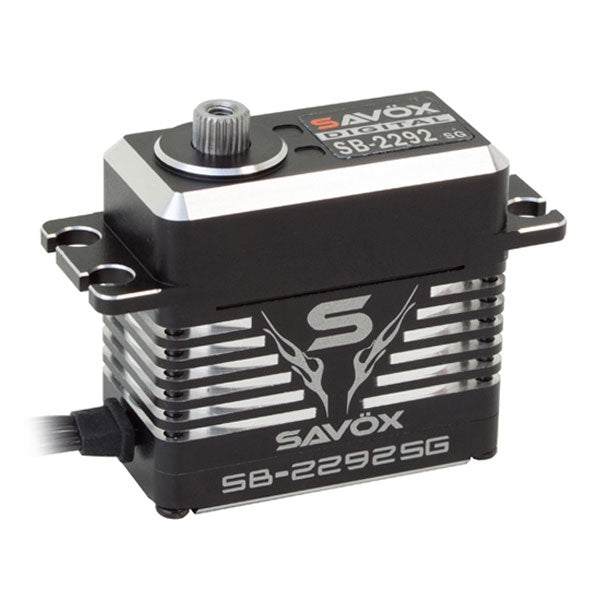

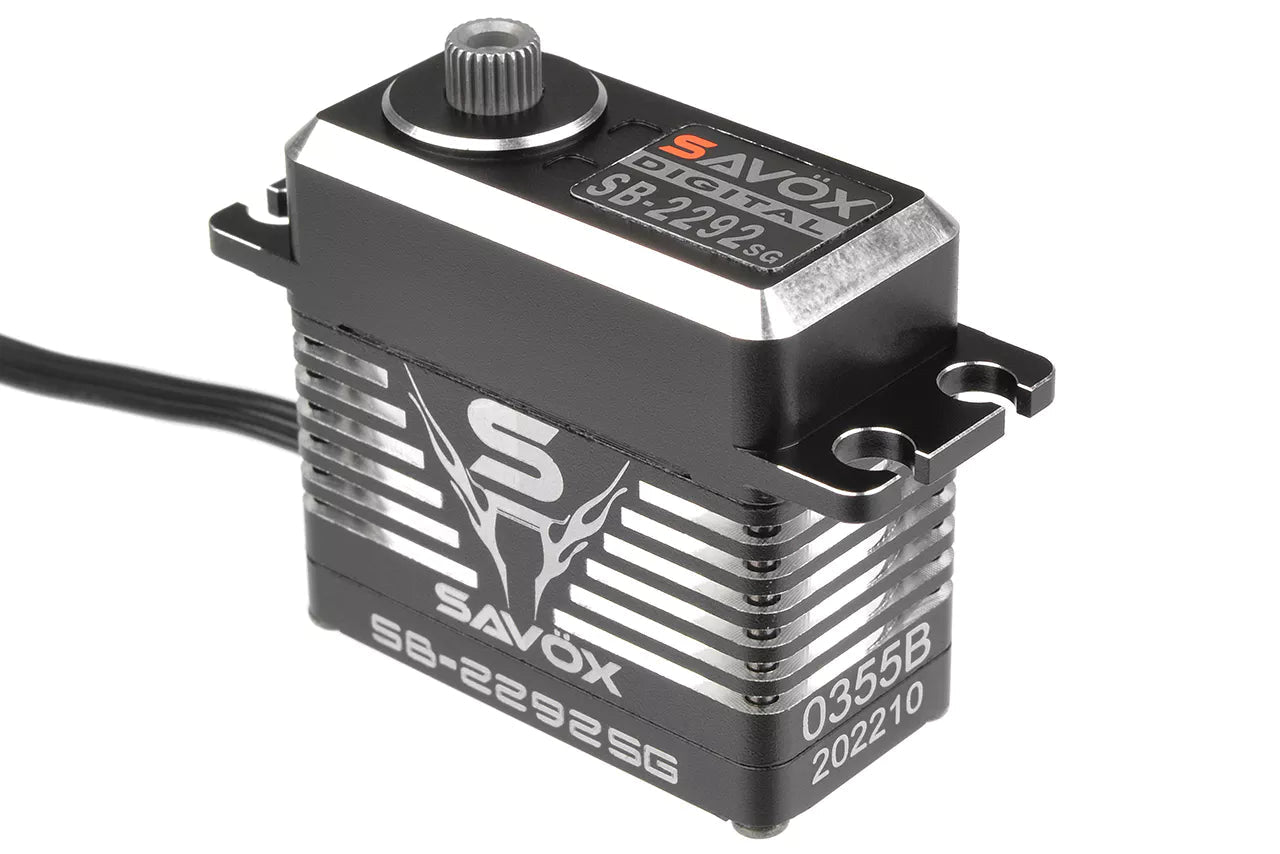

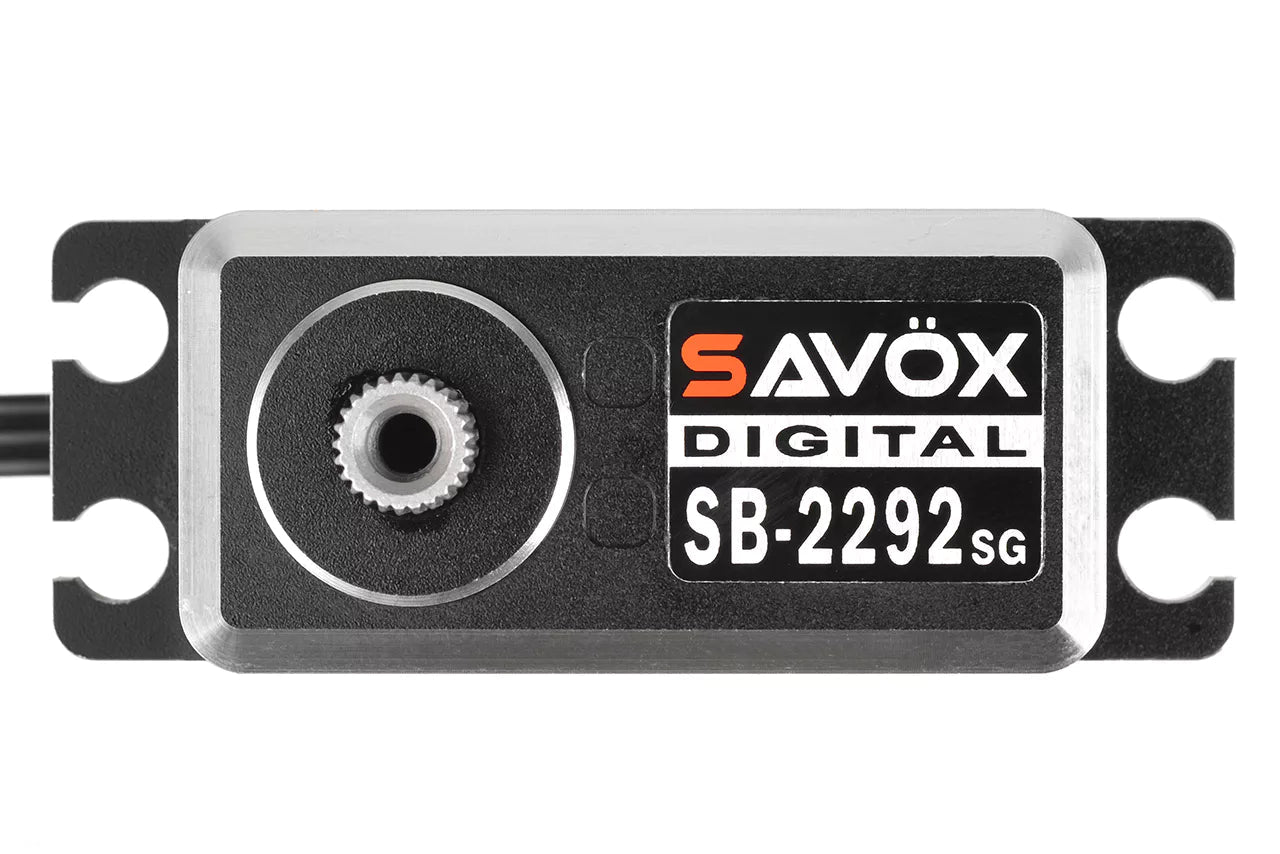

Name: Savox SB-2292SG HV CNC Monster Brushless Servo 31kg/0.07s@7.4v
Brand: Savox
SKU: SAV-SB2292SG
Price: 107.9 GBP
Availability: InStock

Savox SB2292SG HV CNC Monster Brushless Servo 31kg/0.07s@7.4v SAV-SB2292SG

Roll over image to zoom in Click on image to zoom

Savox SB2292SG HV CNC Monster Brushless Servo 31kg/0.07s@7.4v SAV-SB2292SG

The powerful all new "Monster" performance series from Savox. These new servos utilize a unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features

Full Aluminium Case
3 Precision Ball Bearings

Specifications:
Speed (sec/60°): , @6.0v 0.085, @7.4v 0.070
Torque (kg-cm): , @6.0v 25.00, @7.4v 31.00
Dimensions: 40.3 x 20.2 x 38.7mm
Weight: 81.0g**
Bearing: 2BB
Case: Aluminium

General Info

Item Nr - SB-2292SG Barcode - 4710006993409 Brand - Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V - 0.09 Speed 60°/Sec @ 7.4V -0.07 Speed 60°/Sec @ 8.4V - 0.06 Torque kg/cm @ 6.0V - 22 Torque kg/cm @ 7.4V - 31 Torque kg/cm @ 8.4V - 45 Quiescent Current (mA) - 5 Rated Current (mA) - 220 Blocking Current (mA) - 9200

Servo - Dimensions

Servo Type - Standard Servo Spline Type - 25T Spline Length (mm) - 40.3 Width (mm) - 20.2 Height (mm) - 38.7 Weight (g) - 81

Servo - Technology

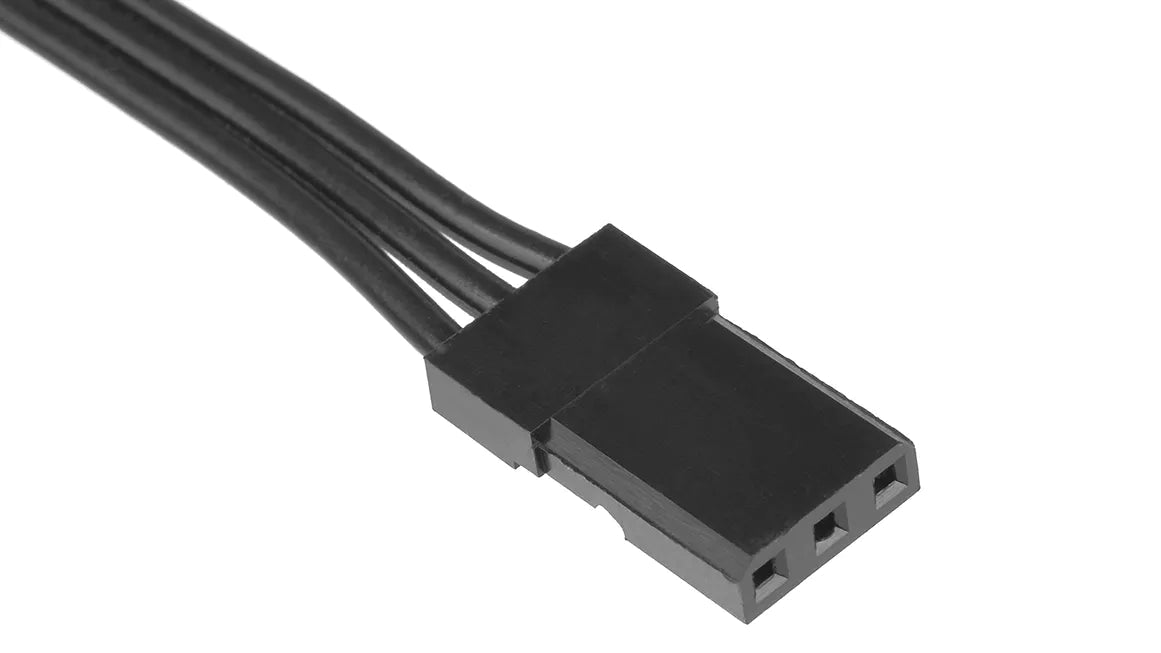

Technology - Digital HV Operating Voltage (V) - 6.0V - 8.4V Servo Motor - Brushless Motor Servo Protection - Water - Dust Resistant Servo Positioning - VR Potentiometer - Direct Drive Servo Gears - Steel Gears Servo Case - Aluminium Case Connector - JR Universal + Black Lead

SB-2292SG_CE_DeclarationForm_EN_12072017

Savox SB-2292SG HV CNC Monster Brushless Servo 31kg/0.07s@7.4v

Description

Savox SB2292SG HV CNC Monster Brushless Servo 31kg/0.07s@7.4v SAV-SB2292SG

General Info

Servo - Specs

Servo - Dimensions

Servo - Technology
