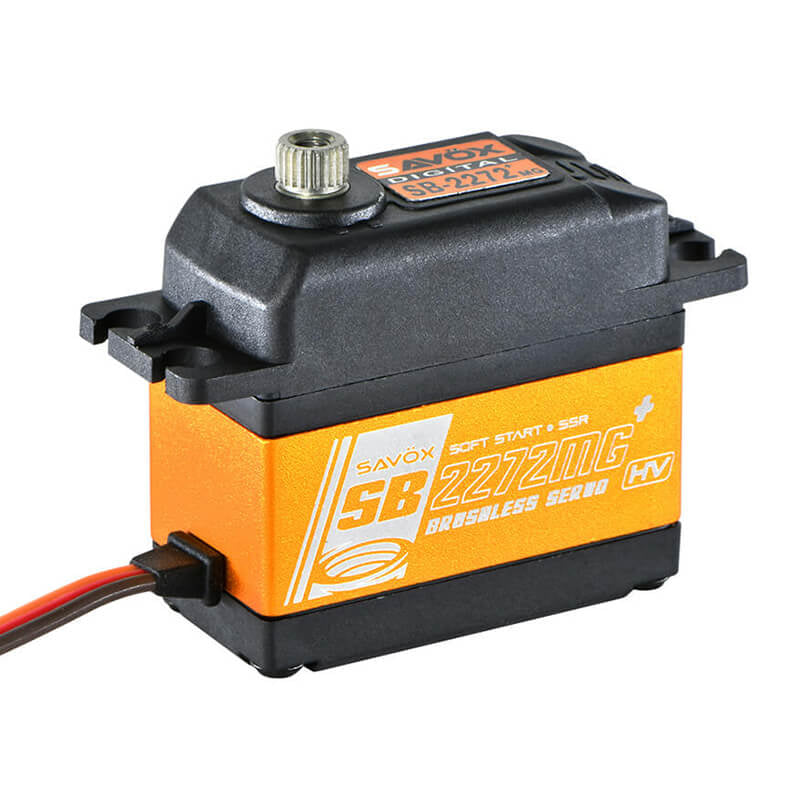

Savox SB-2272MG+ HV Digital Brushless Tail Servo 7kg/0.035s@7.4v Plus

Roll over image to zoom in Click on image to zoom

Savox SB-2272MG+ HV Digital Brushless Tail Servo 7kg/0.035s@7.4v Plus

These servos feature a redesigned motor/controller unit, and comes equipped with dual ball bearings and an all metal gear train, yet weighs in at only 66 grams.

Suitable for electric/nitro cars and electric helicopters.

Dimension(mm): 40.3 x 20.2 x 38.7

Weight(g): 66

Speed @6.0V (sec/60): 0.045

Torque @6.0V (kg-cm): 5

Speed @7.4V (sec/60): 0.032

Torque @7.4V (kg-cm): 7

Speed @8.4V (sec/60): 0.028

Torque @8.4V (kg-cm): 10

Gears: Metal

Bearing: 2BB

Case: Part Aluminium

Servo Horn: 25 Tooth Spline

SB-2272MG+ Data Sheet
