Savox SB-2230SG+ High Voltage Brushless Digital Servo With Soft Start 0.11s/55kg@8.4v SB2230SGP

Savox SB-2230SG+ High Voltage Brushless Digital Servo (Tall) With Soft Start 0.11s/55kg@8.4v SB2230SGP

The Savox SB-2230SG Plus Monster Torque Brushless servo features a slightly taller case design, and contains unique steel gears to accommodate the massive output torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

 Features:

• Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
• Brushless motor provides longer life and cooler operating temps.
• Extremely strong unique steel gears ensure long-life and durability.

Specifications:
Torque/Speed @ 6v: 36.0kg/499.9oz-in, 0.16 sec/60 deg
Torque/Speed @ 7.4v: 42.0kg/583.3oz-in, 0.13 sec/60 deg
Torque/Speed @ 8.4v: 55.0kg/763.8oz-in, 0.11 sec/60 deg

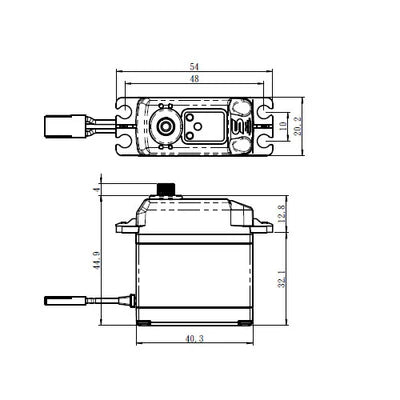

Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
Weight: 84g
Operating Temperature: 14°: 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
