Description

Savox SA-1231SG+ Standard Size Coreless Digital Servo With Soft Start 0.14s/32kg@6v SA1231SGP

The Savox SA-1231SG+ High Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Extremely strong unique steel gears ensure long-life and durability.
  • Minimized backlash designed for aircraft use, but great for Monster Truck and crawling use.
  • Aluminum middle case to help with cooler operating temperatures.
  • Slightly taller case design.

Specifications:
Torque @ 4.8V - 28.0kg / 388.8oz-in
Torque @ 6V - 32.0kg / 444.4oz-in
Speed @ 4.8V - 0.18 sec / 60 deg
Speed @ 6V - 0.14 sec / 60 deg

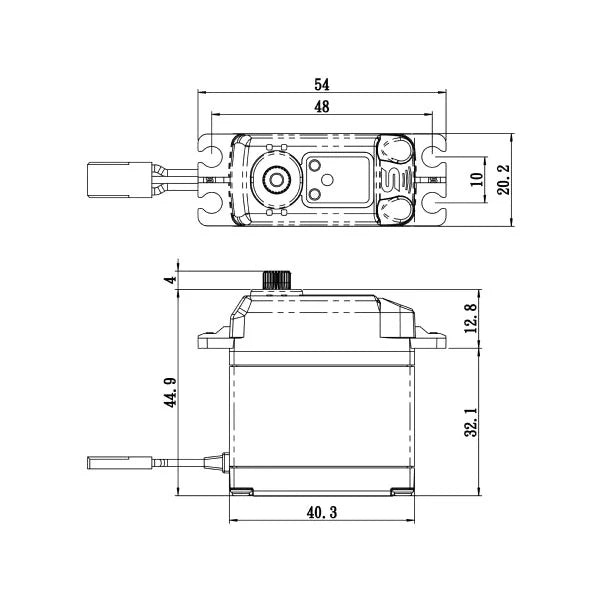

Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
Weight: 79g

Specifications:
Torque @ 4.8V - 28.0kg / 388.8oz-in
Torque @ 6V - 32.0kg / 444.4oz-in
Speed @ 4.8V - 0.18 sec / 60 deg
Speed @ 6V - 0.14 sec / 60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
Weight: 79g

Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @4.8V, 250mA @6.0V
Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
