Savox Low Profile Glider Digital Servo 8kg/0.13@6v SG0211MG SAV-SG0211MG

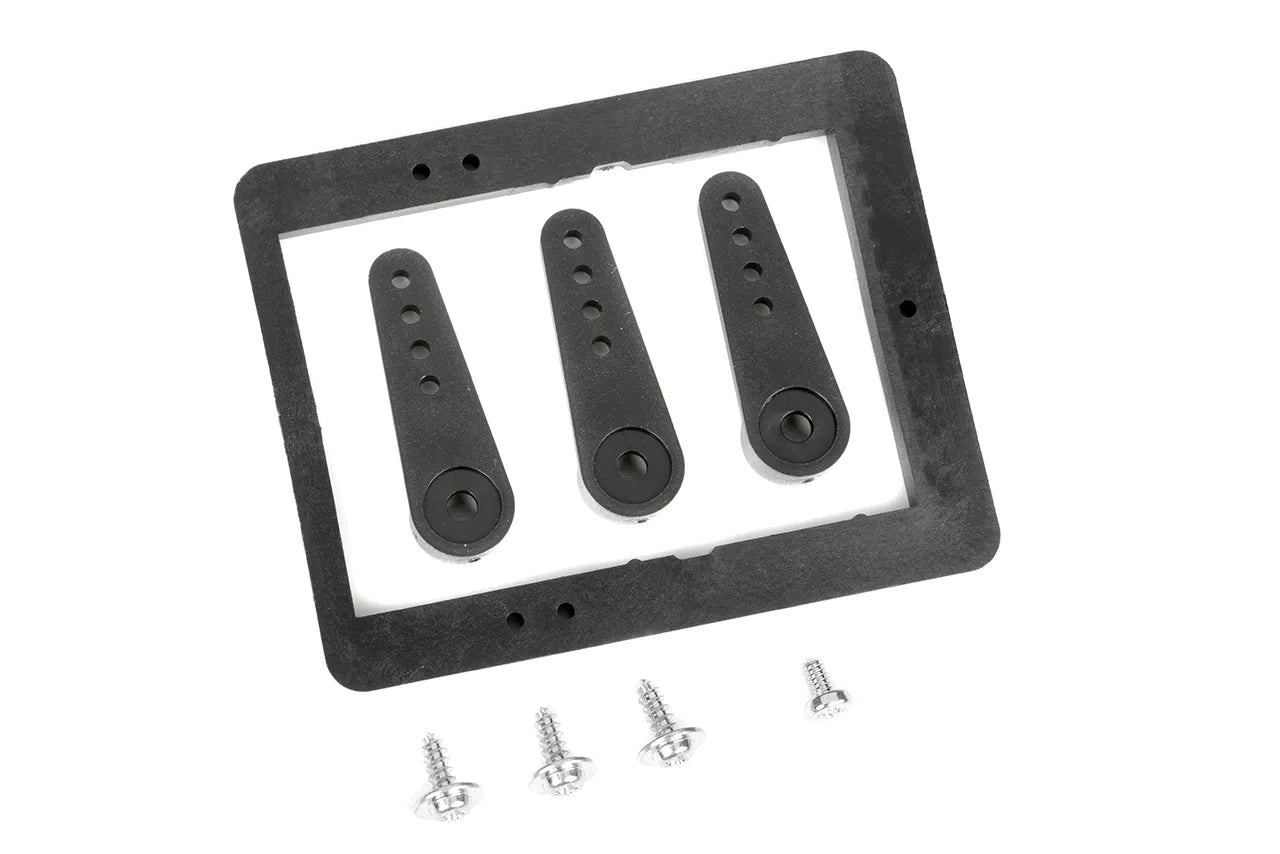

The Savox SG-0211MG servo is only 10mm deep and therefore ideal for the usage in thin wings of speed models and gliders. The full aluminium case makes it light and prevents over-heating. Highest precision for your model is guaranteed by backlash double ball bearing gears. Delivery includes a special servo arm for the use in wings and a solid frame for easy mounting.
The SG-0211MG is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.
Features:
• Metal Gear train for extended life and durability.
• Special design for glider applications.
• Special design for glider applications.
• All aluminium case for secure mounting.

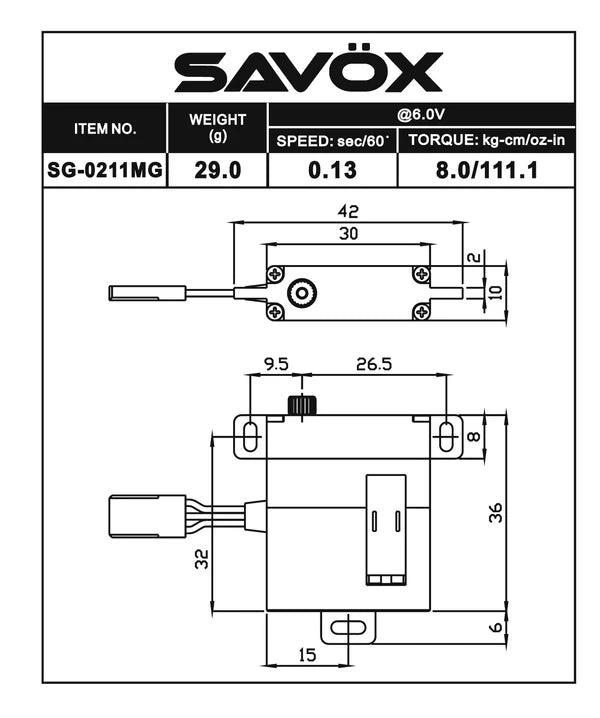

Specifications:
Gears: Metal
Case: Full metal
Length ca.: 30.0mm
Width ca.: 10.0mm
Height ca.: 36.0mm
Weight ca.: 29g
Input voltage: 4.8 - 6.0 Volt
Torque at 6.0 V ca: 80 Ncm
Speed at 6.0 V ca: 0.13 sec/60°
Torque at 4.8 V ca: 60 Ncm
Speed at 4.8 V ca: 0.16 sec/60°
Motor: Coreless
Ball bearings: 2
Spline: 21 Tooth
