SAVOX HV DIGITAL BRUSHLESS SERVO 15KG 0.085S@6.0V SB2251SG 1
Roll over image to zoom in Click on image to zoom
SAVOX HV DIGITAL BRUSHLESS SERVO 15KG 0.085S@6.0V SB2251SG 1Savox SB-2251SG HV Digital Brushless Servo 15KG/0.085S@6.0V SB2251SGSAVOX HV DIGITAL BRUSHLESS SERVO 15KG 0.085S@6.0V SB2251SG 1SAVOX HV DIGITAL BRUSHLESS SERVO 15KG/0.085S@6.0V SB2251SG

Savox SB-2251SG HV Digital Brushless Servo 15KG/0.085S@6.0V SB2251SG

Save 15%
SavoxSKU: SAV-SB2251SG
Price:
£76.49 £89.99
Stock:
Only 2 units left
 More payment options

Description

SAVOX HV DIGITAL BRUSHLESS SERVO 15KG/0.085S@6.0V SB2251SG

Servo - SB-2251SG - Digital - Brushless Motor - Steel Gears

Features:
• Leading edge digital servo technology
• High efficiency Brushless motor
• Accurate and fast response
• Super high resolution
• Aluminium center case for improved motor cooling and total strength
• Ball beared
• Precision all Steel gears

Technical specifications:
• Servo Technology: Digital Low Voltage
• Input Voltage (V): 4.8V - 6.0V
• Servo Type / Size: Standard
• Motor Type: Brushless Motor
• Gear Material: Steel Gears
• Ball Beared: Ball Beared
• Servo Case: Aluminium - Composite
• Speed 60°/Sec @ 6.0V: 0.085 Sec/60°
• Torque kg/cm @ 6.0V: 15.0 Kg/cm

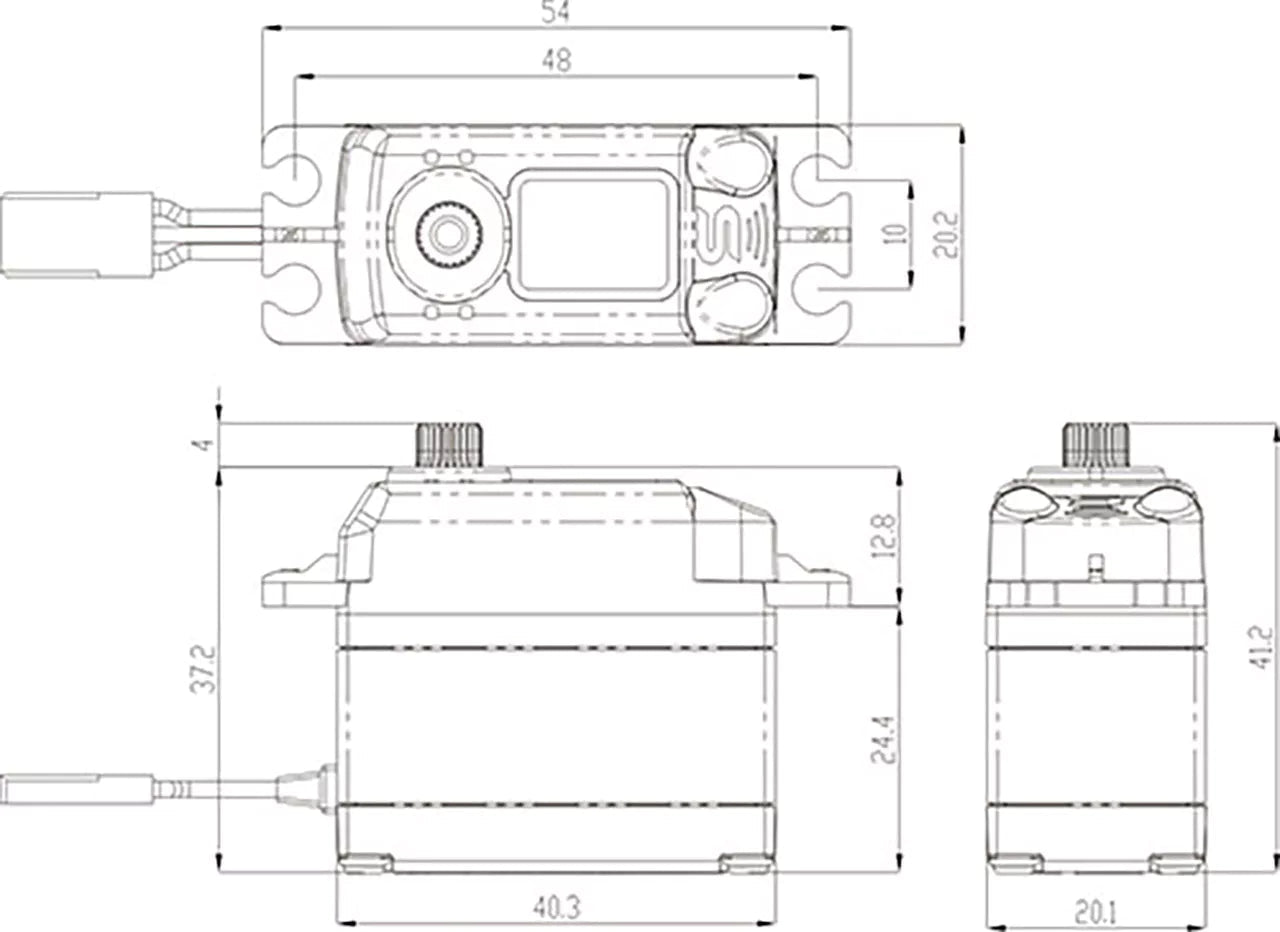

• Length (mm): 40.3 mm
• Width (mm): 20.2 mm
• Height (mm): 37.2 mm
• Weight (g): 68 g
• Connector type: JR
• Spline size: 25T Spline

General Info
Item Nr - SB-2251SG
Barcode - 4710006992266
Brand - Savöx

Servo - Specs
Speed 60°/Sec @ 6.0V - 0.09
Torque kg/cm @ 6.0V - 15.00

Servo - Dimensions
Servo Type - Standard Servo
Spline Type - 25T Spline
Length (mm) - 40,30
Width (mm) - 20.00
Height (mm) - 37.20
Weight (g) - 68.00

Servo - Technology
Technology - Digital
Operating Voltage (V) - 4.8V - 6.0V
Servo Motor - Brushless Motor
Servo Protection - Water/Dust Resistant
Servo Positioning - VR Potentiometer - Direct Drive
Servo Gears - Steel Gears
Servo Case - Aluminium + Composite Case
Connector -JR Universal + Coloured Lead

SB-2251SG_MSDS_ENG
