Savox SB-2273SG+ High Voltage Brushless Digital Servo 0.095sec/28kg @ 7.4V SAV-SB2273SG+
Roll over image to zoom in Click on image to zoom
Savox SB-2273SG+ High Voltage Brushless Digital Servo 0.095sec/28kg @ 7.4V SAV-SB2273SG+Savox SB-2273SG+ High Voltage Brushless Digital Servo 0.095sec/28kg @ 7.4V SAV-SB2273SG+

Savox SB-2273SG+ High Voltage Brushless Digital Servo 0.095sec/28kg @ 7.4V SAV-SB2273SG+

Save 13%
SavoxSKU: SAV-SB2273SG+
Price:
£86.90 £99.99
Stock:
Only 4 units left
 More payment options

Description

SAVOX HV DIGITAL BRUSHLESS SERVO 28KG/0.095S@7.4V - PLUS SAV-SB2273SG+

The Savox SA-2273SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:
Unique steel gear train.
Capable of HV operation.
Brushless motor for smooth operation and efficiency.
Ideal for 1/8 buggies and large scale aircraft.

Specifications:
Torque @ 6v - 23.0kg/319.4oz-in
Torque @ 7.4v - 28.0kg/388.8oz-in
Speed @ 6v - 0.12 sec/60 deg
Speed @ 7.4v - 0.095 sec/60 deg

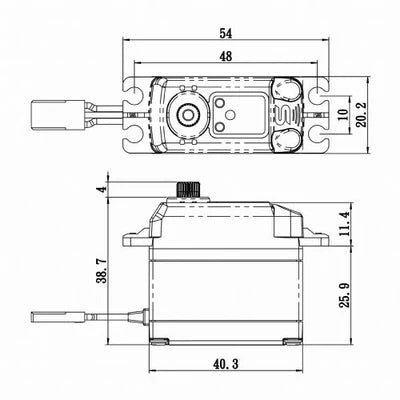

Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
Weight: 69.0g

Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Specifications:
Torque @ 6v - 23.0kg/319.4oz-in
Torque @ 7.4v - 28.0kg/388.8oz-in
Speed @ 6v - 0.12 sec/60 deg
Speed @ 7.4v - 0.095 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
Weight: 69.0g

Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
