S-AG500 Slim Coreless Digital Servo PWM/S.Bus2 9.5kg 0.12s 4.8V - 8.4V FUT05102761-3
An ideal blend of size, torque, cost and quality, Futaba's dual bearing, metal gear, slim wing servo is the solution to many a problem.
Futaba's S-AG500 is a slim, coreless, digital servo designed for R/C aircraft and, specifically, thin wings and tight spaces. Offering an impressive balance between size, speed and torque, it punches well above its 28g weight with an impressively slender 10mm thickness, a speed of 0.12sec and a workmanlike torque of 9.5kg. Add metal gears, a durable aluminium case, S.Bus2 compatibility, dual ball bearings, plus a price that underpins affordability, and what you have here is nothing short of a very high-quality solution to many a problem.
Key Features
- Durable aluminium case.
- Dual ball bearing supported output shaft.
- Supports S.Bus2.
- Programmable.
- Metal gear.
- Soft start initialisation.
- High performance coreless motor.

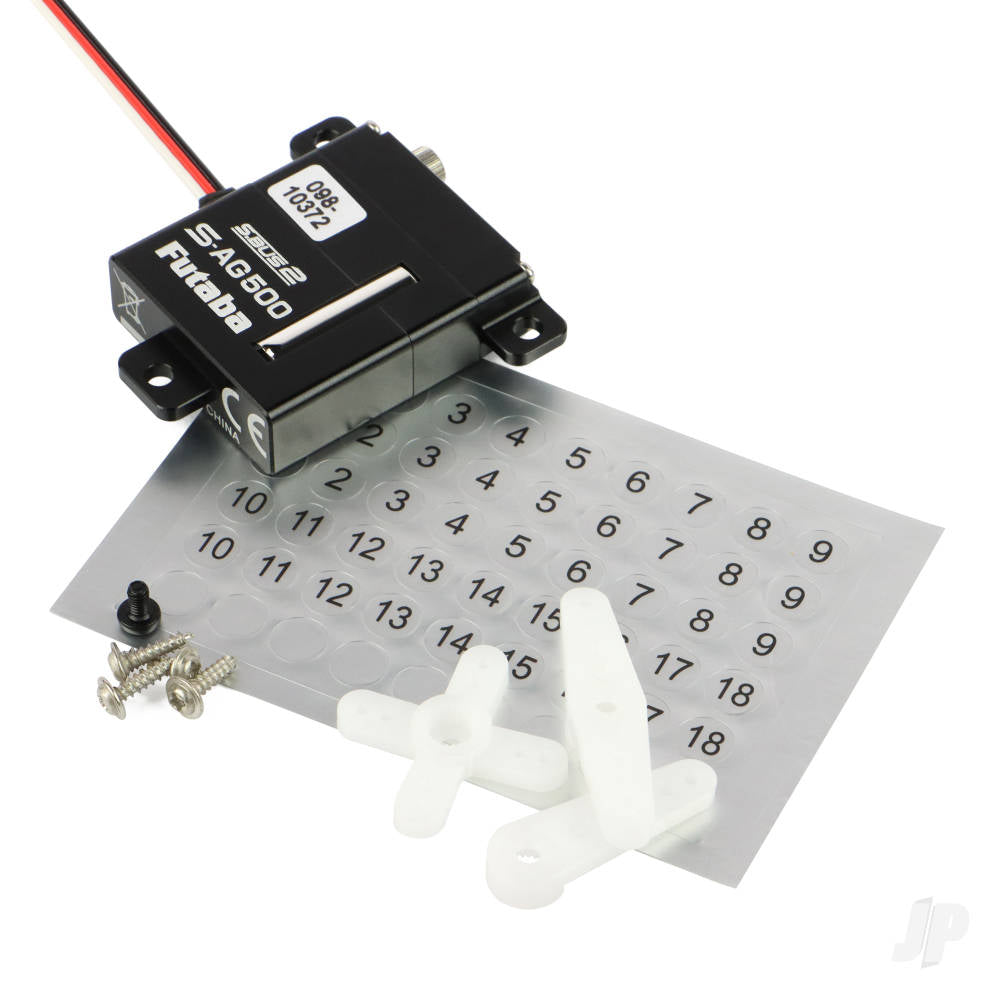

What's in the Box
- 1x S-AG500 slim wing servo.
- 1x Horn and screw set.
- 1x Self-adhesive Servo ID number sheet.
- 1x Data sheet.

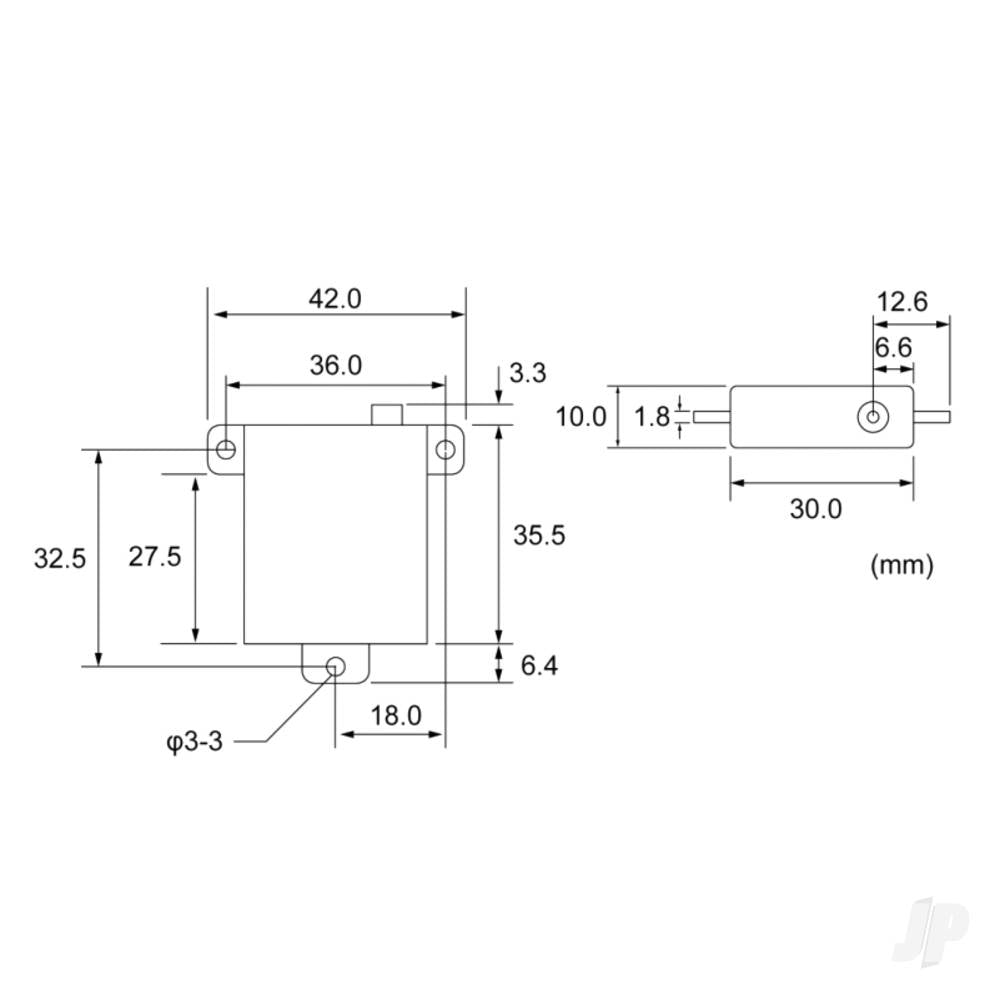

| Product Height |
36mm |
1.40in |
| Product Width |
10mm |
0.39in |
| Product Length |
30mm |
1.18in |
