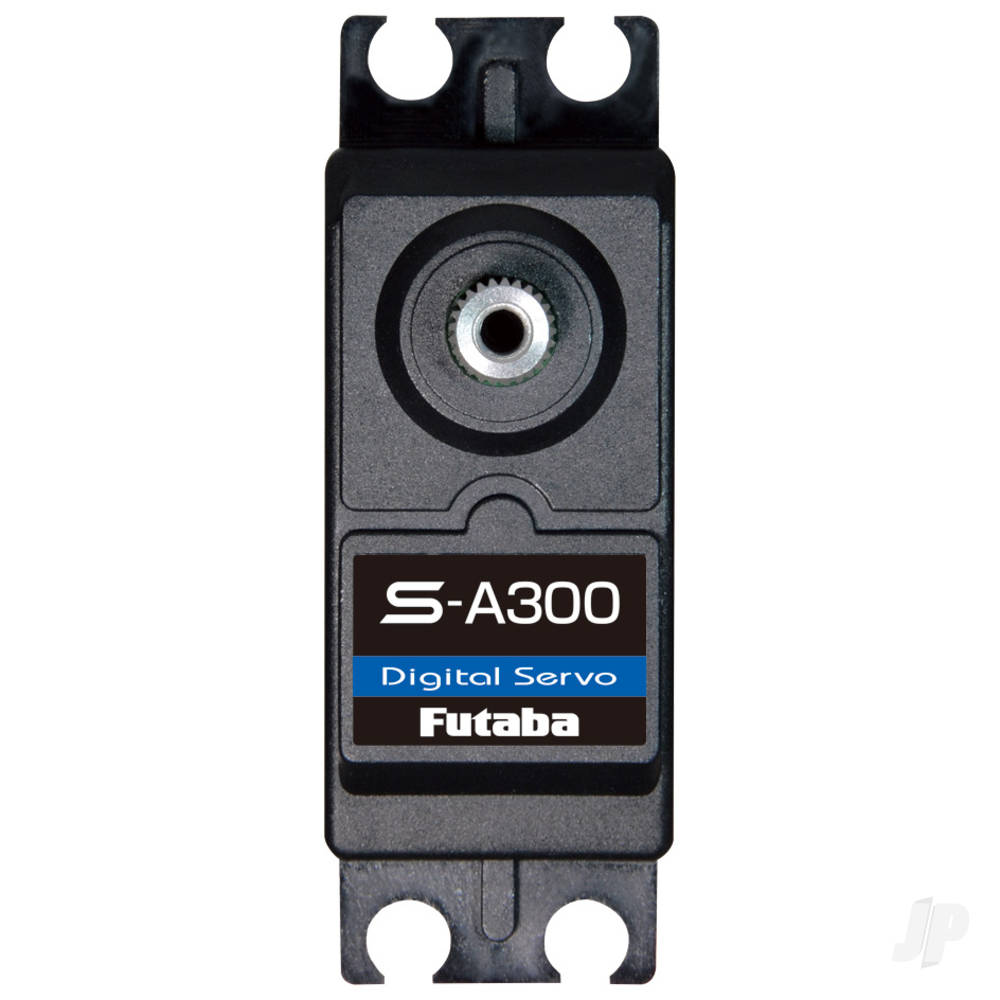

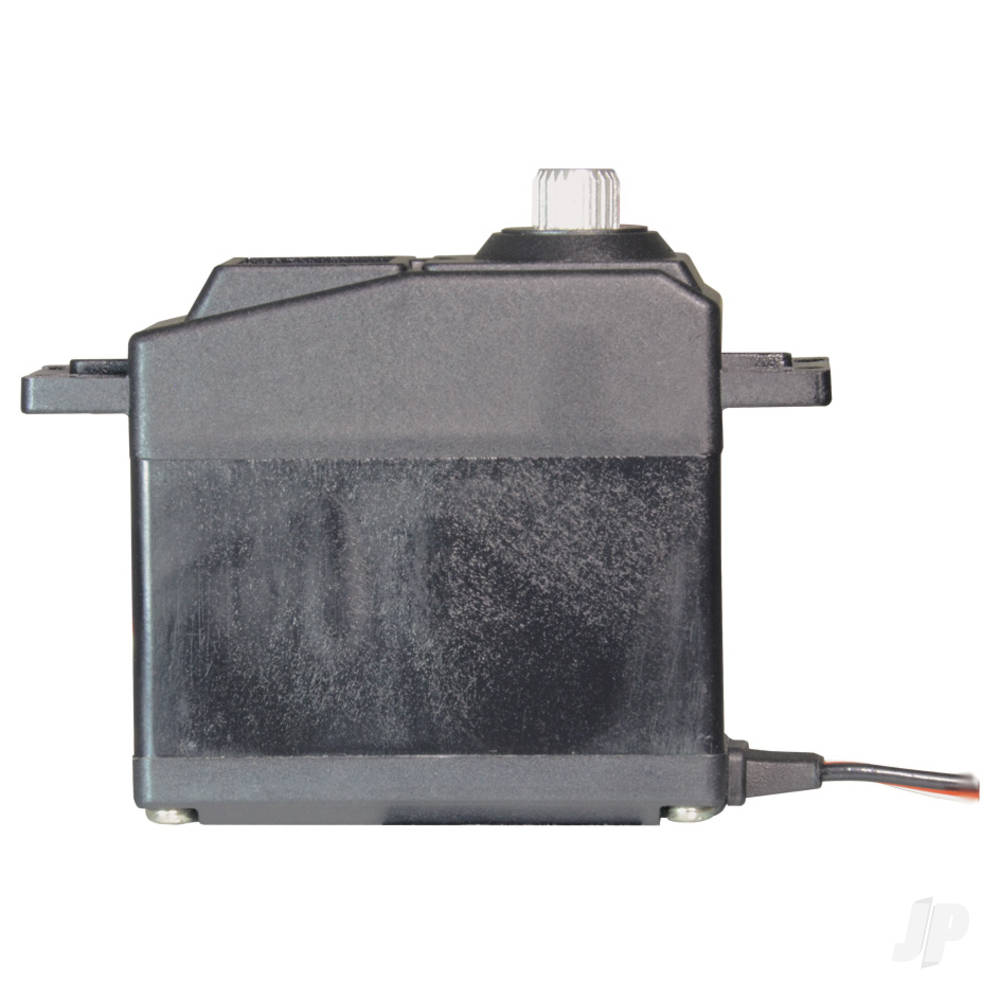

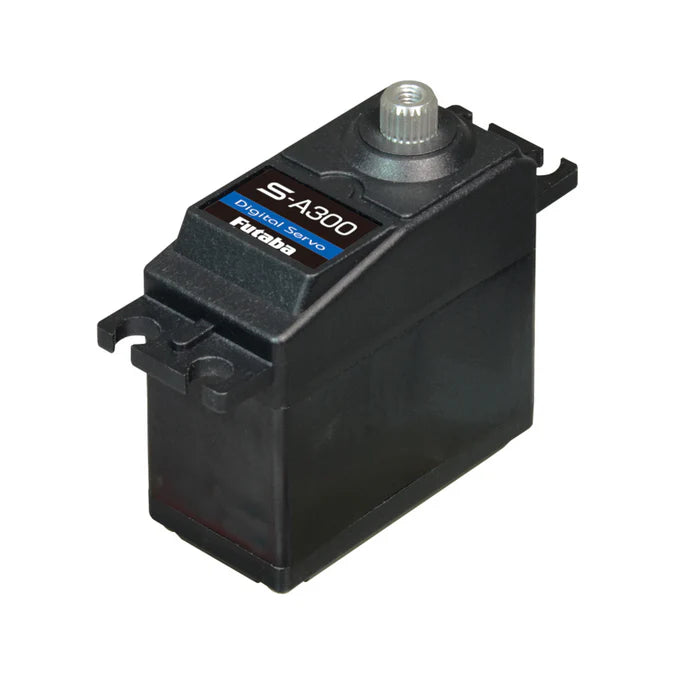

Futaba S-A300 Standard Digital Servo PWM/S.BUS2 11kg 0.17s 4.8V - 7.4V FUT05102732-3
Digital coreless standard servo for aircraft. Supports S.BUS2
FUTABA is expanding the Air series with a classic 20 mm servo. With a maximum actuating force of 11kg, the S-A300 is particularly predestined for use in demanding fixed-wing models. The construction of the S-A300 Air is based on the high-performance servo S-A700 Air. Thanks to the use of a coreless motor and adjusted performance values, the S-A300 is much cheaper in price.
Specifications:
- Operating voltage: 4.8 - 8.4 V.
- Adjustment speed 0.17sec/60° (7.4V) / 0.19sec/60° (6.6V)
- Actuating torque 11.0 kgf cm (7.4V) / 10.0kgf cm (6.6V)
- Control frequency: 50 300 Hz

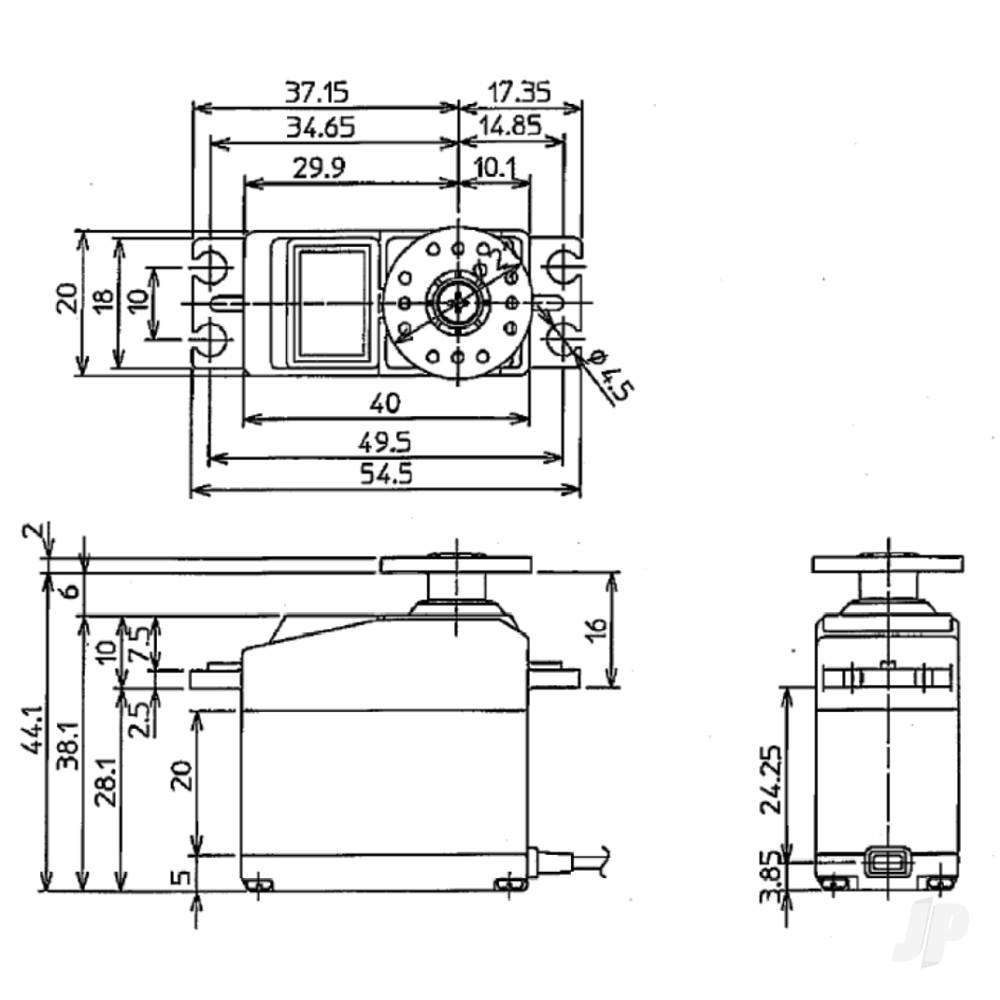

- Dimensions: 40x20x38.1 mm
- Weight: 47 g
- Spline: 25 Tooth
What's in the Box:
- S-A300 Standard Digital Servo
- Horns
- Mounting Hardware
