RadioLink PPM Wireless Trainer Cable RLKA001006

RadioLink PPM Wireless Trainer Cable RLKA001006

If you’ve ever got caught in a buddy lead, stepped on it while training or found it awkward having your trainee follow you around attached by an umbilical, you’ll quickly see the sense of the RadioLink Wireless Trainer Connector. Simply bind a free receiver to the slave transmitter then plug the receiver into the Wireless Trainer Connector and attach the Connector to the trainer port on the master transmitter. With the link established the effective operating distance between the instructor and trainee transmitters is 600 meters.

Free from cord, Easier for Trainer
Different from the traditional trainer cord, wireless trainer system requires no cable connection between trainer and trainee transmitter, which is easier and more relaxing for both. Free from cables limitation, trainer can move whenever necessary, especially it also ensures the good remote control even trainer is 600 meters(1969ft) away from trainee.

Note: the wireless trainer cable only support 10 channels PPM signals. Please setup the "CH-SELECT: 12CH" to "CH-SELECT: 10CH" in SYSTEM menu if both of your instructor transmitter and student transmitter are AT9/AT9S/AT9S Pro/AT10II.

Free from Cord, More Relieved for Trainee

The wireless trainer system effectively avoids the unintentional pull which may cause cord dropping. Training becomes safer and more relieved.Even the RC beginners can enjoy the fun of acro flight with the trainer mode on.

Traditional Trainer Cable Working Mode

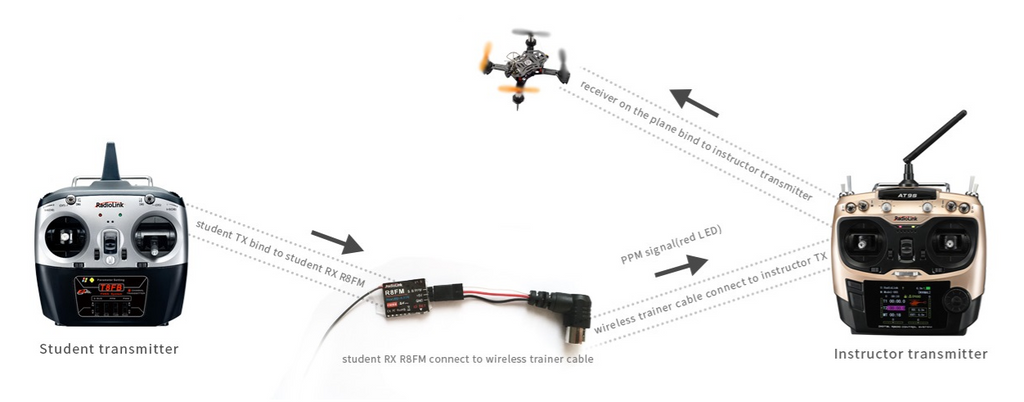

Wireless Trainer Cable Working Mode

Anti-interference Communication Technology
Radiolink AT9S&AT10II with the technology of DSSS&FHSS hybrid dual spread spectrum and T8FB with the same FHSS as AT9S, not only significantly increase the control distance and improve the anti-interference ability, but also achieve software expansion and excellent compatibility. Software expansion ensures multiplayer competing at the same time and excellent compatibility greatly reduces mutual interference. Even the trainee receiver stays close to the trainer transmitter, the  anti-interference ability can be ensured. The communication technology is the key point to make RadioLink wireless trainer function come true.

3ms Quick Response

Radiolink transmitters take only 3ms for all the channel response synchronously.
Signals are stable and responsive without any delay even have been transmitted twice by both trainee and trainer transmitters, ensuring better RC experience.

High Efficiency but Low Consumption
With the switch power supply module integrated, RadioLink wireless trainer system ensures the stable voltage output as 5V and receiver won’t easily get damaged by high voltage. Meanwhile, the power supply of trainer transmitter can provide power to wireless trainer system at the same time with the highly efficient power management.

Innovative Dual Mode Trainer Function

Traditional Hold Mode

Traditionally the trainer switch (SWH) needs to be kept pushing to allow model controlled by trainee, which is tiring. Once the switch is loosened, the model will be controlled by trainer.

Brand New ALT Mode
But for the innovative dual mode trainer function, the switch only needs to be toggled once. That is, the model will be controlled by trainer and trainee in turn each time the switch is toggled.

Specifications:
Size: 12.7cm (5")
Weight: 9g (0.32oz)
Supported Signal: PPM (Note: the wireless trainer cable only suppoprt 10 channels PPM signals. Please setup the "CH-SELECT: 12CH" to "CH-SELECT: 10CH" in SYSTEM menu if both of your instructor transmitter and student transmitter are AT9/AT9S/AT9S Pro/AT10II.)
Compatible Receivers: All receivers with PPM signal supported (Radiolink R6DS, R6DSM, R12DSM; R8EF, R8FM, R8F, R8SM, R7FG)
Input Voltage: 4V-15V
Output Voltage: 5V
Current: 200mA (Note: The output voltage of wireless trainer system is 5V and the power is 200mA. Thus it only adapts to the power from receiver instead of other devices such as servo or image transmission, etc.)

Click here for instruction manual
