Name: Radient RS-MS125-MG Mini 17g Analog MG Servo 3.5kg/012s 4.8V - 6.0V RDNA0404
Brand: Radient
SKU: RDNA0404
Price: 12.8 GBP
Availability: InStock

Radient RS-MS125-MG Mini 17g Analog MG Servo 3.5kg/012s 4.8V - 6.0V RDNA0404

Roll over image to zoom in Click on image to zoom

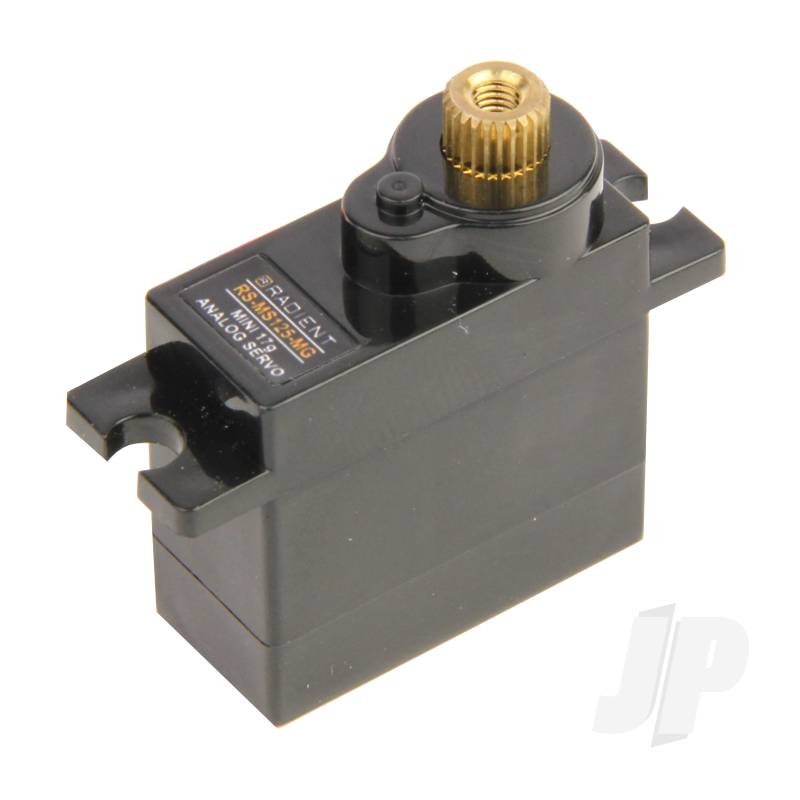

Radient RS-MS125-MG Mini 17g Analog MG Servo RDNA0404

This 17g mini servo offers reliable performance with metal gears, dual ball bearings, and a compact design. Ideal for various applications, it provides a great balance of speed, power, and durability.

Product Description

Offering the size, power, torque and speed to suit a variety of applications Radient servos are rapidly building a reputation for reliability that compliments their outstanding value. This metal gear, dual ball raced, 17g Mini is no exception.

Key Features

Metal gears.
3P iron core motor.
25 tooth spline.
Dual ball raced output shaft.

Weight (g):	17
Speed at 4.8V (sec/60deg):	0.14
Speed at 6.0V (sec/60deg):	0.12
Torque at 4.8V (kg.cm):	3.0
Torque at 6.0V (kg.cm):	3.5
Size (mm):	27.0 x 12.5 x 29.8
Voltage (V):	4.8 / 6.0

Servo Technical Specifications

Weights & Dimensions

Weight	17g	0.60oz
Shipping Weight	0.03kg	0.07lbs

Product Height	30mm	1.17in
Product Width	13mm	0.49in
Product Length	27mm	1.06in
