Propeller and Spinner Assembly: Conscendo 2.0m EFL3225007

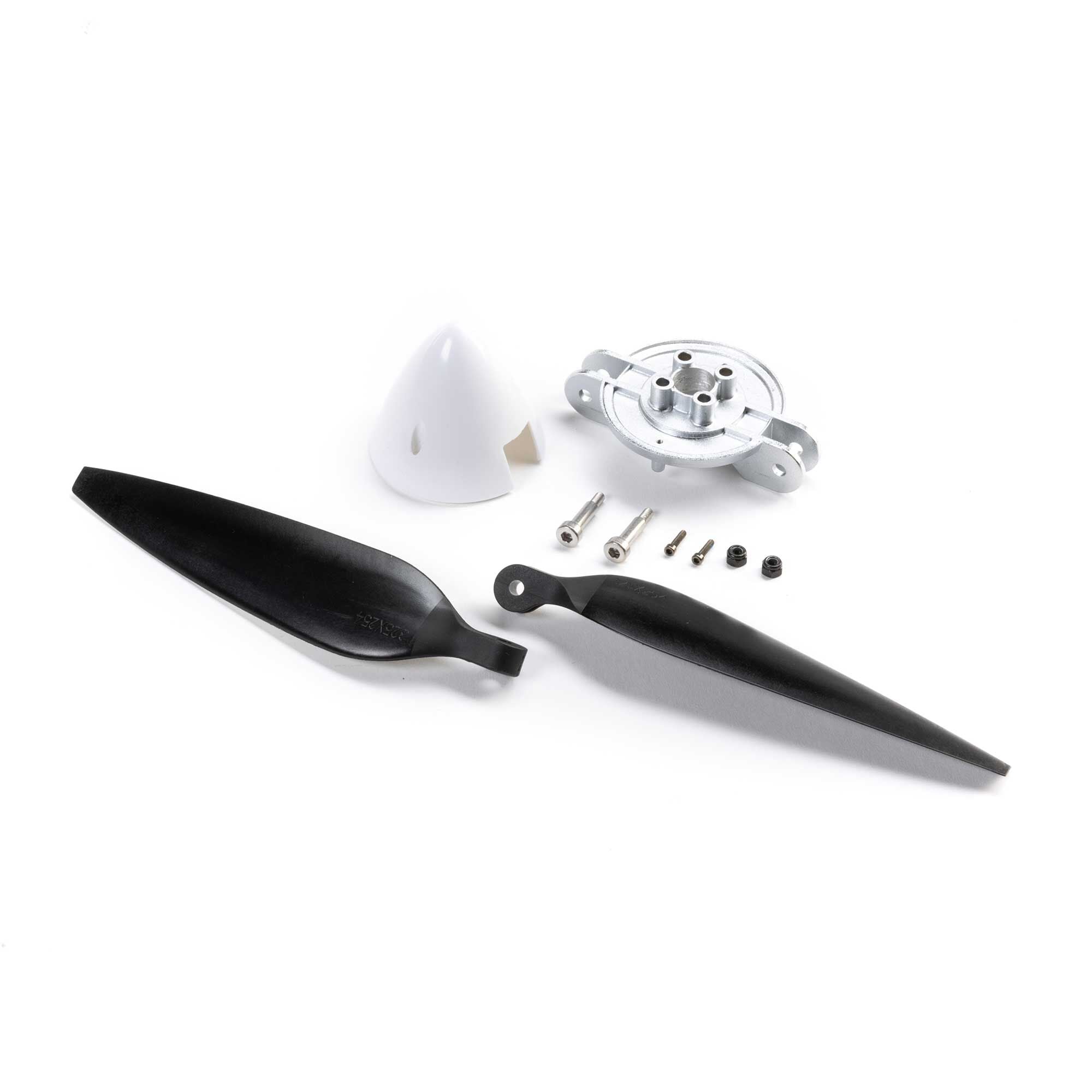

Conscendo 2.0m replacement spinner and yoke, with folding propeller blades. Spinner diameter is 51mm. Backplate/yoke attaches to motor with four M3 x 14mm button-head hex screws. Spinner cone screws are M2 x 8mm socket-head cap screws. Propeller size is 12.8 x 10 (325 x 254). The blade roots are 8mm thick, with an M4 bolt hole. Retaining bolts are 18mm long, 4mm diameter x 12mm long bearing surface, M3 threaded portion.
