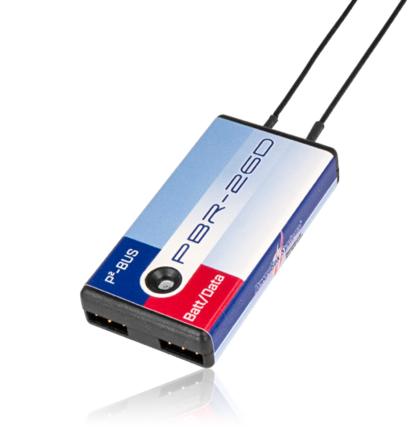

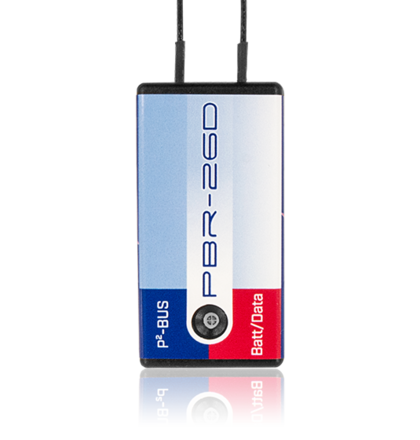

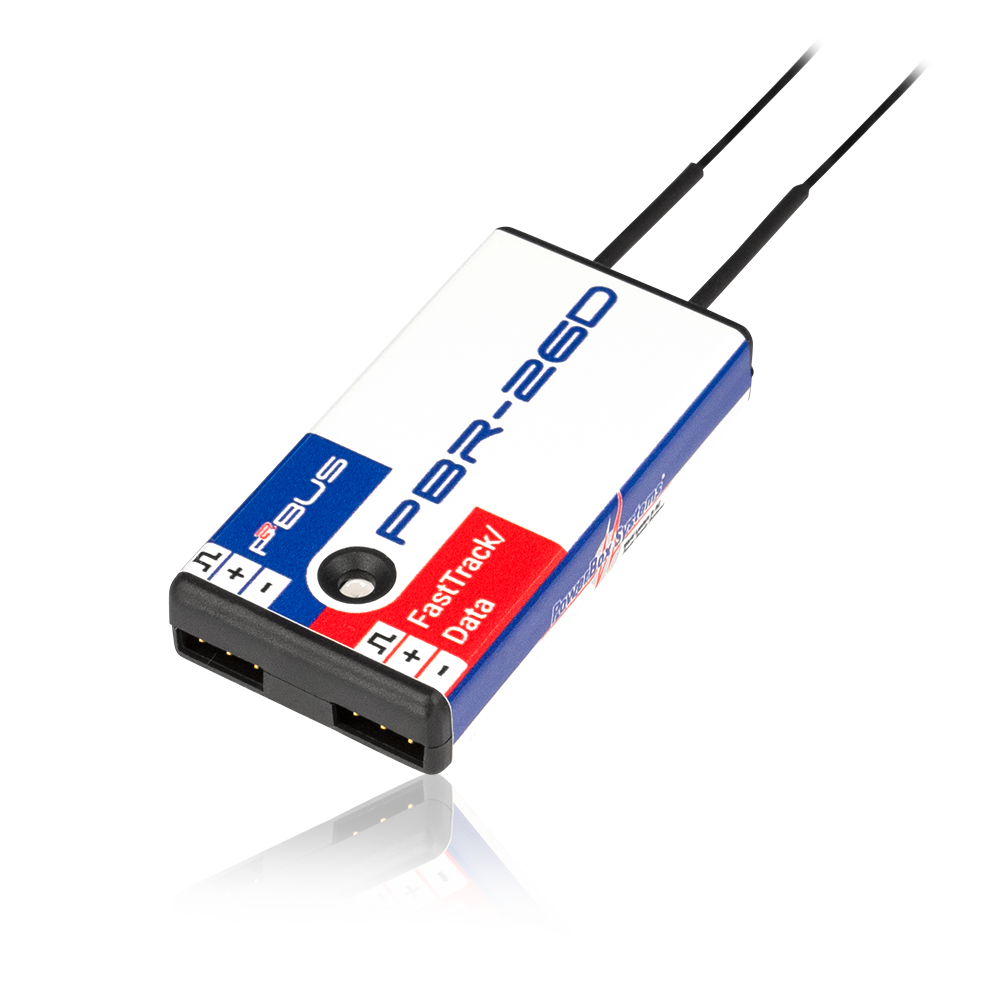

PowerBox PBR-26D 26 Channel 2.4GHz Receiver for the Core Radio System 8240 Idea for connecting to a Powerbox SRS Units.
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.
Features
- 26 Channel 2.4GHz Receiver
- Two independent redundant receiver circuits
- Extreme interference rejection
- Ultra-long range
- No servo outputs; intended as receiver unit for PowerBox or FBL systems
- Option of integral iGyro
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Click Here for the Manual
Technical Data
| Operating voltage |
4.0V - 9.0V |
| Supported RC systems |
CORE |
| Channels |
26 |
| Servo sockets |
26 |
| Servo signal resolution |
4096 Bit |
| Integral gyro system |
optional |
| Gyro sensor type |
MEMS |
| Number of sensor axes |
3 |
| Dimensions |
48 x 25 x 10 mm |
| Weight |
10g |
| Temperature range |
-30°C to +85°C |
