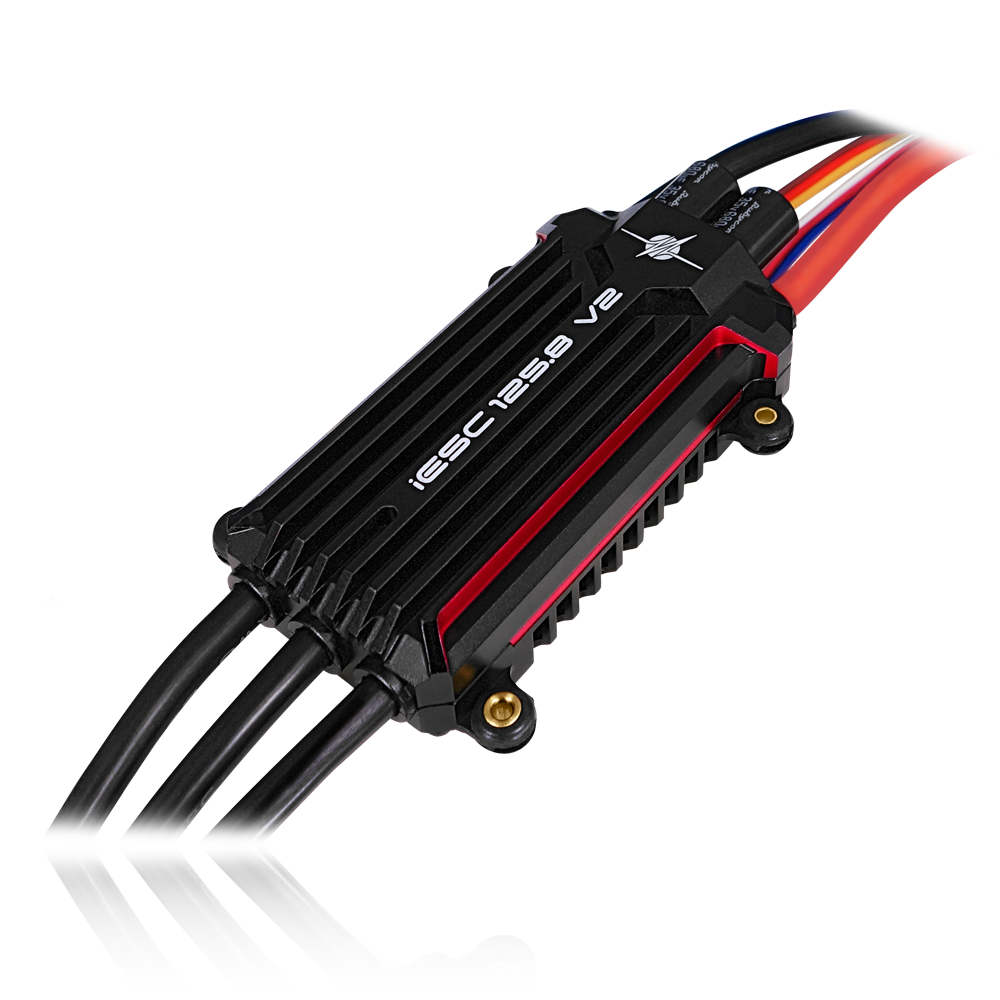

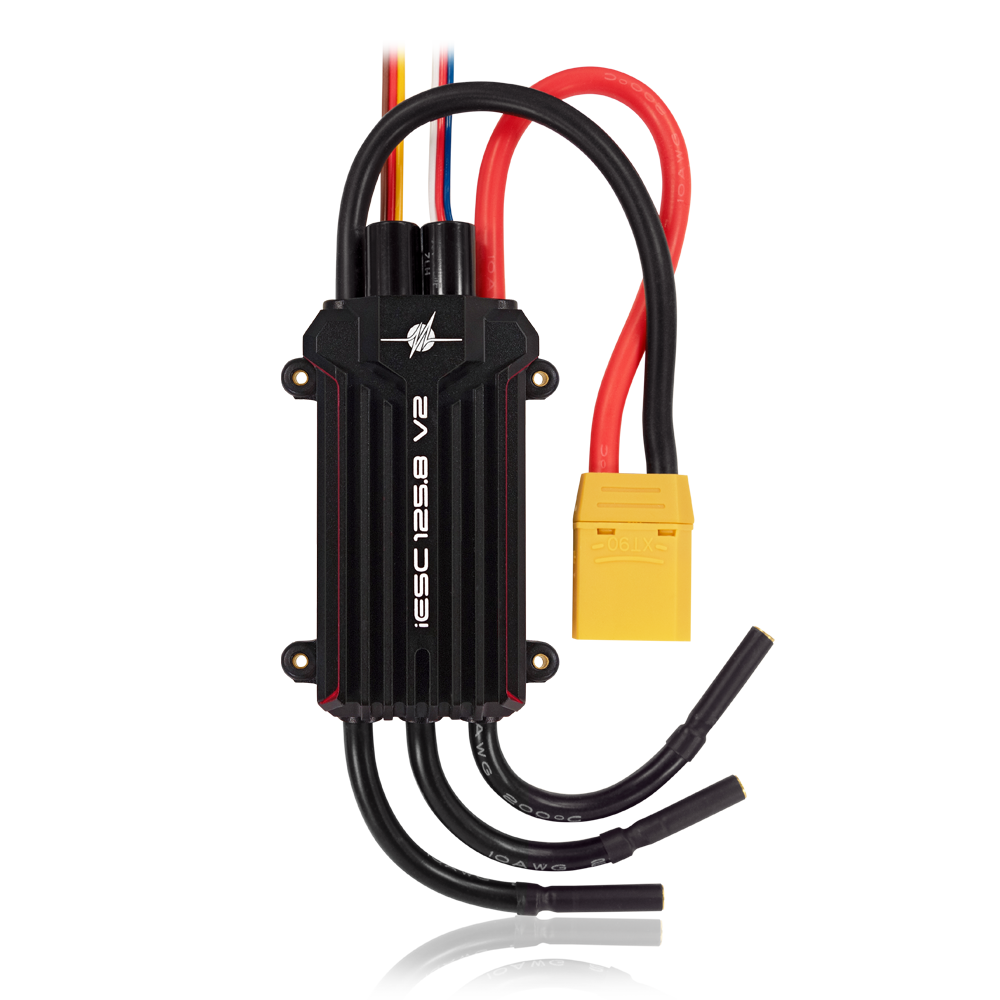

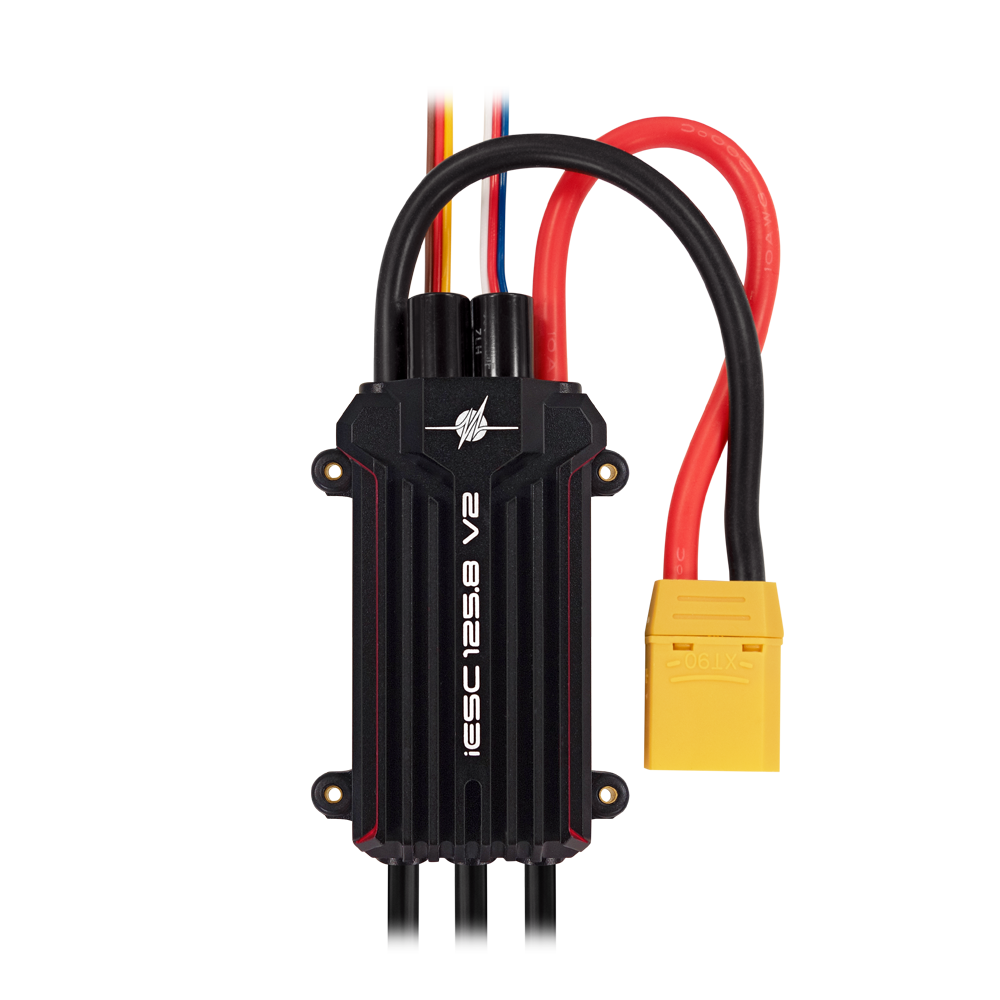

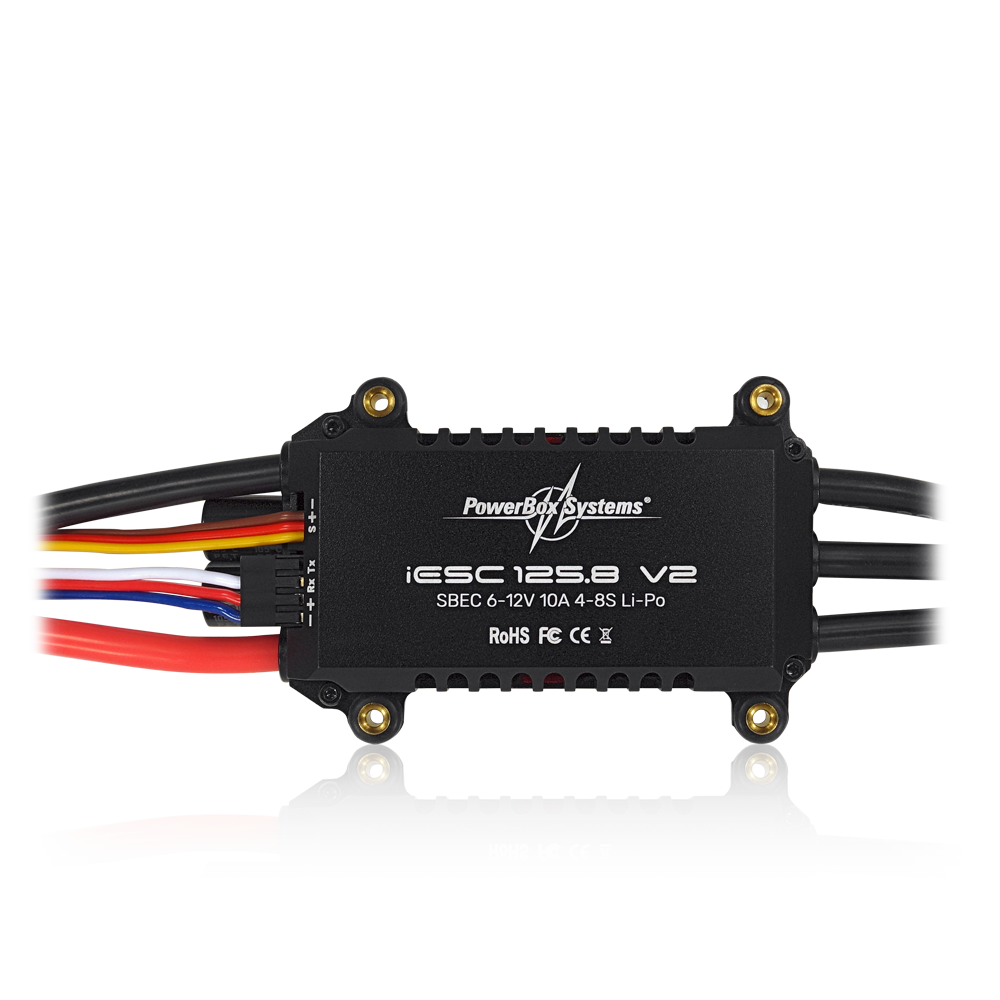

PowerBox iESC 125.8 V2 Brushless Speed Controller 5111
The iESC series is based on the latest generation of brushless motor controllers with 32-bit processor. Special functions - including telemetry, and direct parameter adjustment from the transmitter - make the iESC range stand out strongly from others on the market.
The new iESC 125.8 V2 is the upgraded version of our proven brushless ESC. The high-performance micro-processor ensures smooth running of brushless motors with up to 40 poles, while the sophisticated case design provides optimum cooling.
The telemetry system is automatically detected for PowerBox, Jeti and Futaba systems. All iESCs deliver comprehensive telemetry data including battery voltage, current, consumed capacity, rotational speed and the controller’s temperature.
Various parameters, including braking power, motor timing, direction of rotation, BEC output voltage, freewheel, helicopter mode and much more - can be set up directly from a PowerBox or Jeti transmitter.
Coded beep sequences and programming cards with jumpers are now a thing of the past.
A high-performance 10A BEC, which supplies power to the receiver via two 0.5mm² patch leads, rounds off the range of functions.
A buffer battery can be easily attached with the optional ESC-Backup ( Order No. 5117).
Features:
- + High-performance brushless speed controller with 32-bit technology
+ Latest generation of MosFets for reduced power loss and maximum reliability
+ Telemetry for PowerBox, Jeti and Futaba radio control systems
+ Fixed-wing and Helicopter modes
+ Adjustable direction of rotation, timing, battery type, freewheel, start-up current and other parameters
+ Setting for gear ratio
+ Adjustable regulatory parameters in helicopter mode
+ Parameters directly adjustable from PowerBox and Jeti transmitters
+ Parameters adjustable using the PowerBox Mobile Terminal for all systems
+ 10A BEC
+ Power-on self-test checks motor, throttle position and voltage
+ Ingenious case design ensures optimum cooling
Contents:
+ 1x iESC 125.8 V2
+ 1x patch lead
+ 4x rubber grommets and brass spacer sleeves
+ Instruction manual in German and English
