Pilot RC already surprised everyone with a new level of precision and agility with our extremely popular Laser. We have now taken all these great features and grown them into our new Slick.

The Pilot RC Slick, as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design, it once again flys as good as it looks, and that is really saying something!

All the crazy agility and manoeuvrability of the Laser, while keeping the friendly flying characteristics of Pilot RC planes, the new Slick offers an even further improvement in precision and aero musical performance, feeling like a larger plane, a larger plane that can go nuts!

Features
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings and SFG.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed aileron and elevator hinges (glued and pinned)

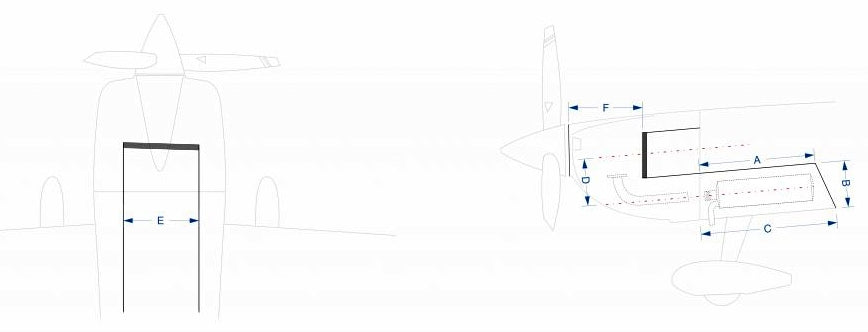

Easy canister installation due to open construction
Removable wings
One piece stabilizer
Laser engraved motor mounting position

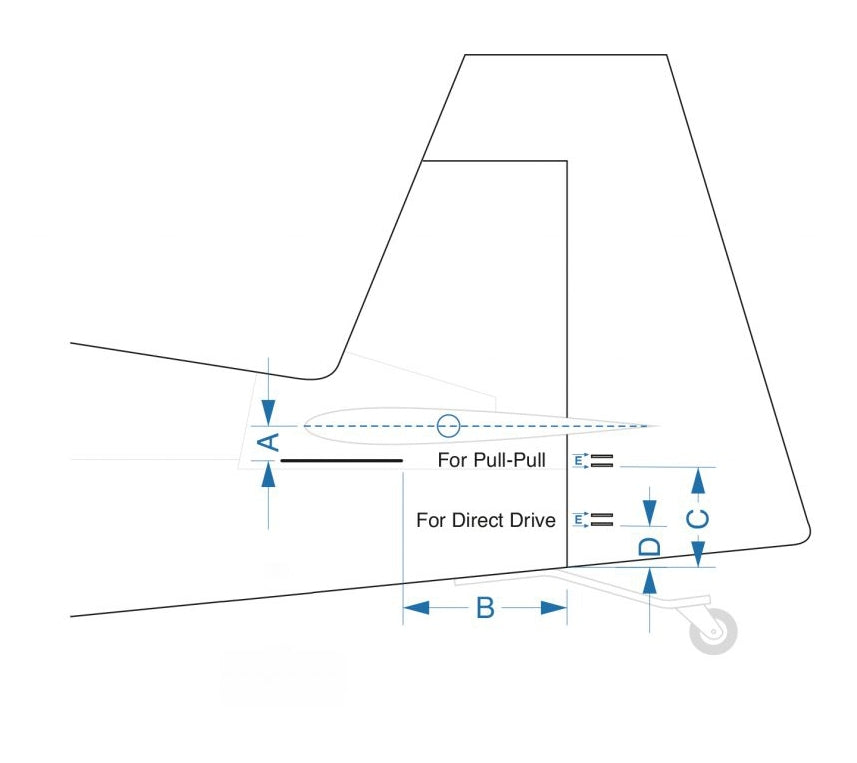

Pull-Pull system for Rudder servo

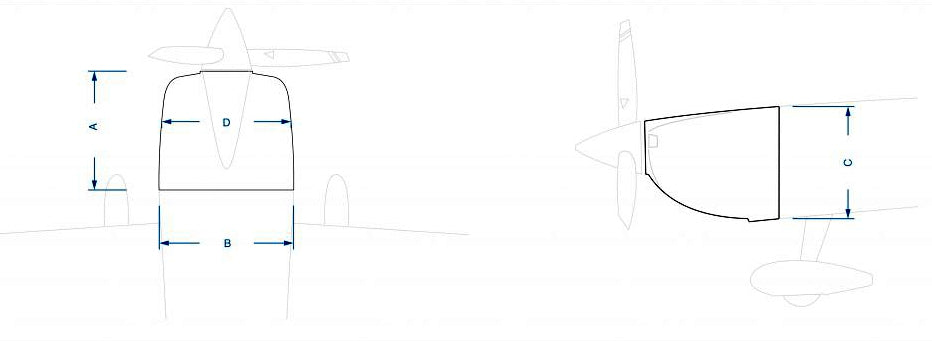

Cowl fits both gasoline and electric motors

Included Hardware
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner
Required Hardware
Motor: 30-40cc or equivalent electric
Servos: 4 high torque plus throttle // Uses x2 per aileron, x1 for elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Required Hardware:
Motor: 30-40cc or equivalent electric
Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Specifications
Model: Slick – 74in
Wingspan: 74in (1.88mm)
Length: 70.6in (1.79mm)
Wing area: 1,081sq in (6,978sq cm)
Weight: 11.4lbs (5.2kg)

Servo Extension Lengths

• Throttle: No extension required
• Each aileron: 15cm (to reach receiver direct)
• Elevator: 67cm
• Rudder: Pull Pull, no required extension)



Centre of Gravity

136mm - Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.



Our Order Code	Colour Scheme No	Oracover Covering No	Ultracote Covering No
PIL661	Slick 01 (Red/Yellow/Black)	21-023 21-033 21-091 21- 071	HANU866 HANU872 HANU881 HANU874
PIL662	Slick 02 (Blue/Green)	21-053 21-019	HANU875 HANU905
